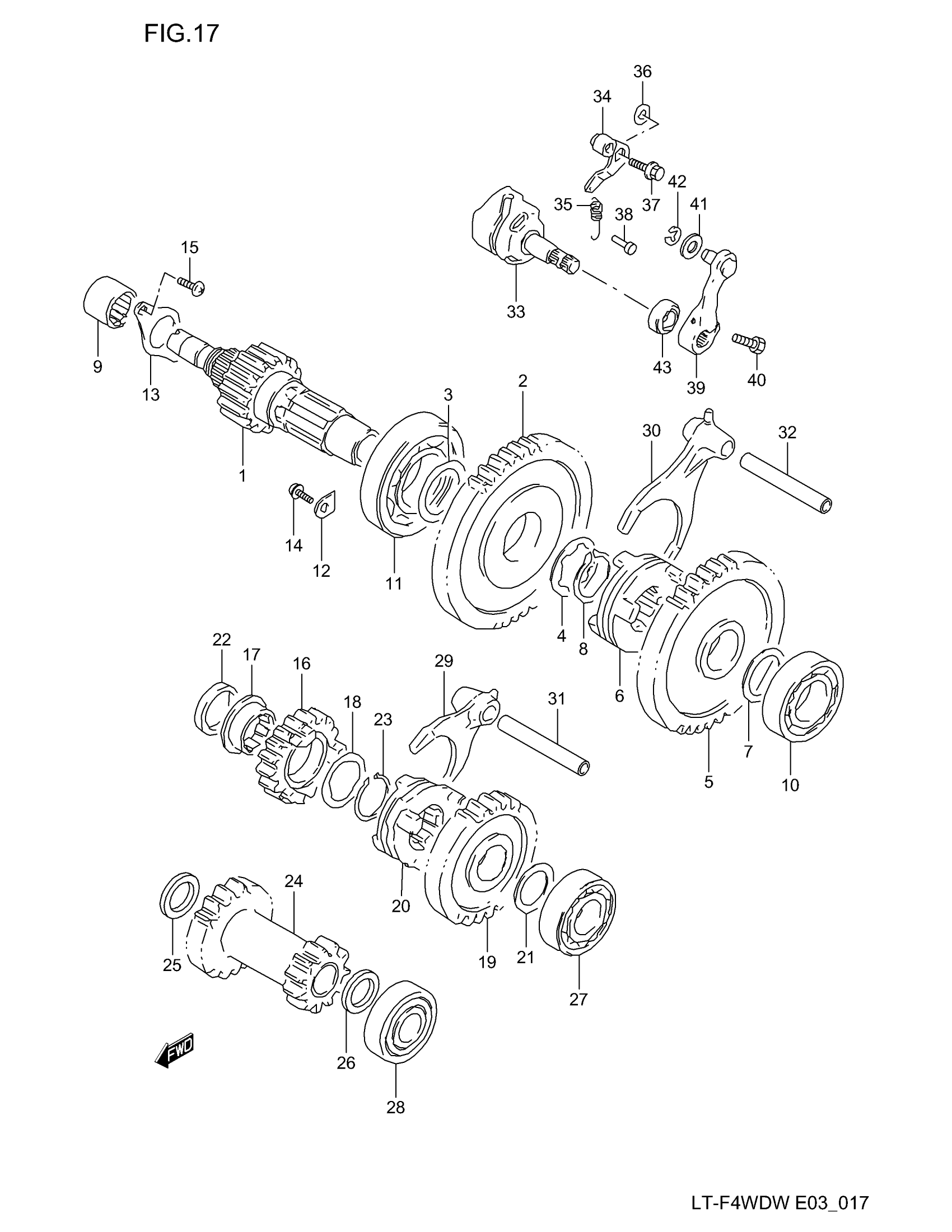

Suzuki LT-F4WD (1998) TRANSMISSION (2) Diagram

#

Description
Price

1

SHAFT, SUB TRANSMISSION This part replaces 29121-19B01.

29121-19B10

Unavailable

2

GEAR, DRIVEN NO.1 (NT:43)

29311-19B01

Unavailable

3

WASHER, RH

08211-32441

$4.00

4

WASHER, LH

09167-32002

$4.68

5

GEAR, DRIVEN NO.2 (NT:37)

29320-19B00

$185.15

6

DOG, DRIVEN GEAR

29331-19B00

Unavailable

7

WASHER

08211-25351

$3.72

8

CIRCLIP This part replaces 08331-31326.

08331-3132A

Unavailable

9

BEARING, RH

09263-18023

Unavailable

10

BEARING, LH

09262-25003

$24.83

11

BEARING, MIDDLE

09262-35038

$46.10

12

RETAINER

24741-21A00

$2.81

13

RETAINER

24751-19B00

Unavailable

14

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

15

SCREW This part replaces 02112-06163.

02112-0616A

$1.49

16

GEAR, DRIVE NO.1 (NT:18) This part replaces 29211-19B00.

29211-19B01

$86.90

17

BUSH This part replaces 29215-19B00.

29215-19B01

$34.10

18

WASHER

09167-25016

$3.72

19

GEAR, DRIVE NO.2 (NT:25)

29220-19B00

$108.15

20

DOG, DRIVE GEAR

29231-19B00

Unavailable

21

WASHER | MODEL V

08211-20301

$2.35

21

WASHER (20X30X1.0) | MODEL W

09181-20195

$2.60

22

SPACER (25X34X5.5)

09180-25083

$14.18

23

SNAP RING

09380-25003

$3.04

24

GEAR, IDLE (NT:17/11) | MODEL V

29150-19B10

$180.18

24

GEAR, IDLE (NT:17/11) | MODEL W This part replaces 29150-19B02.

29150-19B10

$180.18

25

WASHER (17X24X4.5)

09180-17076

$9.58

26

WASHER, SUB T/M IDLE, LH | MODEL V This part replaces 08211-15261.

09181-15195

$2.57

26

WASHER (15X26X1.0) | MODEL W

09181-15195

$2.57

27

BEARING, DRIVE SHAFT LH

09262-20069

$23.28

28

BEARING This part replaces 09262-15022.

09262-15062

$18.30

29

FORK, NO.1

29511-19B00

Unavailable

30

FORK, NO.2

29521-19B00

Unavailable

31

SHAFT, NO.1 This part replaces 25421-35403.

25421-35410

$23.47

32

SHAFT, NO.2

25421-04702

Unavailable

33

CAM, SUB TRANSMISSION GEAR

29610-19B10

$64.68

34

STOPPER

29630-19B00

$12.80

35

SPRING

09443-09042

$5.04

36

WASHER

08211-06141

$1.59

37

BOLT

09111-06054

$3.70

38

PIN

09223-04001

$1.68

39

ARM

25360-19B70

$66.40

40

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

41

WASHER

08322-01087

$2.13

42

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

43

OIL SEAL (12X22X9)

09285-12006

$6.32
