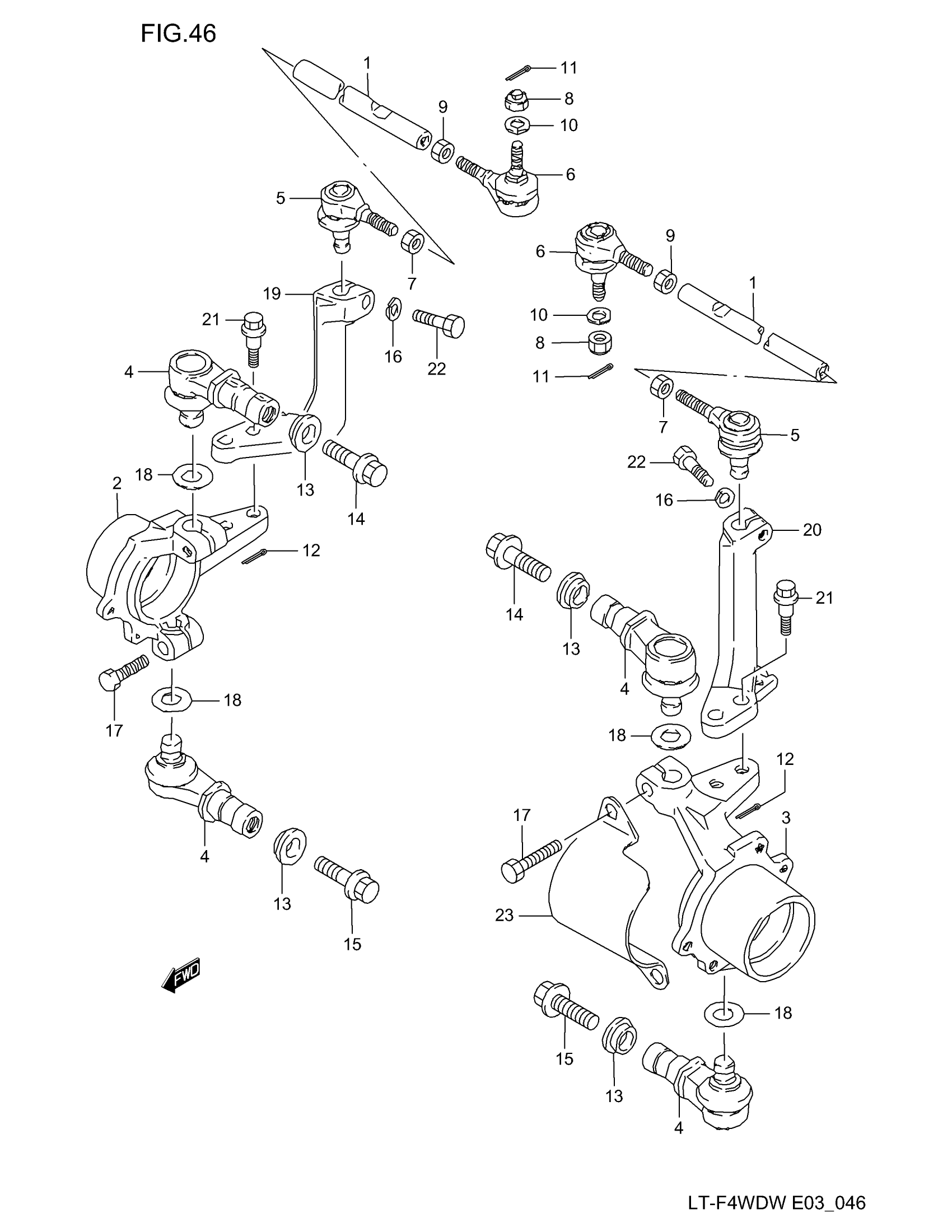

Suzuki LT-F4WD (1998) TIE ROD Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-19B00

Unavailable

2

KNUCKLE, STEERING RH

51231-19B01

Unavailable

3

KNUCKLE, STEERING LH

51241-19B01

Unavailable

4

END,KNUCKLE STE This part replaces 51220-19A01.

51220-19A03

$106.62

5

ROD END, RH THREAD

51260-19B02

$69.35

6

ROD, END LH This part replaces 51270-41B01.

51270-38F10

$81.22

7

NUT, TIE ROD RH THREAD

09140-10043

$2.68

8

NUT, ROD END

09159-10027

$3.10

9

NUT, TIE ROD LH THREAD

09140-10027

$1.49

10

LOCK WASHER, ROD END

09162-10008

$3.04

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

12

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

13

STOPPER, KNUCKLE END BOLT

52418-24500

$8.83

14

BOLT, KNUCKLE END UPPER (14X38)

09103-14009

$14.73

15

BOLT, KNUCKLE END LOWER (14X30)

09103-14008

$8.85

16

LOCK WASHER This part replaces 08321-01103.

08321-0110A

$1.84

17

BOLT, KNUCKLE (10X32)

09100-10225

$4.02

18

WASHER, KNUCKLE END LOWER

09160-14060

$2.85

19

ARM, KNUCKLE STEERING RH

51232-19B01

Unavailable

20

ARM, KNUCKLE STEERING LH

51242-19B01

Unavailable

21

BOLT, ARM KNUCKLE STEERING (10X37)

09111-10040

$9.68

22

BOLT, ARM KNUCKLE TIE-ROD END (10X29)

09100-10262

$2.81

23

PROTECTOR, DRIVE SHAFT RH

54903-19B10

Unavailable

23

PROTECTOR, DRIVE SHAFT LH

54904-19B10

Unavailable
