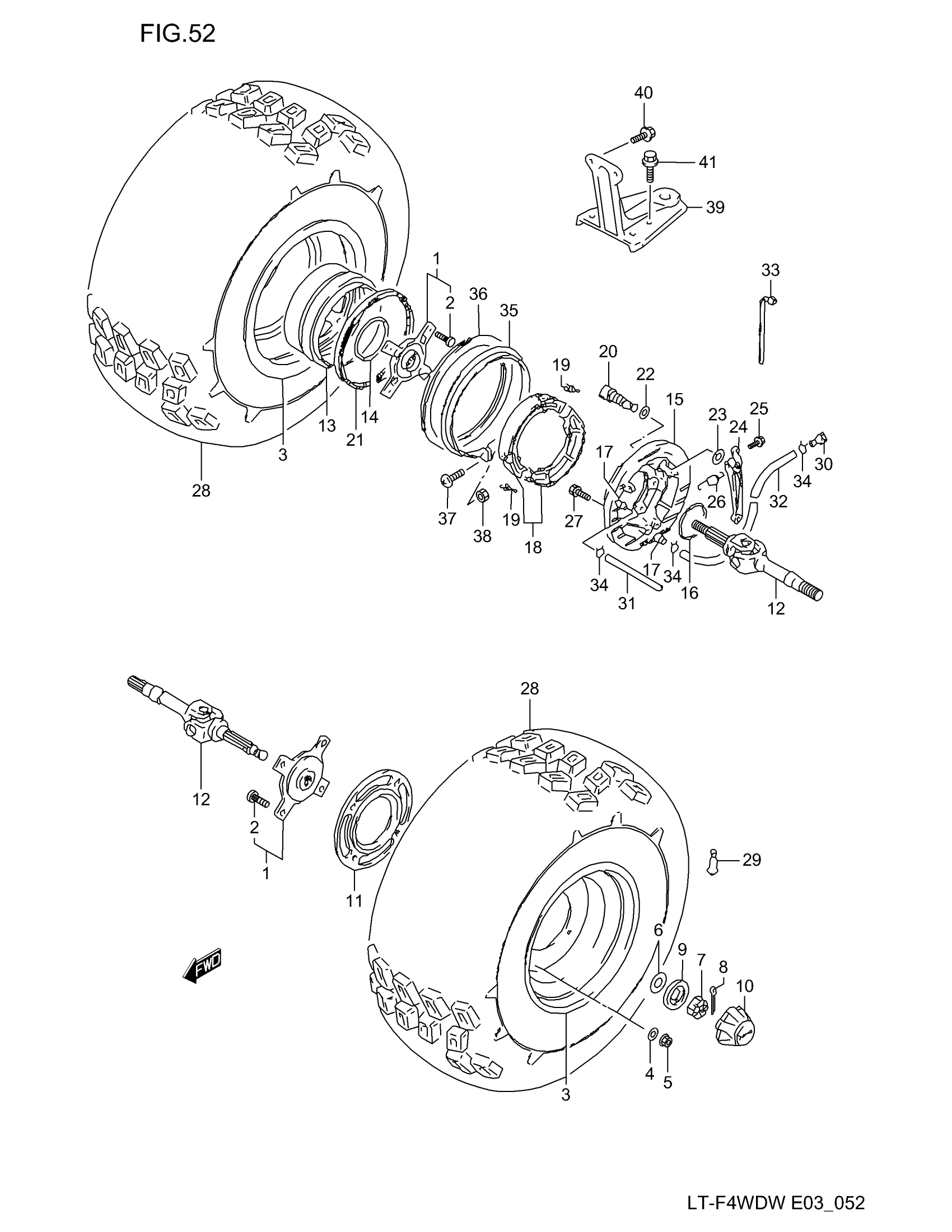

Suzuki LT-F4WD (1998) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL | Includes Item(s) 2

64110-19B11

Unavailable

2

BOLT This part replaces 09119-10045.

09119-10045-XC0

$2.38

3

RIM, REAR WHEEL (SILVER) | MODEL V

65310-19B11-12R

Unavailable

3

RIM, REAR WHEEL (SILVER) | MODEL W

65310-19B11-13L

Unavailable

4

WASHER,10.5X22X This part replaces 09160-10119.

09160-10143

$2.34

5

NUT This part replaces 08316-10103.

08316-1010B

$2.66

6

WASHER

09164-18004

$3.76

7

NUT, HUB

09141-18008

$8.37

8

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

9

HOLDER, CAP

64726-19B00

$3.31

10

CAP, WHEEL CENTER

54725-39D00

$14.76

11

SPACER, HUB LH

64113-19B10

Unavailable

12

AXLE, REAR

64710-19B10

$468.90

13

DRUM, BRAKE

64120-19B00

Unavailable

14

O RING, DRUM (ID:79.8,DD:2.40)

09280-80001

$3.89

15

PANEL, BRAKE ANCHOR

64210-19B02

Unavailable

16

O RING, PANEL (ID:69.5,DD:2.00)

09280-70010

$3.72

17

UNION

09364-12002

Unavailable

18

SHOE SET, BRAKE

64400-19820

Unavailable

19

SPRING, SHOE

55420-30000

$4.48

20

CAM, REAR BRAKE

64440-19B00

Unavailable

21

DUST SEAL, DRUM

64124-19B00

Unavailable

22

O RING

64443-18A00

$1.98

23

WASHER

09160-16003

$2.92

24

LEVER, CAM

64451-19B01

Unavailable

25

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

26

SPRING This part replaces 09443-13022.

09443-13022-XC0

Unavailable

27

BOLT, BRACE This part replaces 01570-08203.

01570-0820A

$3.15

28

TIRE, T/L REAR (AT25X12-10) (DUNLOP)

65100-19B60

Unavailable

29

VALVE ASSY, WHEEL RIM TR413 | ?43130-75150

43130-78030

$9.25

30

PLUG, DRAIN HOSE

13877-00190

$5.32

31

HOSE,11X15X2000 | L:2000!990 This part replaces 09352-11153-00B.

09352-11154-00B

$48.35

32

HOSE | L:600!230 This part replaces 09352-11153-600.

09352-11154-600

$13.05

33

CLAMP, BREATHER HOSE (L:125)

09407-14403

$2.26

34

CLIP, HOSE

09401-14301

$2.35

35

BRACKET, BRAKE COVER

64260-19B00

Unavailable

36

COVER, REAR BRAKE

64265-19B00

Unavailable

37

SCREW This part replaces 02112-04163.

02112-0416A

$1.49

38

NUT This part replaces 08310-00043.

08310-0004A

$2.30

39

PLATE, TRLR TOW

95210-20B00

Unavailable

40

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

41

BOLT, PROP SHAFT REAR This part replaces 01550-10203.

01550-1020A

$3.05
