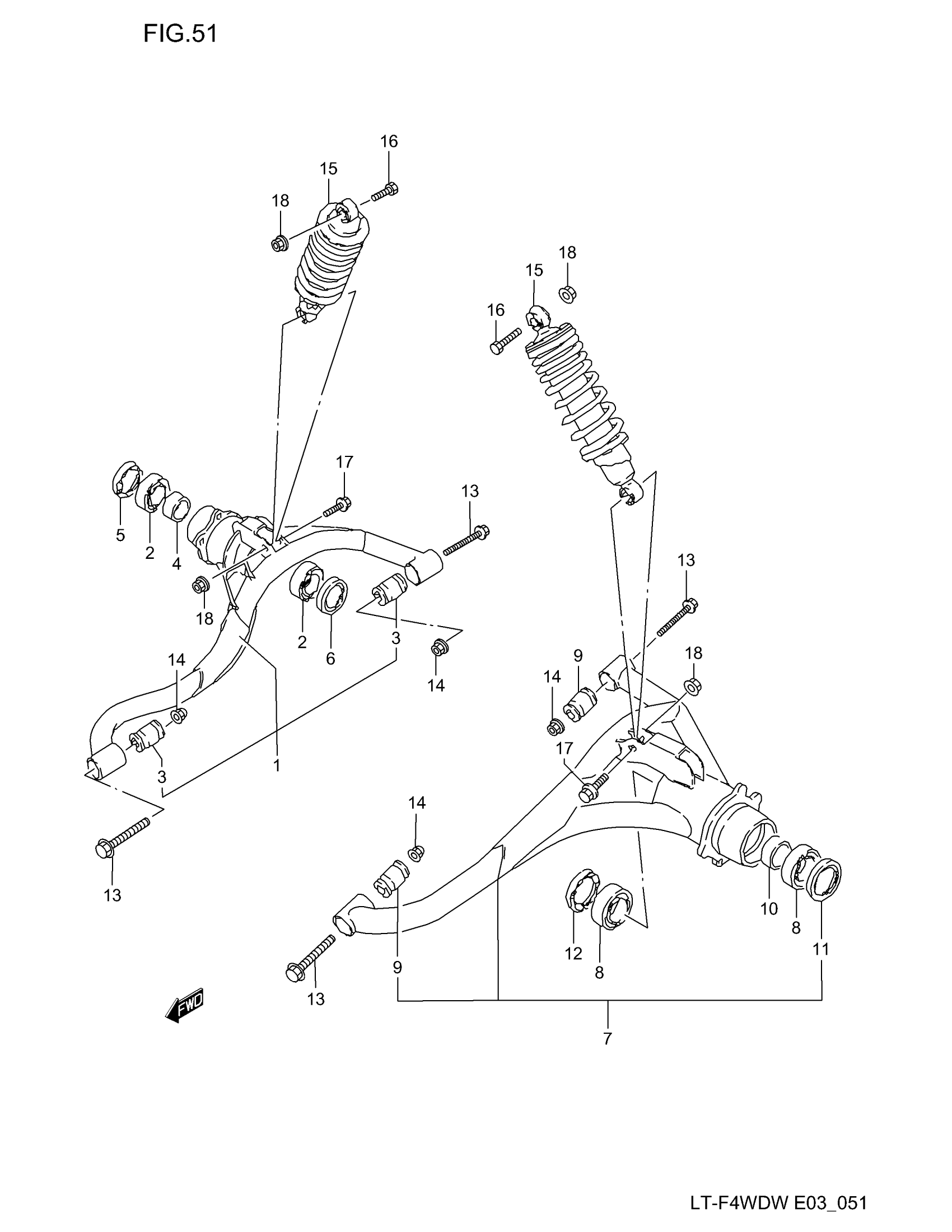

Suzuki LT-F4WD (1998) REAR SUSPENSION ARM Diagram

#

Description
Price

1

ARM SET, SUSPENSION RH (BLACK) | Includes Item(s) 2 - 6

61100-19860-019

Unavailable

2

BEARING,DRIVEN This part replaces 09262-32008.

09262-32023

$31.25

3

BUSHING

09319-10030

$11.61

4

SPACER (32.4X38X17)

09180-32007

$19.60

5

SEAL, DUST OUTER (40X58X6)

09283-40018

$14.74

6

SEAL, DUST INNER (40X58X8)

09283-40019

$16.81

7

ARM SET, SUSPENSION LH (BLACK) | Includes Item(s) 8 - 12

61100-19871-019

Unavailable

8

BEARING,DRIVEN This part replaces 09262-32008.

09262-32023

$31.25

9

BUSHING

09319-10030

$11.61

10

SPACER (32.4X38X17)

09180-32007

$19.60

11

SEAL, DUST OUTER (40X58X6)

09283-40018

$14.74

12

SEAL, DUST INNER (40X58X8)

09283-40019

$16.81

13

BOLT,10X77 This part replaces 09103-10247.

09103-10247-XC0

$6.02

14

NUT | MODEL V This part replaces 08319-31105.

08319-3110A

$2.73

14

NUT | MODEL W This part replaces 08319-31106.

08319-31107

$2.73

15

ABSORBER ASSY, REAR SHOCK (BLACK) This part replaces 62100-19B10-019.

62100-19B20-019

Unavailable

16

BOLT, UPPER (10X38)

09100-10227

$3.50

17

BOLT, LOWER (10X37)

09103-10019

$2.63

18

NUT | MODEL V

08319-31107

$2.73

18

NUT | MODEL W This part replaces 08319-31106.

08319-31107

$2.73
