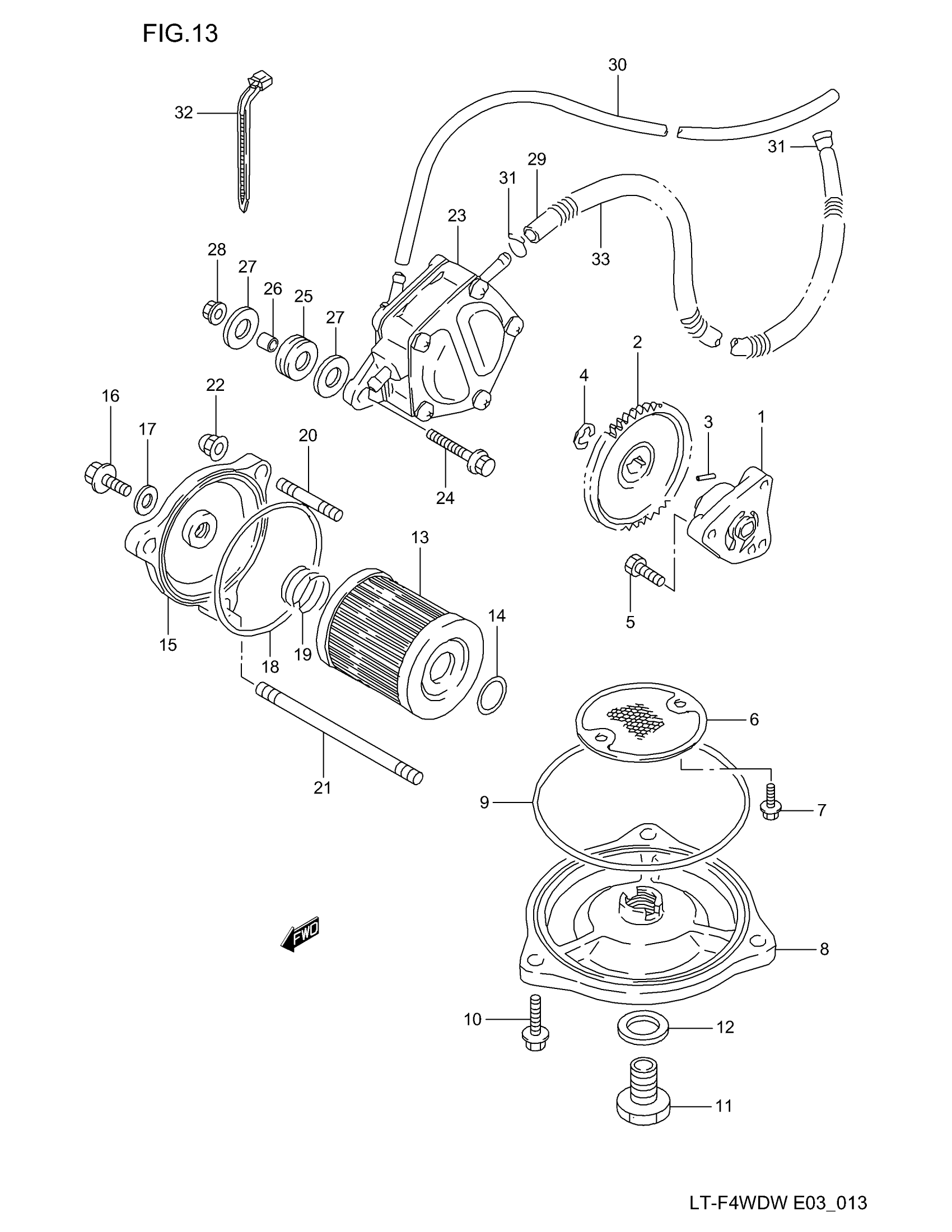

Suzuki LT-F4WD (1998) OIL PUMP - FUEL PUMP Diagram

PUMP, ENGINE OIL

16400-19B00

$169.35

GEAR, DRIVEN (NT:47)

16331-20B00

$85.15

PIN

09261-02008

$1.65

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

SCREW This part replaces 02112-06203.

02112-0620A

$1.49

STRAINER, ENGINE OIL

16520-05202

$5.80

SCREW This part replaces 02112-75123.

02112-7512A

$2.42

CAP, OIL STRAINER

16523-38200

$27.85

O RING (D:2.4,ID:82)

09280-82001

$5.18

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

GASKET (13.8X18.8X0.4)

09168-14002

$2.26

FILTER ASSY, ENG OIL

16510-25C00

$7.80

O RING (D:1.9,ID:13)

09280-13004

$2.17

CAP, OIL FILTER

16512-22A00

$25.60

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

GASKET

09168-08015

$2.79

O RING (D:2.4,ID:52.6)

09280-54001

$3.76

SPRING | MODEL V This part replaces 48281-85000.

09440-18002

$1.49

SPRING | MODEL W

09440-18002

$1.49

BOLT,STUD This part replaces 01421-06168.

01421-0616A

$1.91

STUD 6 X 75 This part replaces 01421-06758.

01421-0675A

$3.38

NUT This part replaces 08313-10063.

08313-1006A

$1.84

PUMP ASSY,FUEL | MODEL V This part replaces 15100-19B10.

15100-19B11

$88.92

PUMP ASSY,FUEL | MODEL W This part replaces 15100-19B01.

15100-19B02

$85.97

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

SPACER (6.1X9X7.5)

09180-06038

$1.98

WASHER (6.5X20X1.2) | MODEL V This part replaces 09160-06027.

09160-06077

$1.91

WASHER (6.5X20X1.2) | MODEL W

09160-06077

$1.91

NUT This part replaces 08316-10063.

08316-1006B

$2.50

HOSE, FUEL | L:2000!750

09352-60103-00B

$39.52

HOSE(4X7X2000) | L:2000!730 This part replaces 09359-40701-00B.

09359-40703-00B

Unavailable

CLIP

09401-10401

$1.49

CLAMP (L:235)

09407-25401

$4.66

SPRING

09440-13042

$7.84
