1998 Suzuki LT-F4WD Headlamp Diagram

← All diagrams

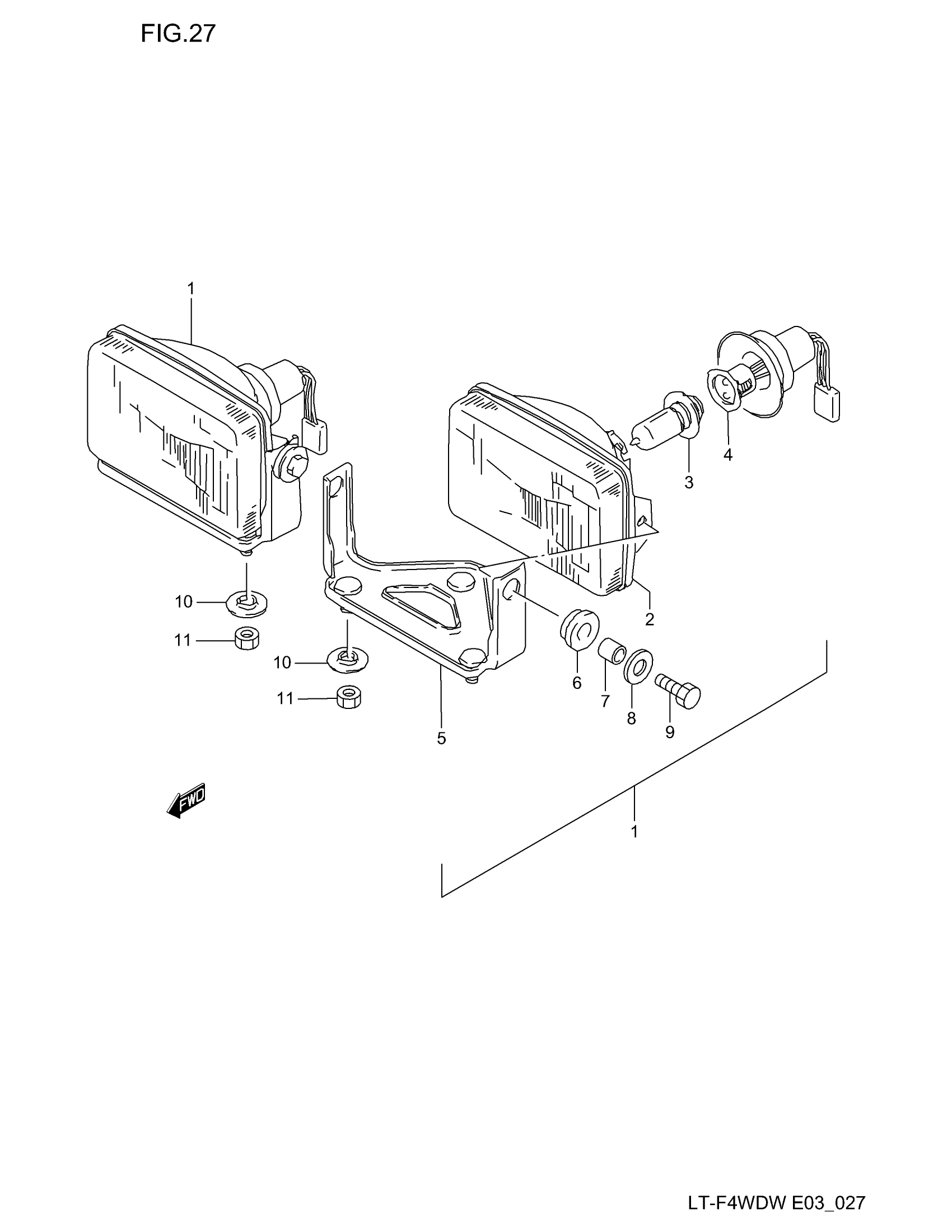

Find the part on the Headlamp diagram for your 1998 Suzuki LT-F4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Suzuki LT-F4WD Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY | Includes Item(s) 2 - 9

35100-19B03

2
Out of stock

2

UNIT, LAMP

35121-19B00

2
Out of stock

3

BULB (12V,30/30W)

09471-12093

2
Out of stock

4

SOCKET

35171-19B03

2
Out of stock

5

BRACKET, LAMP

35141-19B00

2
Out of stock

6

CUSHION

35139-45230

4
Out of stock

7

SPACER

35133-19B00

4
Out of stock

8

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

4
Out of stock

9

BOLT

09100-06067

4
Out of stock

10

6

$2.35

In stock

11

NUT This part replaces 08310-00063.

08310-0006A

6
Out of stock
