1998 Suzuki LT-F4WD Backup Lamp Diagram

← All diagrams

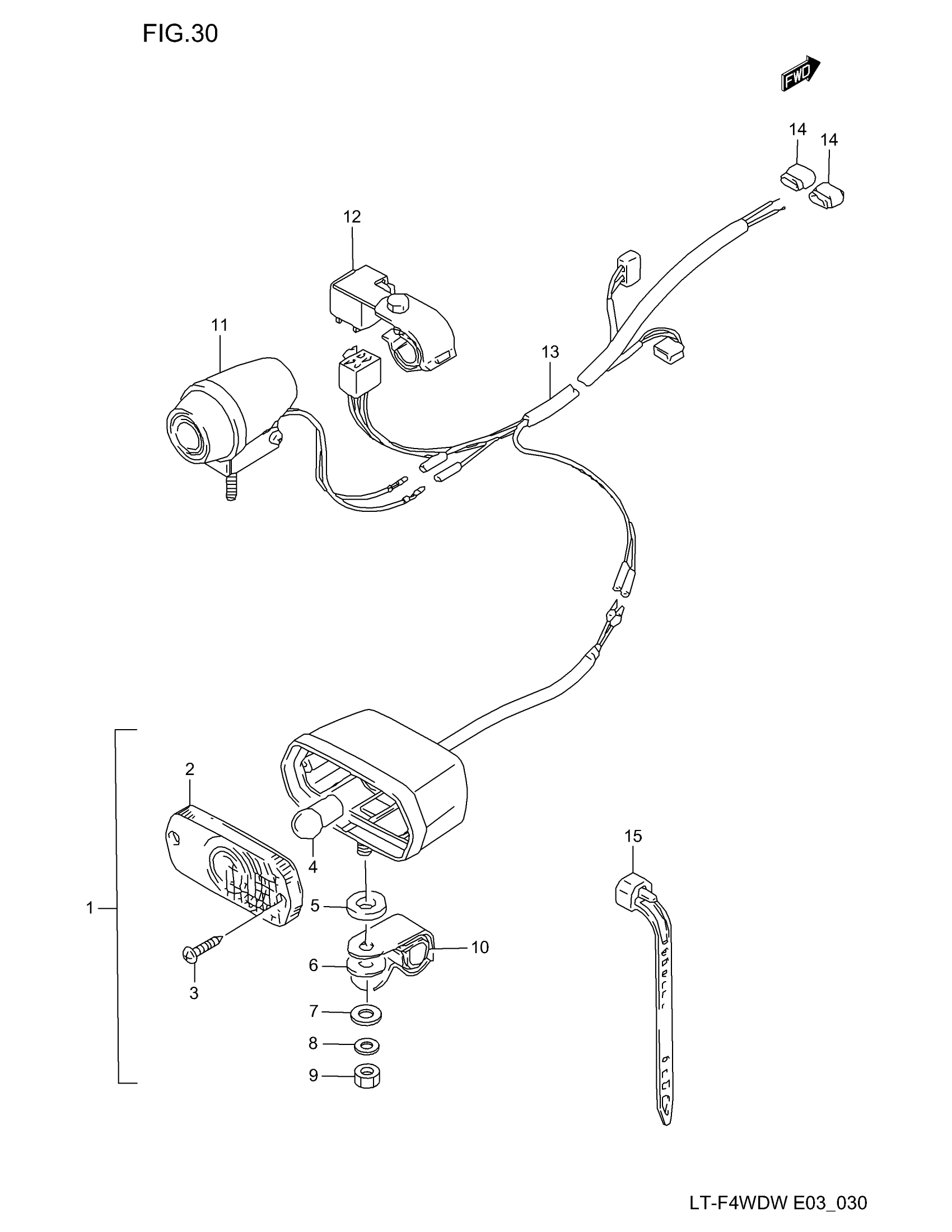

Find the part on the Backup Lamp diagram for your 1998 Suzuki LT-F4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Suzuki LT-F4WD Backup Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

BACKUP LAMP & BUZZER SET | Includes Item(s) 1 - 15

38700-19860

1
Out of stock

1

LAMP ASSY, BACKUP

36250-19B00

1
Out of stock

2

LENS

36252-19B00

1
Out of stock

3

SCREW | MODEL V

36263-19B00

2
Out of stock

3

SCREW | MODEL W

03512-04209

2
Out of stock

4

BULB,12V10W This part replaces 09471-12003.

09471-12142

1
Out of stock

5

CUSHION, NO.1

35694-19B00

1
Out of stock

6

CUSHION, NO.2

35695-19B00

1
Out of stock

7

WASHER

08322-01087

1
Out of stock

8

.LOCK WASHER

08321-01087

1

$2.28

In stock

9

NUT

08310-00087

1

$1.93

In stock

10

SPACER

36293-19B00

2
Out of stock

11

BUZZER ASSY, BACKUP

38751-19B00

1
Out of stock

12

RELAY ASSY, BACKUP

38752-19B00

1
Out of stock

13

LEAD WIRE

36856-19B00

1

$46.98

In stock

14

CONNECTOR

36859-36590

2

$5.35

In stock

15

CLAMP (L:125)

09407-14403

3
Out of stock
