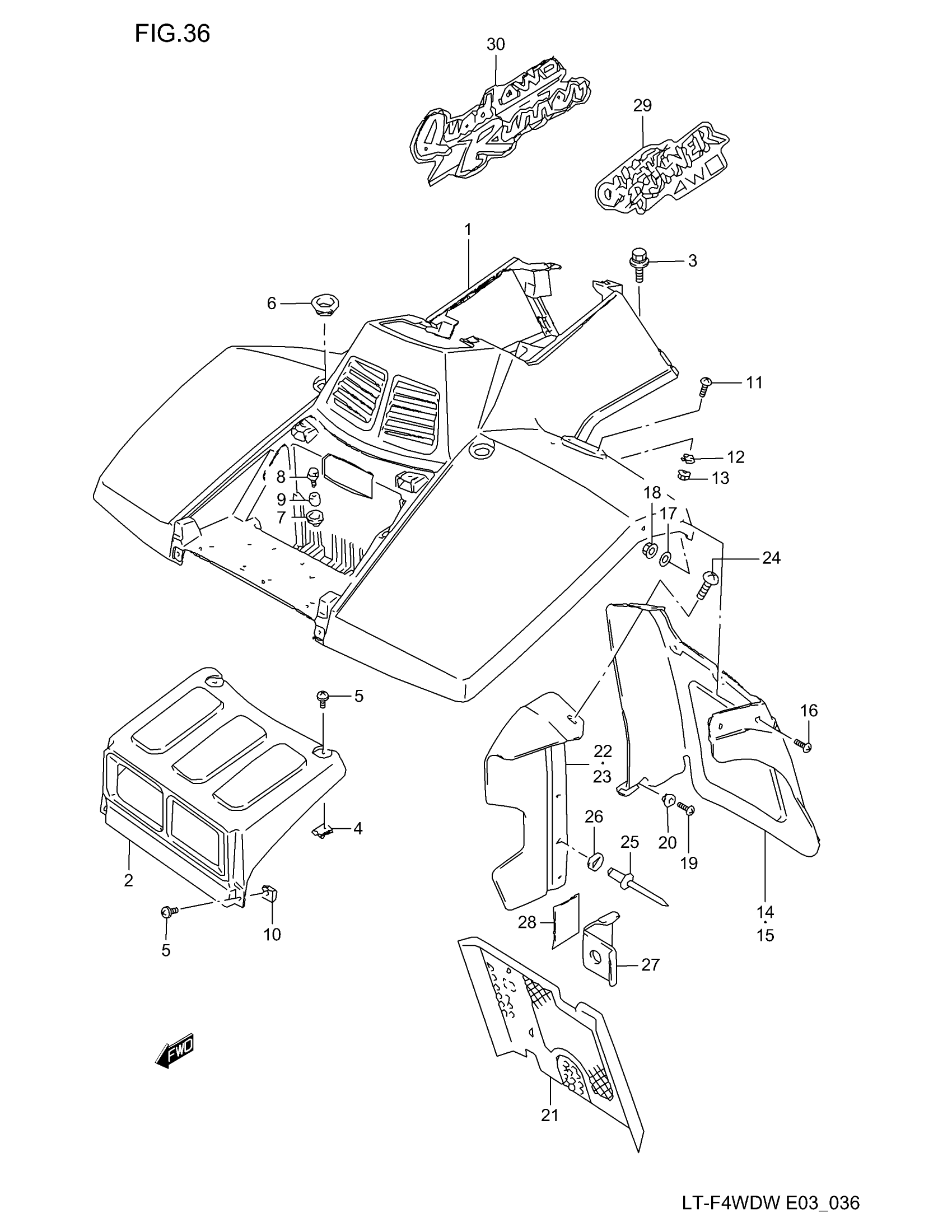

Suzuki LT-F4WD (1998) FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT (GREEN) | MODEL V

53111-19B00-1AT

Unavailable

1

FENDER, FRONT (BEIGE) | MODEL W

53111-19B00-Y5G

Unavailable

2

FENDER, CENTER

53118-19B00

$55.88

3

BOLT, FENDER REAR (6X14)

09118-06019

$2.92

4

NUT

53141-19A00

$4.34

5

SCREW This part replaces 09136-06062.

09136-06017

$2.59

6

GROMMET This part replaces 09308-25003.

09308-25005

$3.88

7

CUSHION, FRONT FENDER FRONT

09320-11008

$2.60

8

BOLT, FRONT FENDER FRONT

09116-06025

$2.44

9

SPACER

09180-06120

$2.32

10

NUT

53141-19A00

$4.34

11

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

12

WASHER

09169-06016

$1.65

13

NUT

09159-06078

$2.62

14

MUD FLAP, FENDER RH

53311-19B05

Unavailable

15

MUD FLAP, FENDER LH

53312-19B05

Unavailable

16

SCREW

09139-05038

$2.06

17

WASHER (5.5X20X1.4) | MODEL V This part replaces 09160-05039.

09160-05046

$1.92

17

WASHER | MODEL W

09160-05046

$1.92

18

NUT This part replaces 09159-05026.

09159-05043

$2.22

19

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

20

WASHER, INNER

09169-06010

$2.60

21

GUARD, MUFFLER FRONT

53310-20B12

$91.95

22

MUD FLAP, INNER RH

53411-19B01

Unavailable

23

MUD FLAP, INNER LH

53421-19B01

Unavailable

24

SCREW

09139-05037

$2.06

25

RIVET This part replaces 09229-03023.

09229-03023-XC0

Unavailable

26

WASHER

09160-03008

Unavailable

27

PLATE, INNER MUD FLAP

53421-20B00

Unavailable

28

CUSHION,FR This part replaces 53145-19C00.

46312-31D11

$5.02

29

EMBLEM, FRONT FENDER | MODEL V

68151-19BD0-G2G

Unavailable

30

EMBLEM, FRONT FENDER | MODEL W

68151-19BE0-Y5N

Unavailable
