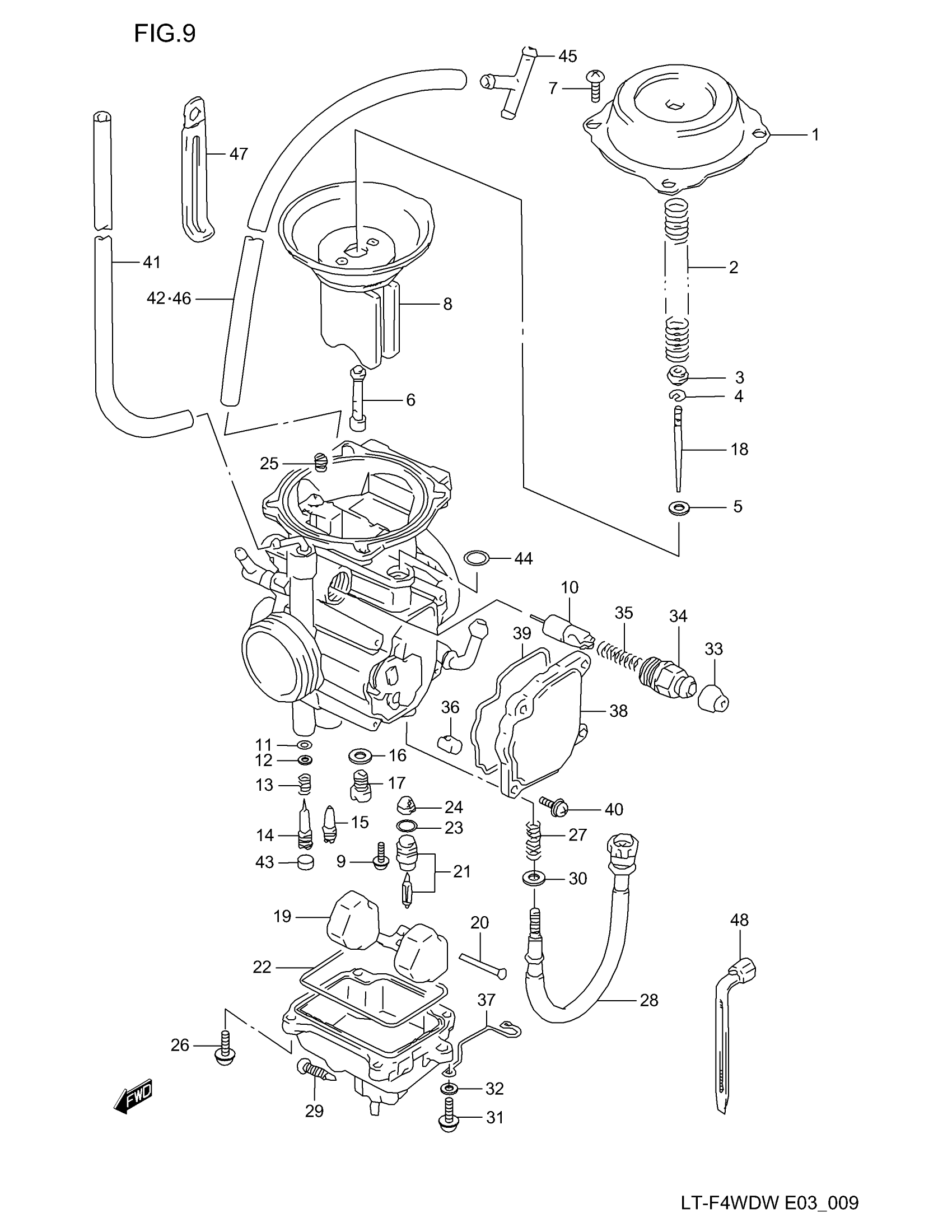

Suzuki LT-F4WD (1998) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | E3 This part replaces 13200-19BA1.

13200-19BA3

Unavailable

NO DESCRIPTION AVAILABLE | MODEL V E33 This part replaces 13200-19BD0.

13200-19BD1

Unavailable

NO DESCRIPTION AVAILABLE | MODEL W E33; Includes Item(s) 1 - 43 This part replaces 13200-39D00.

13200-39D01

Unavailable

1

COVER

13502-42A00

$38.47

2

SPRING | E3

13417-42A00

$6.79

2

SPRING | E33

13417-26B00

Unavailable

3

RING

13382-42A00

$4.48

4

E RING | E3

13394-10010

$5.45

4

.E-RING | E33

13394-40D20

$5.45

5

RING

13387-47010

$7.22

6

JET, NEEDLE (P-4) | E3

09494-00512

Unavailable

6

JET, NEEDLE (P-2) | MODEL V E33 This part replaces 09494-00716.

09494-00858

Unavailable

6

JET, NEEDLE (O-6M) | MODEL W E33

09494-00911

Unavailable

7

SCREW | E3

02112-04087

$1.49

7

SCREW | E33 This part replaces 02112-04083.

02112-0408A

$1.49

8

DIAPHRAGM ASSY This part replaces 13500-19B62.

13500-19B63

Unavailable

8

DIAPHRAGM ASSY | MODEL W E33 This part replaces 13500-39D00.

13500-39D01

Unavailable

9

SCREW

13602-43410

$2.92

10

PLUNGER ASSY | E3

13411-19B50

$15.35

10

PLUNGER ASSY | E33

13411-19BE0

Unavailable

11

O-RING This part replaces 13295-29900.

13295-29901

$4.34

12

WASHER

13291-29900

$1.98

13

.SPRING (NT:45)

13268-47070

$4.34

14

SCREW, PILOT (2 7/8) | E3

13279-47070

$13.36

14

SCREW, PILOT (2,0) | E33

13279-47070

$13.36

15

JET, PILOT (40) | E3

09492-40014

$9.38

15

JET, PILOT (35) | MODEL V E33

09492-35008

$9.32

15

JET, PILOT (25) | MODEL W E33

09492-25005

$9.55

16

WASHER, NEEDLE JET | MODEL V This part replaces 13332-44080.

13382-03110

$2.80

16

WASHER | MODEL W

13382-03110

$2.80

17

JET, MAIN (122.5) | E3

09491-24013

$11.38

17

JET, MAIN (120) | MODEL V E33

09491-24016

$11.38

17

JET, MAIN (117.5) | MODEL W E33

09491-23017

$11.83

18

NEEDLE, JET (5D67-3) | E3

13383-19B60

$15.77

18

NEEDLE, JET (5D84-1) | MODEL V E33 This part replaces 13383-19BD0.

13383-39D00

Unavailable

18

NEEDLE, JET (5D84-1) | MODEL W E33

13383-39D00

Unavailable

19

FLOAT

13250-42A00

$34.08

20

PIN

13254-92311

$2.07

21

VALVE ASSY, NEEDLE

13370-44500

$50.98

22

O RING, FLOAT CHAMBER

13251-42A00

$9.03

23

O RING This part replaces 13374-44080.

13374-35C00

$5.99

24

FILTER This part replaces 13376-84110.

13376-19F00

$10.28

25

JET, PILOT AIR (160) | E3

09493-32002

$16.57

25

JET, PILOT AIR (150) | MODEL V E33

09493-30003

Unavailable

25

JET, PILOT AIR (170) | MODEL W E33

09493-34001

Unavailable

26

SCREW This part replaces 02112-04123.

02112-0412A

$1.49

27

SPRING

13268-19B50

$4.28

28

ADJUSTER

13267-19B70

$50.69

29

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

30

WASHER

13615-45010

$3.25

31

SCREW This part replaces 02112-04163.

02112-0416A

$1.49

31

SCREW | MODEL W E33

13602-04168

$3.47

32

WASHER This part replaces 08322-01043.

08322-0104A

$1.91

33

.CAP This part replaces 13681-04010.

13681-04011

$4.93

34

HOLDER, GUIDE

13418-43410

$7.22

35

SPRING

13417-43010

$4.34

36

GUIDE, CABLE

13591-19B50

$10.28

37

CLIP

13692-19B60

Unavailable

38

COVER

13502-19B50

$20.10

39

O RING

13251-19B50

$12.30

40

SCREW

13602-19B50

$3.43

41

HOSE(4.5X8.5X60 This part replaces 09355-45855-600.

09355-45001-600

$9.48

42

HOSE | MODEL V E33 This part replaces 13683-19B80.

13683-19B81

$17.37

42

HOSE | MODEL W E33 This part replaces 13683-19B80.

13683-19B81

$17.37

43

PLUG | E33

13281-05A00

$4.60

44

O RING (D:1.7,ID:6.0) | MODEL V This part replaces 09280-06009.

09280-06008

$2.03

44

O RING (D:1.7,ID:6.0) | MODEL W

09280-06008

$2.03

45

UNION, 3 WAY

09367-08004

$4.83

46

HOSE, AIR VENT (5X8.2X2000) | E3 L:2000!650

09359-50823-00B

Unavailable

47

CLAMP, AIR VENT HOSE

09404-06435

$3.68

48

CLAMP, BOOST HOSE

09407-14403

$2.26
