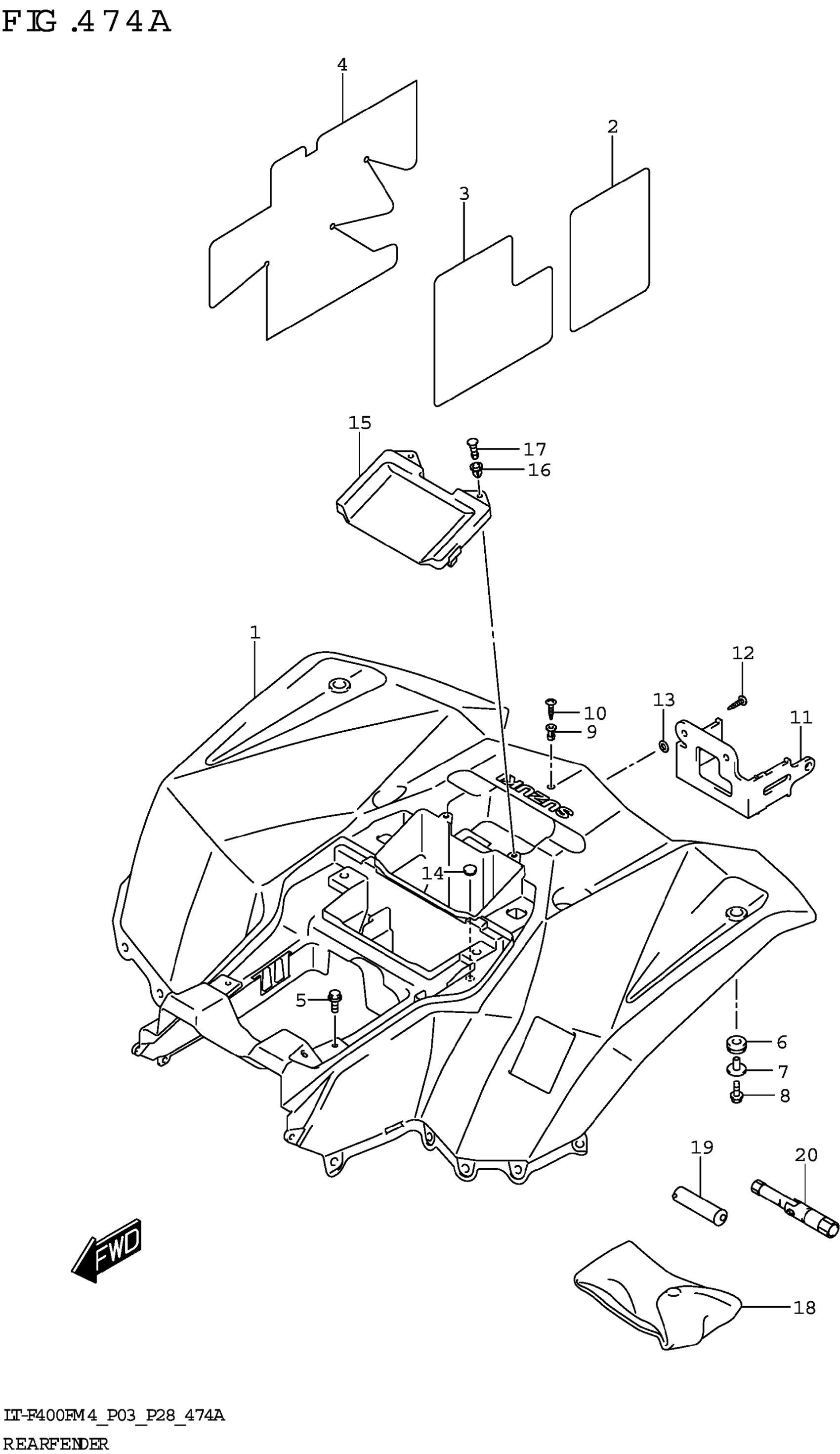

Suzuki LT-F400FM4 (2024) REAR FENDER (P03) Diagram

#

Description
Price

1-1

FENDER,REAR (RED) | BODY COLOR:YT9

63111-27H03-YT9

$367.93

1-2

FENDER,REAR (GREEN) | BODY COLOR:YLG

63111-27H03-YLG

$355.02

2

SHIELD,RR FENDER

63122-27H30

$8.38

3

SHIELD,RR FENDER

63123-27H30

$9.72

4

SHIELD,RR FENDER

63124-27H30

$11.66

5

BOLT (6X16)

09116-06006

$1.88

6

CUSHION (11.5X32X12.2)

09320-11021

$3.77

7

WASHER (6.5X24X1.6)

09169-06074

$7.49

8

BOLT (6X25)

01550-0625A

$1.97

9

NUT (M5)

09159-05019

$6.44

10

SCREW

02142-0520B

$1.77

11

PLATE,CDI UNIT

47413-27H00

$8.01

12

RIVET

09229-04020

$2.56

13

WASHER

08322-0104A

$1.92

14

CAP (OD:16)

09250-08018

$3.74

15

COVER,REAR FENDER

63112-27H01

$65.93

16

GROMMET

09409-08329

$2.54

17

PLUNGER

09409-08330

$2.56

18

TOOL ASSY

09800-21103

$18.22

19

GAUGE ASSY,AIR PRESSUR

96200-18A02

$66.48

20

SPANNER,BOX (16)

09816-00168

$16.42
