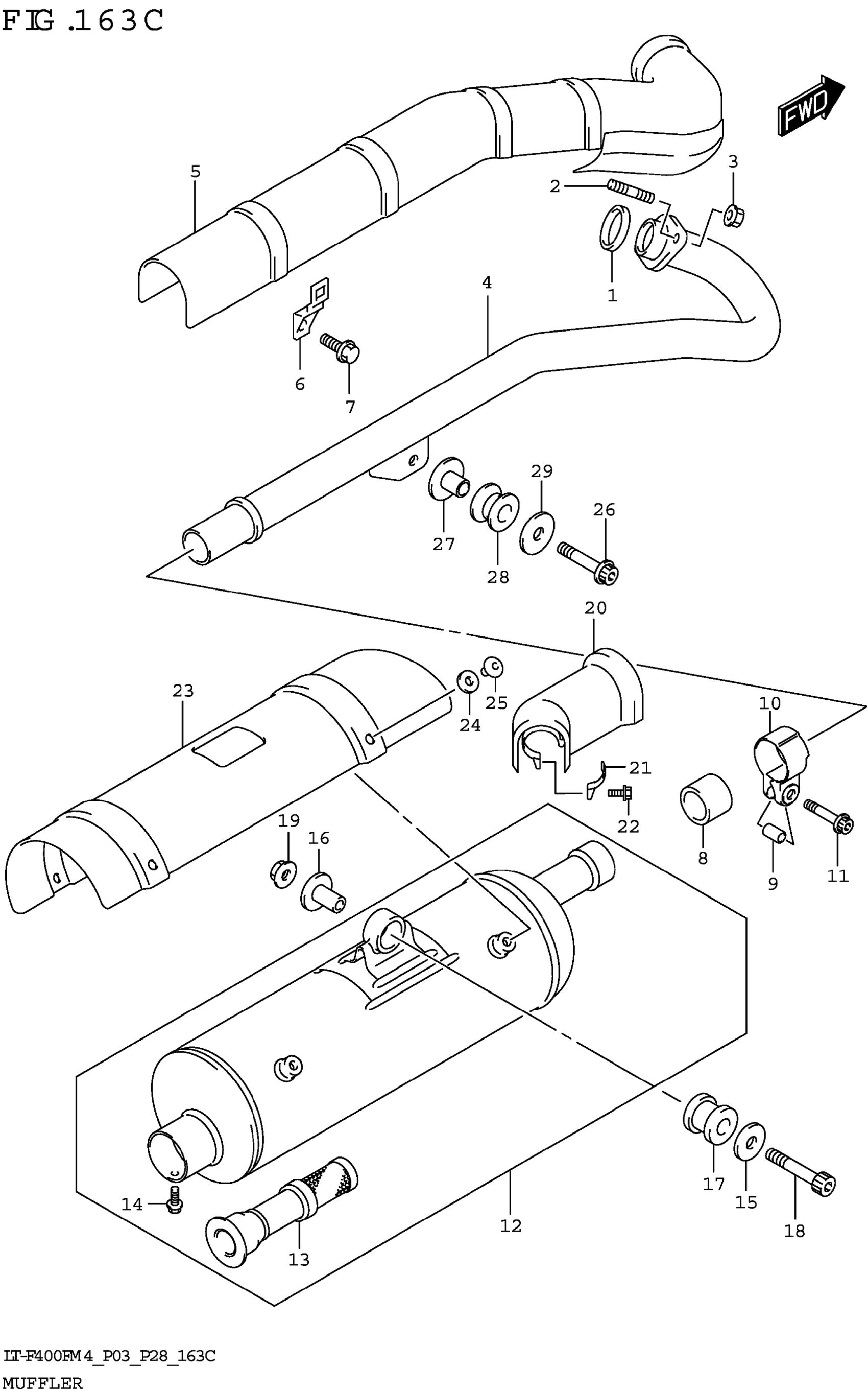

Suzuki LT-F400FM4 (2024) MUFFLER Diagram

#

Description
Price

1

.GASKET,EXHAUST

14181-18C00

$6.61

2

BOLT,STUD

01421-0825A

$2.01

3

NUT

08319-3108A

$2.31

4

PIPE,EXH

14150-27H00

$208.18

5

COVER, EXHAUST PIPE FRONT

14180-38F60

Unavailable

6

CLAMP,EXH PIPE COVER

14185-38F10

$6.63

7

BOLT

01550-0612A

$1.97

8

CONNECTOR,MUFFLER

14771-38F00

$21.77

9

SPACER,CLAMP

14458-45G01

$7.82

10

CLAMP,MUF CONNECTOR

14459-38F10

$21.28

11

BOLT

07120-0835A

$3.25

12

BODY,MUFFLER

14310-38F41

$810.43

13

.ARRESTER

14850-38F30

$101.48

14

.BOLT

07120-0508B

$3.32

15

WASHER (8.5X30X2.3)

09160-08503

$2.53

16

SPACER (8.6X12X24.2)

09180-08152

$5.26

17

CUSHION

09320-12082

$45.08

18

BOLT

07130-0845A

$4.70

19

NUT

08319-3108A

$2.31

20

COVER,MUF FR

14790-27H00

$50.77

21

CLAMP,EXH PIPE COVER

14185-38F10

$6.63

22

BOLT

01550-0612A

$1.97

23

COVER,MUF RR

14880-38F10

$66.18

24

GASKET (5.8X13X1.4)

09168-06120

$2.80

25

SCREW (6X10)

09139-06076

$2.43

26

BOLT (8X35)

09106-08133

$3.56

27

SPACER (8.6X12X17.5)

09180-08151

$4.73

28

CUSHION, EXHAUST SUPPORT This part replaces 09320-12035.

09320-12043

$7.20

29

WASHER (8.5X28X1.5)

09160-08135

$2.10
