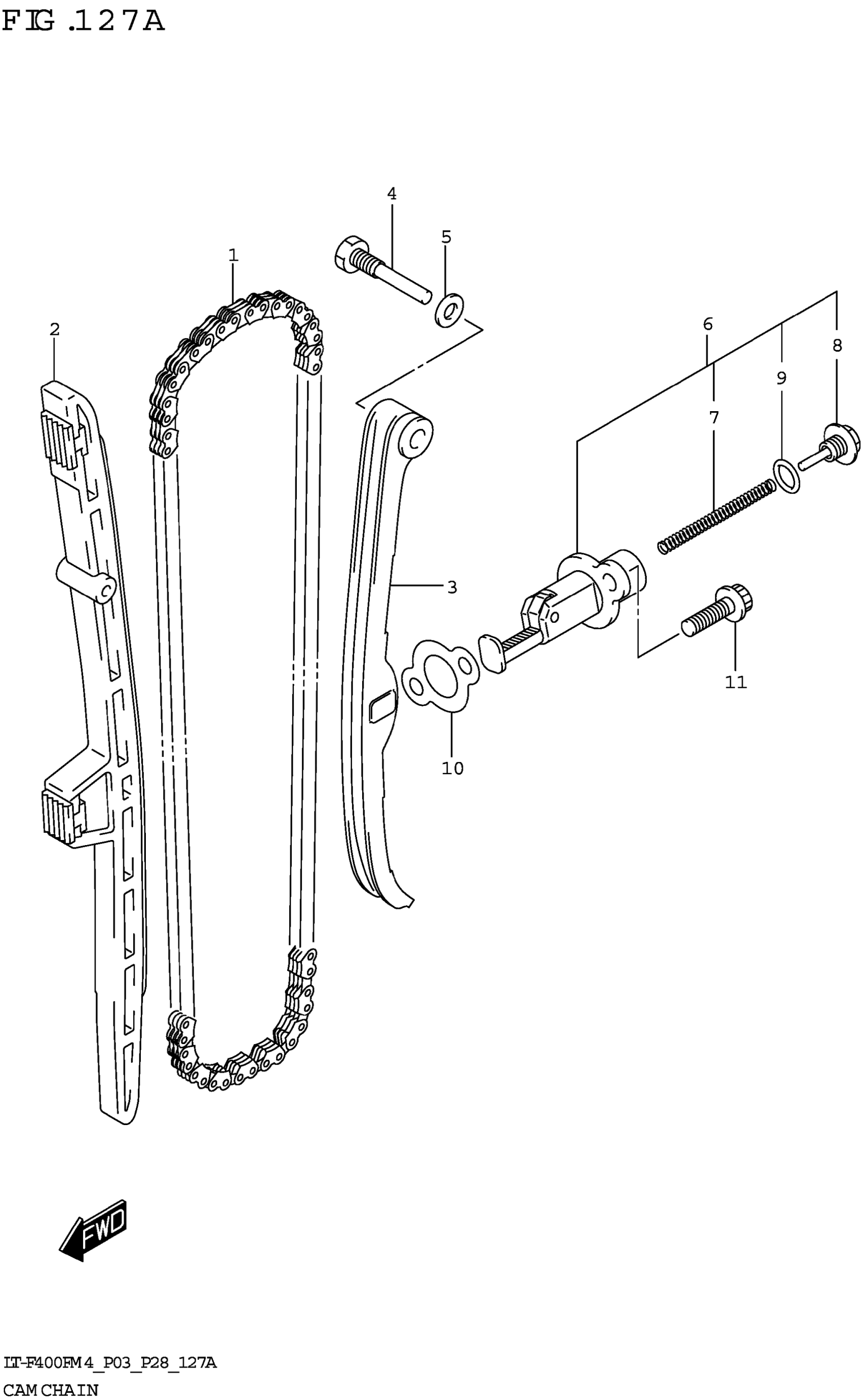

Suzuki LT-F400FM4 (2024) CAM CHAIN Diagram

#

Description
Price

1

CHAIN,CAM SHAFT DRIVE (108LE)

12760-19B71

$79.85

2

GUIDE,CAM CHAIN

12771-27H01

$32.72

3

TENSIONER,CAM CHAIN

12811-14D11

$48.55

4

BOLT, CAM CHAIN TENSIONER

12812-32400

$4.92

5

GASKET (8.2X14X1)

09168-08016

$1.64

6

ADJUSTER ASSY,TENSIONER

12830-29B11

$136.53

7

.SPRING

12833-29B00

$3.86

8

.PLUG,ADJUSTER

12834-26B00

$20.33

9

.O-RING

12832-02A00

$2.80

10

.GASKET,TENSIONER ADJUSTER

12837-19B10

$2.80

11

BOLT

07130-0620A

$2.50
