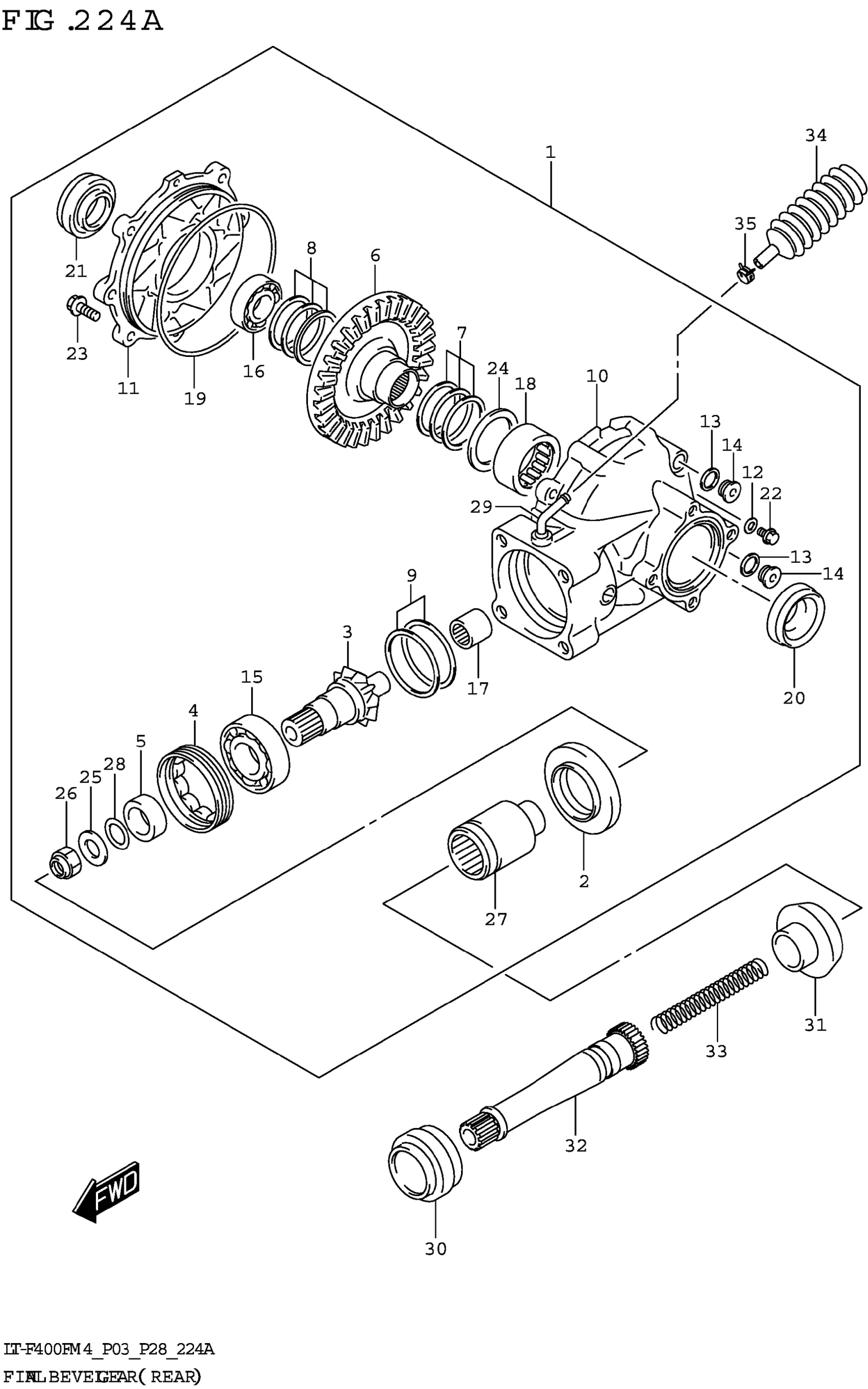

Suzuki LT-F400FM4 (2024) FINAL BEVEL GEAR (REAR) Diagram

#

Description
Price

1

CASE ASSY,REAR FINAL GEAR

27410-38F50

$1,863.65

2

.SEAL,FINAL DRIVE BRG OIL

27156-27H00

$27.00

3

.GEAR,FINAL DRIVE

27311-27HM0

$323.32

4

.STOPPER,FINAL DRIVE BEARING

27312-38F00

$59.52

5

.SPACER,REAR FINAL DRIVE

27316-38FM0

$30.92

6

.GEAR,FINAL DRIVEN

27321-27HM0

$388.27

7

.SHIM SET,FINAL DRIVEN GEAR ( | :0.30/0.35/0.40/0.50/0.60) T:0.30/0.35/0.40/0.50/0.60

27326-09810

$17.23

8

.SHIM SET,FINAL DRIVEN GEAR ( | :0.30/0.35/0.40/0.50/0.60) T:0.30/0.35/0.40/0.50/0.60

27326-18810

$16.92

9

.SHIM SET,FINAL DRIVE GEAR (T | 0.30/0.35/0.40/0.50/0.60) T:0.30/0.35/0.40/0.50/0.60

27445-24810

$31.82

10

.CASE,REAR FINAL GEAR

27450-27HM0

$754.00

11

.CASE,REAR FINAL DRIVEN ,RH

27461-38FM0

Unavailable

12

GASKET (6.2X13X1.2)

09168-06018

$1.70

13

GASKET (16X22X2)

09168-16002

$1.89

14

PLUG (16X8)

09248-16012

$4.19

15

.BEARING,FINAL DRIVE GEAR

27405-38FN0

$98.00

16

.BEARING,FINAL DRIVEN,RH

27405-38FP0

$127.21

17

.BEARING,FINAL DRIVE PILOT

27405-38FR0

$70.52

18

.BEARING,FINAL DRIVEN,LH

27405-38FS0

$82.08

19

.O RING,BEARING CASE,RH

27405-38FT0

$18.80

20

.SEAL,OIL (38X54X6)

09283-38009

$13.30

21

.SEAL,OIL,42X62X7 (42X62X7)

09283-42011

$11.53

22

.BOLT,OIL CHECK

27401-38FM0

$4.90

23

.BOLT,REAR FINAL GEAR

27401-38FN0

Unavailable

24

.WASHER,FINAL DRIVEN,LH

27407-38FN0

$7.06

25

WASHER (16X30X3)

09160-16026

$5.43

26

NUT

09159-16003

$4.33

27

.COUPLING,RR FINAL DRIVE FINA

27171-27HM0

$211.79

28

.O RING,COUPLING

27405-27HM0

$46.98

29

.UNION

09364-08009

$10.33

30

BOOT,RR PROP SHAFT

27153-27H01

$5.20

31

BOOT,JOINT SHAFT

27153-27H21

$12.12

32

SHAFT,REAR PROPELLER

27155-27H10

$57.29

33

SPRING,REAR PROPELLER SHAFT

27192-31G10

$5.63

34

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$16.94

35

CLIP (ID:8.6)

09401-08411

$1.77
