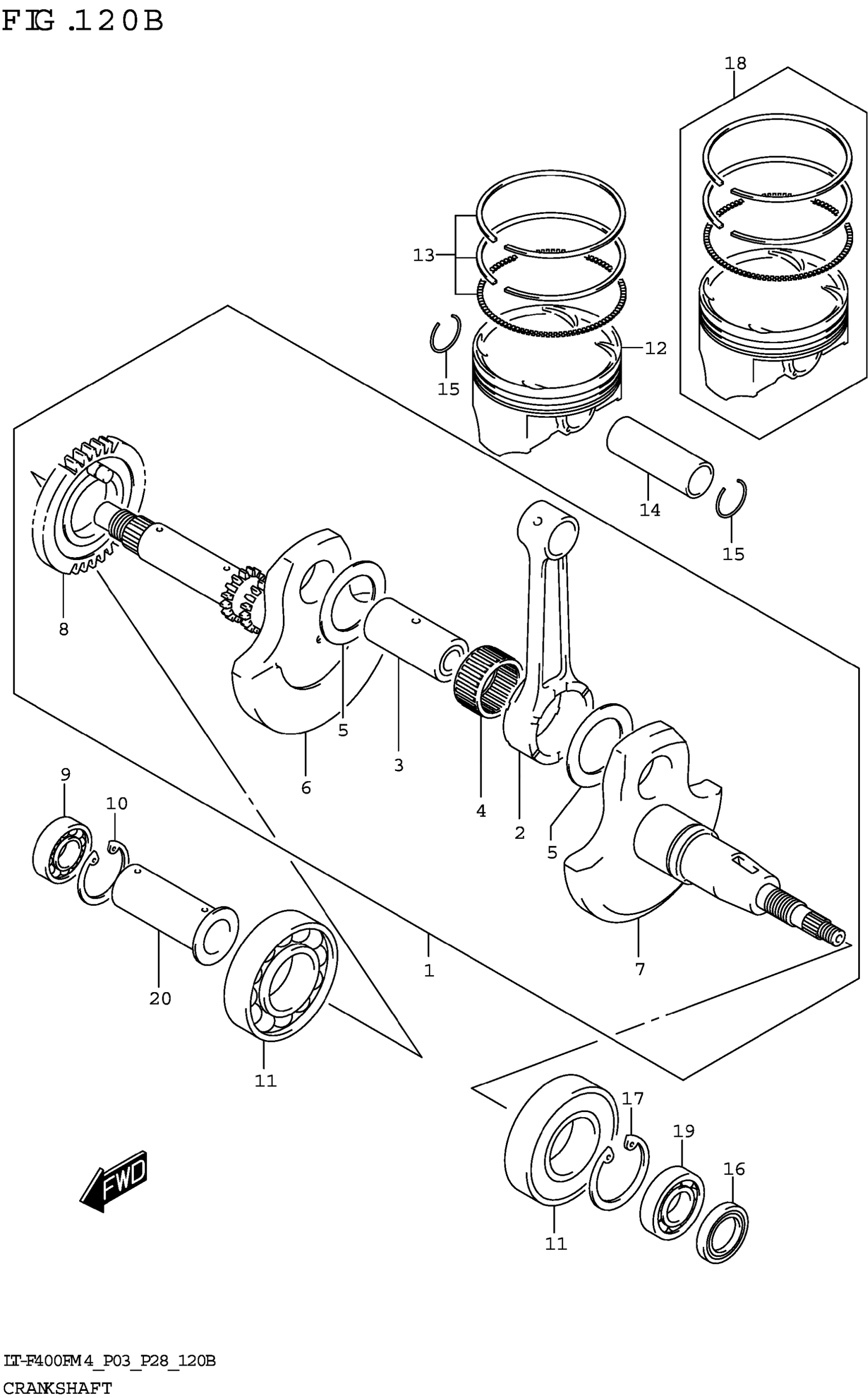

Suzuki LT-F400FM4 (2024) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET

12200-38861

$1,092.02

2

.ROD,CONNECTING

12161-14D00

$150.35

3

.PIN,CRANK

12210-14D03

$86.13

4

.BEARING,34X43X22 (34X43X22)

09263-34005

$80.87

5

.WASHER,34X52X1 (34X52X1)

09160-34003

$8.62

6

.CRANKSHAFT,RH (NT:24)

12220-38F61

Unavailable

7

.CRANKSHAFT,L

12261-38F60

Unavailable

8

.GEAR,CRANK BALANCER DRIVE (N | :37)

12661-38F01

Unavailable

9

BEARING,15X35X11 (15X35X11)

09262-15014

$26.60

10

CIRCLIP

08331-41359

$2.26

11

BEARING (35X72X17)

09262-35038

$46.10

12

PISTON

12111-38F21-0F0

$108.93

13

RING SET PISTON (STD)

12140-38F10

$51.49

14

PIN,PISTON

12151-24A00

$22.03

15

CIRCLIP

09381-20004

$1.65

16

OIL SEAL (25X42X6)

09283-25095

$26.72

17

CIRCLIP

08331-41479

$2.31

18

PISTON SET,OS0.5 (OS:0.5)

12100-38F21-050

$149.82

19

BEARING (25X47X8)

09262-25006

$25.54

20

SPACER,CRANKSHAFT,R

12222-38F50

Unavailable
