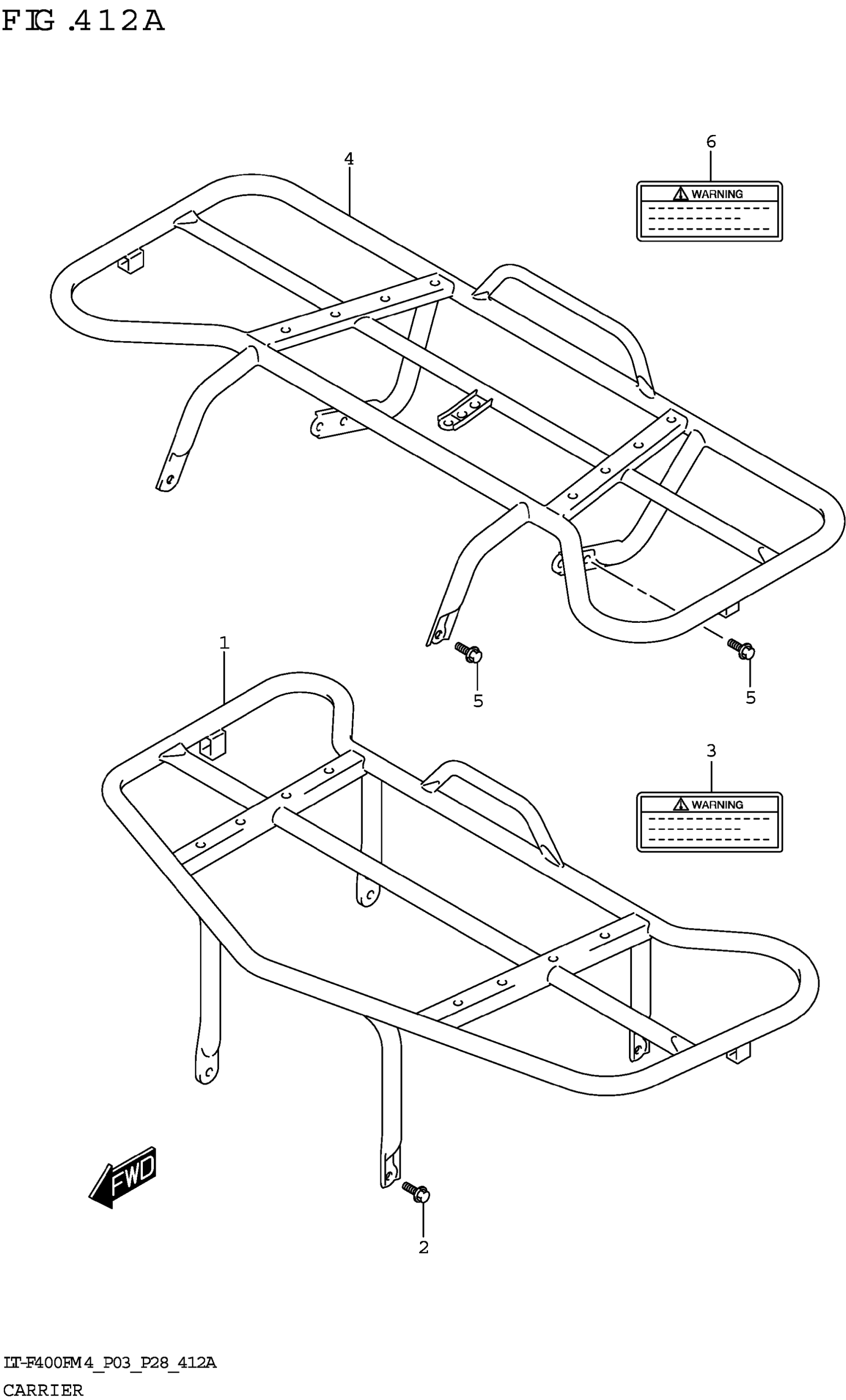

Suzuki LT-F400FM4 (2024) CARRIER (P03) Diagram

#

Description
Price

1-1

CARRIER,FRONT (BLACK)

46410-27H01-YSN

$273.27

1-2

CARRIER,FRONT (BLACK) | FROM 202306

46410-27H10-YSN

$243.73

2

BOLT (8X16)

01550-0816A

$2.32

3

LABEL,FRONT CARRIER

68381-31G01

$4.07

4-1

CARRIER,REAR (BLACK) This part replaces 46310-27H10-YSN.

46310-27H20-YSN

$269.12

4-2

CARRIER,REAR (BLACK) | FROM 202306

46310-27H20-YSN

$269.12

5

BOLT (8X16)

09103-08441

$1.58

6

LABEL,REAR CARRIER

68381-31G11

$4.05
