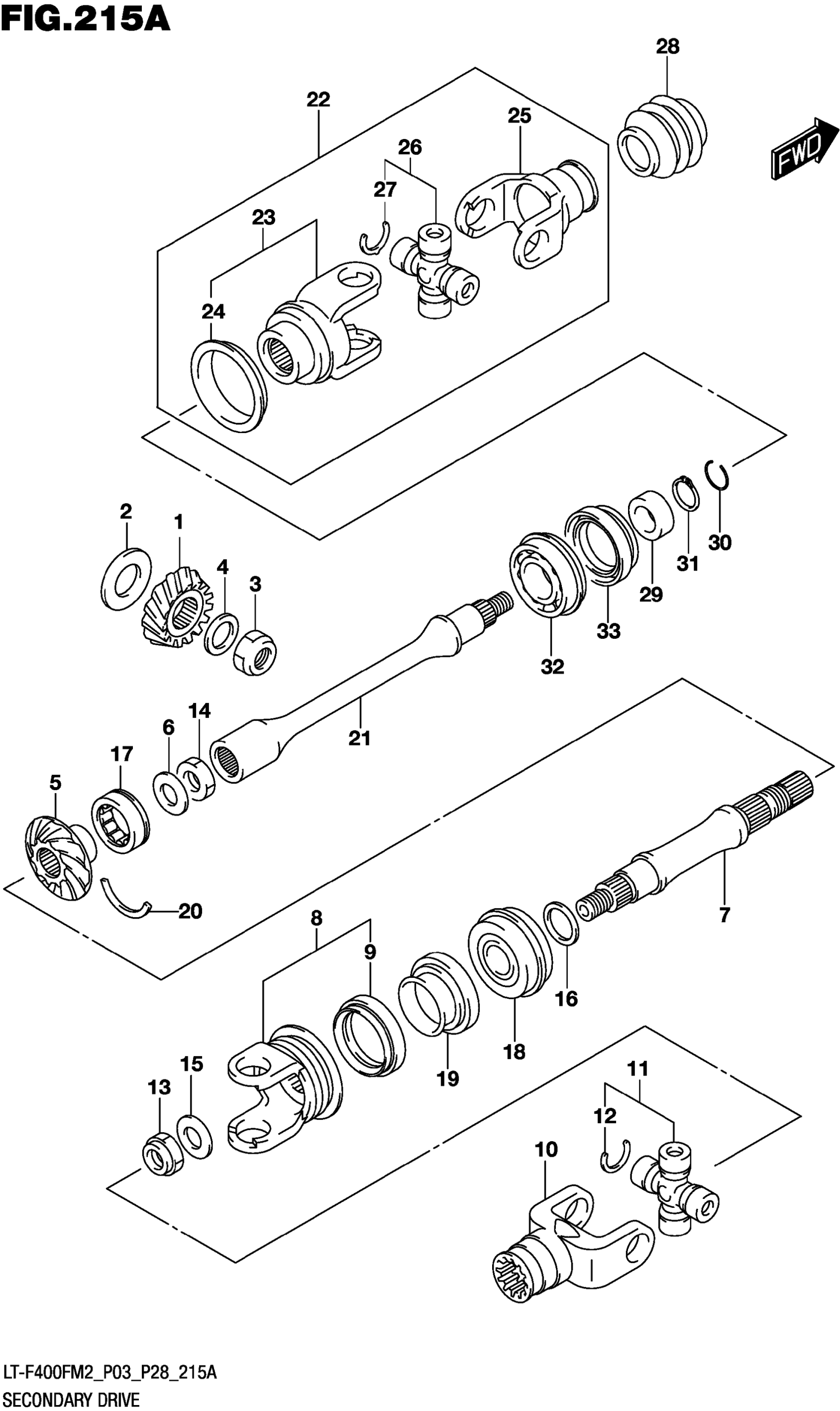

Suzuki LT-F400FM2 (2022) SECONDARY DRIVE Diagram

#

Description
Price

1

GEAR,SEC DRIVE BEVEL (NT:15)

24911-44D11

$223.23

2

SHIM SET,SEC DRIVE BEVEL | T:0.25/0.30/0.35/0.55/0.58/0.60/ 0.93/0.95/0.98/1.00/1.03/1.05/ 1.23/1.25/1.28/1.30

24935-03811

$133.70

3

NUT

09140-20012

$4.32

4

SHIM (20X32X1)

09181-20223

$2.92

5

GEAR,SEC DRIVEN BEVEL (NT:17)

24921-44D10

$272.28

6

WASHER

08211-22362

Unavailable

7

SHAFT,SEC DRIVEN OUTPUT RR

24971-38F50

Unavailable

8

YOKE,RR DRIVE OUTPUT

27130-03G00

$156.94

9

.PLATE

27592-38F00

$11.33

10

YOKE, PROP SHAFT JOINT

27140-27H01

$139.15

11

JOINT SET,UNIVERSAL

27200-19811

$59.54

12

.CIRCLIP

09380-20016

$2.32

13

NUT

09159-16003

$4.00

14

NUT

09159-22005

$27.75

15

WASHER (16X30X3)

09160-16026

$5.00

16

SHIM SET,SEC DRIVEN BEVEL

24945-03811

$111.58

17

BEARING (30X50X17)

09263-30050

$57.07

18

BEARING (25X52X20.6)

09267-25014

$124.50

19

OIL SEAL (34X52X9)

09283-34008

$20.72

20

C RING

09390-50002

$3.03

21

SHAFT,SEC DRIVEN OUTPUT FR

24961-27H50

$237.42

22

YOKE ASSY,UNIVERSAL JOINT

27100-27H02

$306.75

23

.YOKE, FR DRIVE OUTPUT

27130-27H01

$183.00

24

.PLATE

27592-38F00

$11.33

25

YOKE, PROP SHAFT JOINT

27140-27H01

$139.15

26

JOINT SET,UNIVERSAL

27200-19811

$59.54

27

.CIRCLIP

09380-20016

$2.32

28

BOOT,PROPELLER SHAFT

27153-27H11

$7.62

29

COLLAR,FRONT DRIVE OUTPUT

27591-27H00

$25.98

30

CIRCLIP (21.5X1.2)

09381-19005

$2.19

31

CIRCLIP

08331-31229

$2.48

32

BEARING (25X52X15)

09262-25131

$49.88

33

OIL SEAL (34X52X9)

09283-34008

$20.72
