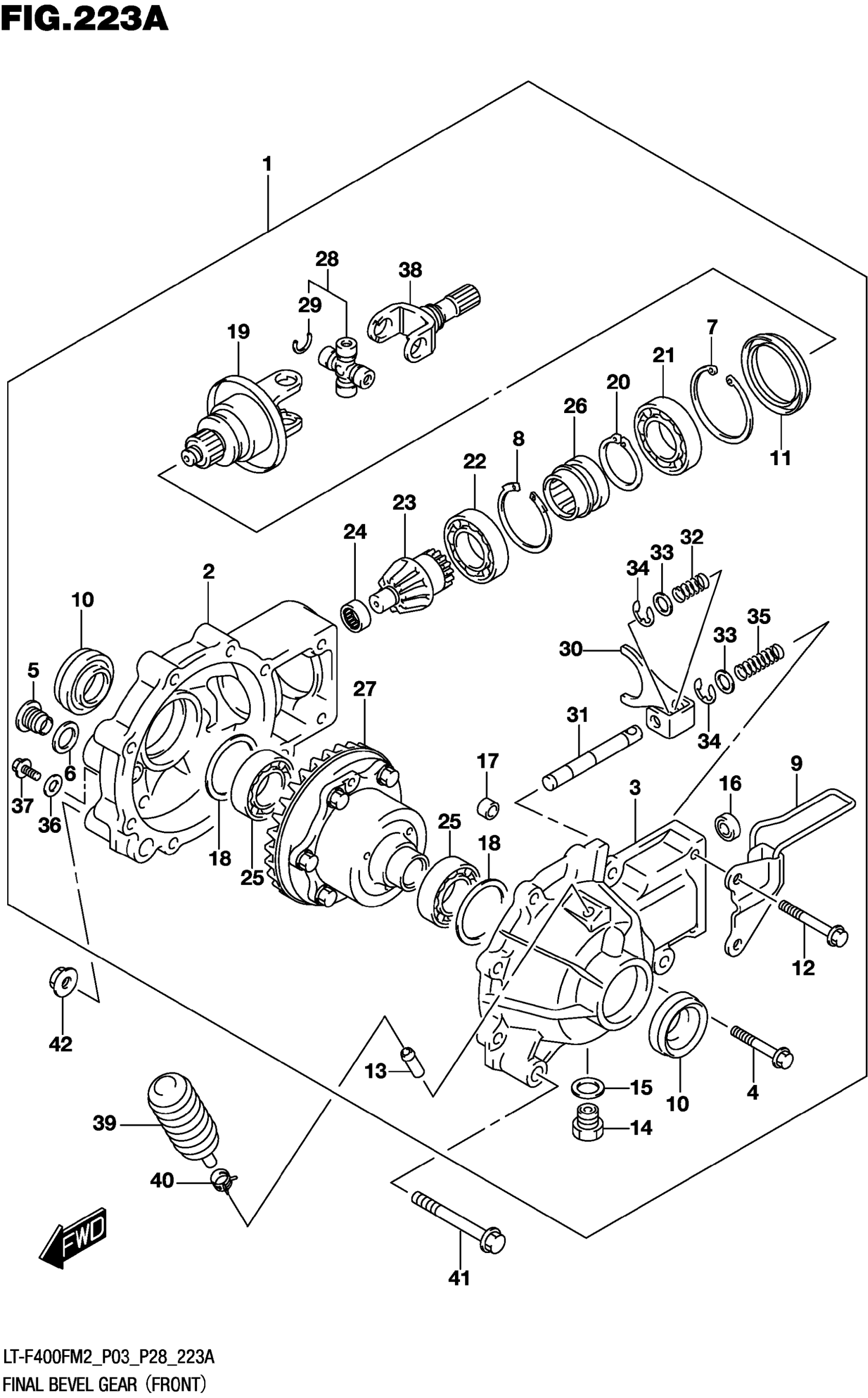

Suzuki LT-F400FM2 (2022) FINAL BEVEL GEAR (FRONT) Diagram

#

Description
Price

1

CASE ASSY,FR DIFFERENTIAL

27400-38F51

$1,463.97

2

.HOUSING,FINAL DRIVE,FR

27451-38FB1

Unavailable

3

.COVER,FINAL DRIVE,FR

27461-38FA1

Unavailable

4

.BOLT (8X25)

27401-38FA1

Unavailable

5

.PLUG

27409-38FA0

$3.85

6

.WASHER

27407-31GA0

$8.37

7

.RING SNAP

27403-38FA0

$5.43

8

.RING SNAP

27403-38FB0

$5.43

9

.BRACKET ASSY,SHIFT

27951-38FA0

$19.13

10

.OIL SEAL

27406-38FD0

$7.01

11

.OIL SEAL

27406-38FB0

$8.98

12

.BOLT (8X50)

27401-38FB0

$3.58

13

.UNION

09364-08003

$3.42

14

.PLUG

27409-38FB0

Unavailable

15

.WASHER

27407-38FB0

$2.56

16

.OIL SEAL

27406-38FC0

Unavailable

17

.PIN

27404-31GA0

Unavailable

18

.SHIM SET

27445-38FA0

$127.22

19

.YOKE ASSY

27130-03GA0

$126.03

20

.SNAP RING

27403-38FC0

$3.68

21

.BEARING

27405-38FA0

$27.27

22

.BEARING

27405-38FB0

$28.69

23

PINION,DRIVE This part replaces 27311-11HA0.

27311-11HA1

$274.80

24

.BEARING

27405-38FC0

$11.32

25

.BEARING

27405-38FD0

$14.94

26

.SLEEVE

27371-31GA0

$86.17

27

.GEAR ASSY

27320-27HA0

$511.03

28

JOINT SET,UNIVERSAL

27200-19811

$54.50

29

.CIRCLIP

09380-20016

$2.34

30

.FORK,SHIFT

27941-38FA0

$17.05

31

.ROD,SHIFT

27921-38FA0

Unavailable

32

.SPRING,SHIFT

27402-38FA0

$3.17

33

.WASHER

27407-38FC0

Unavailable

34

.E RING

27403-38FD0

$2.90

35

.SPRING,RETURN

27402-38FB0

Unavailable

36

.WASHER

27407-38FD0

$2.80

37

.PLUG,LEVEL

27409-38FC0

$6.03

38

.YOKE,PROP SHAFT JOINT

27151-27HA0

$157.03

39

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$16.94

40

CLIP (ID:8.6)

09401-08411

$1.77

41

BOLT (10X110)

09103-10148

$6.26

42

NUT

08319-3110A

$2.73
