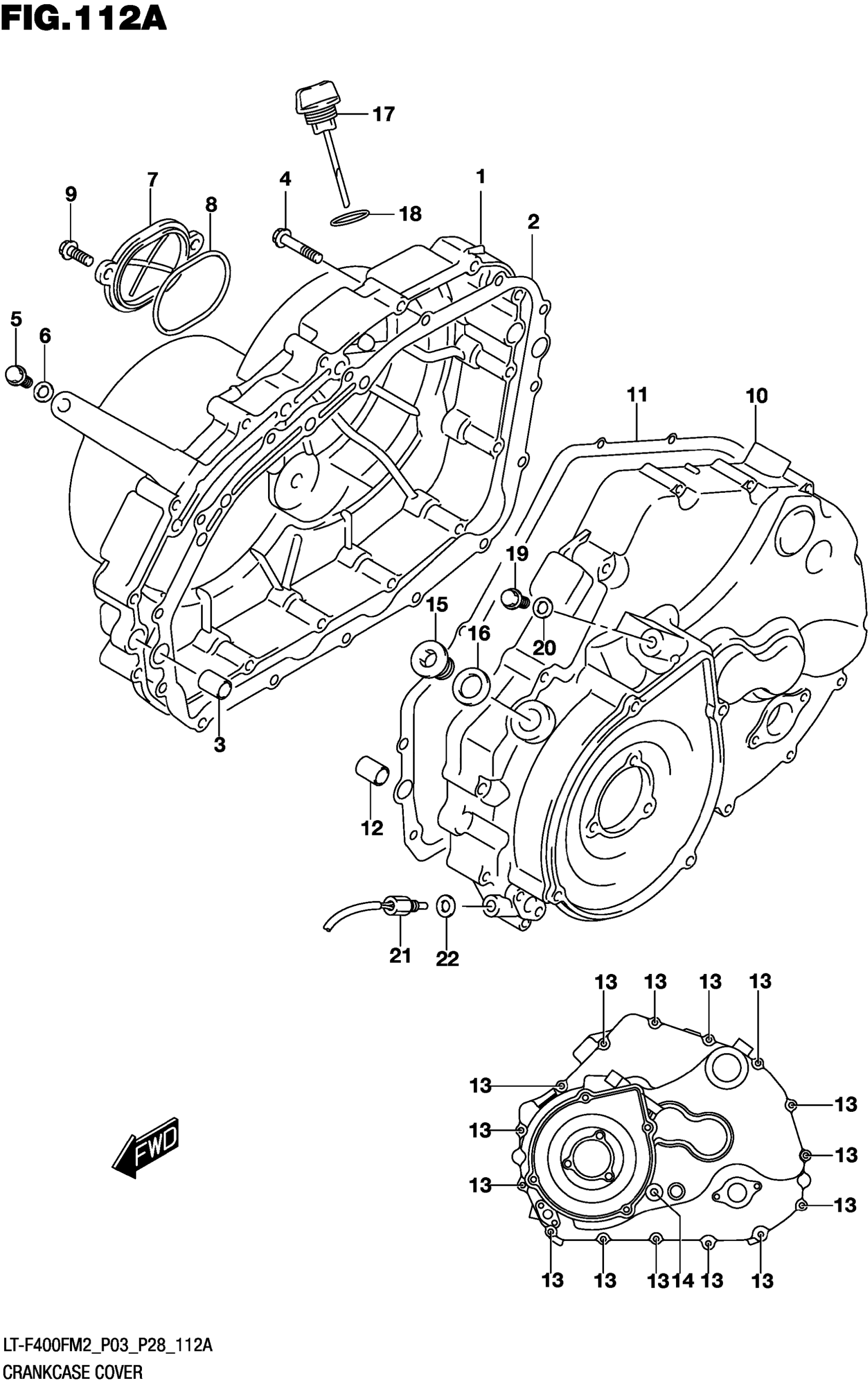

Suzuki LT-F400FM2 (2022) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH

11341-27H10

$302.87

2

.GASKET,CLUTCH COVER (NA)

11482-38F10

$21.96

3

PIN (10.4X13X18)

04211-13189

$2.19

4

BOLT

01547-0640A

$2.32

5

BOLT

01550-0612A

$1.97

6

GASKET (5.8X13X1.2)

09168-06023

$2.35

7

CAP, INSPECTION

11175-09F00

Unavailable

8

.O RING,INSPECTION CAP

11177-14D01

$4.60

9

BOLT (6X20)

01550-0620A

$1.97

10

COVER,MAGNETO

11351-27H30

Unavailable

11

.GASKET,MAGNETO COVER (NA)

11483-38F10

$23.83

12

PIN (10.4X13X18)

04211-13189

$2.19

13

BOLT

01547-0640A

$2.32

14

BOLT,8X140 (8X140)

09103-08040

$5.52

15

PLUG (16X8)

09248-16012

$4.64

16

GASKET (16X22X2)

09168-16002

$1.91

17

GAUGE,OIL LEVEL

11971-38F00

$9.78

18

O-RING (D:3.1,ID:16.8)

09280-17003

$1.65

19

BOLT

01550-0612A

$1.97

20

GASKET (5.8X13X1.2)

09168-06023

$2.35

21

SENSOR,ENGINE TEMP

13640-32G01

$50.65

22

GASKET (8.2X14X1)

09168-08016

$1.65
