Description

Price

1

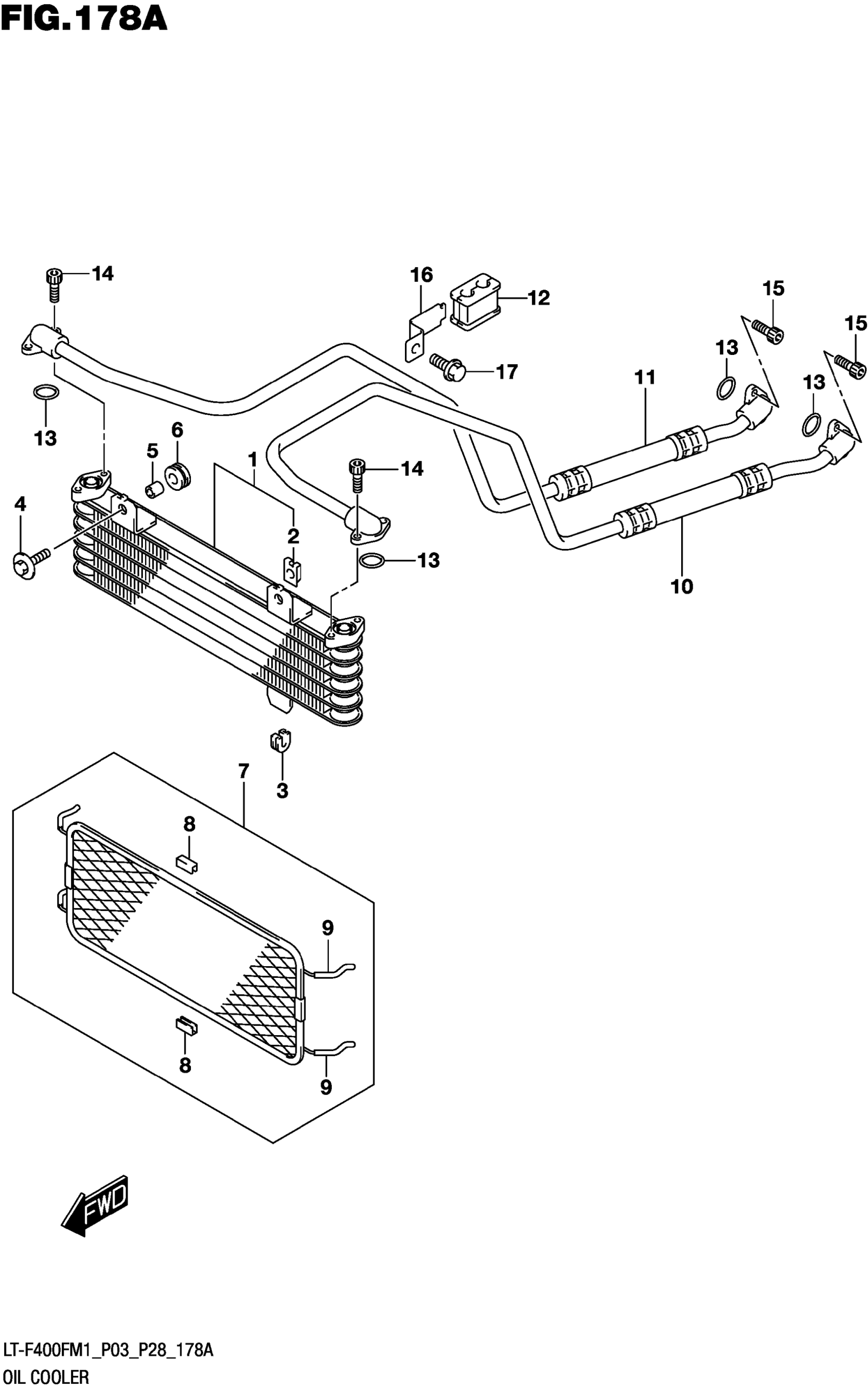

COOLER ASSY,OIL This part replaces 16600-38F21.

16600-38F22

$182.49

2

NUT,RADIATOR FAN

17802-14F00

$3.33

3

CUSHION,OIL COOLER,NO.2

16628-27A00

$2.80

4

BOLT (6X25)

09116-06093

$2.65

5

SPACER (6.5X10X10)

09180-06310

$1.99

6

CUSHION

09320-10015

$2.61

7

GURD,OIL COOLER

16650-27H01

$94.30

8

.PROTECTOR,CTR

16654-27H01

$4.48

9

.PROTECTOR

09352-30504-040

$2.37

10

HOSE,OIL COOLER INLET

16460-38F10

$67.65

11

HOSE,OIL COOLER OUTLET

16470-38F10

$68.13

12

GROMMET,OIL HOSE

16468-38F01

$8.45

13

O-RING (D:2.4,ID:12.3)

09280-12008

$2.80

14

BOLT This part replaces 07130-0616A.

07130-0616B

$2.44

15

BOLT (6X16)

09106-06073
