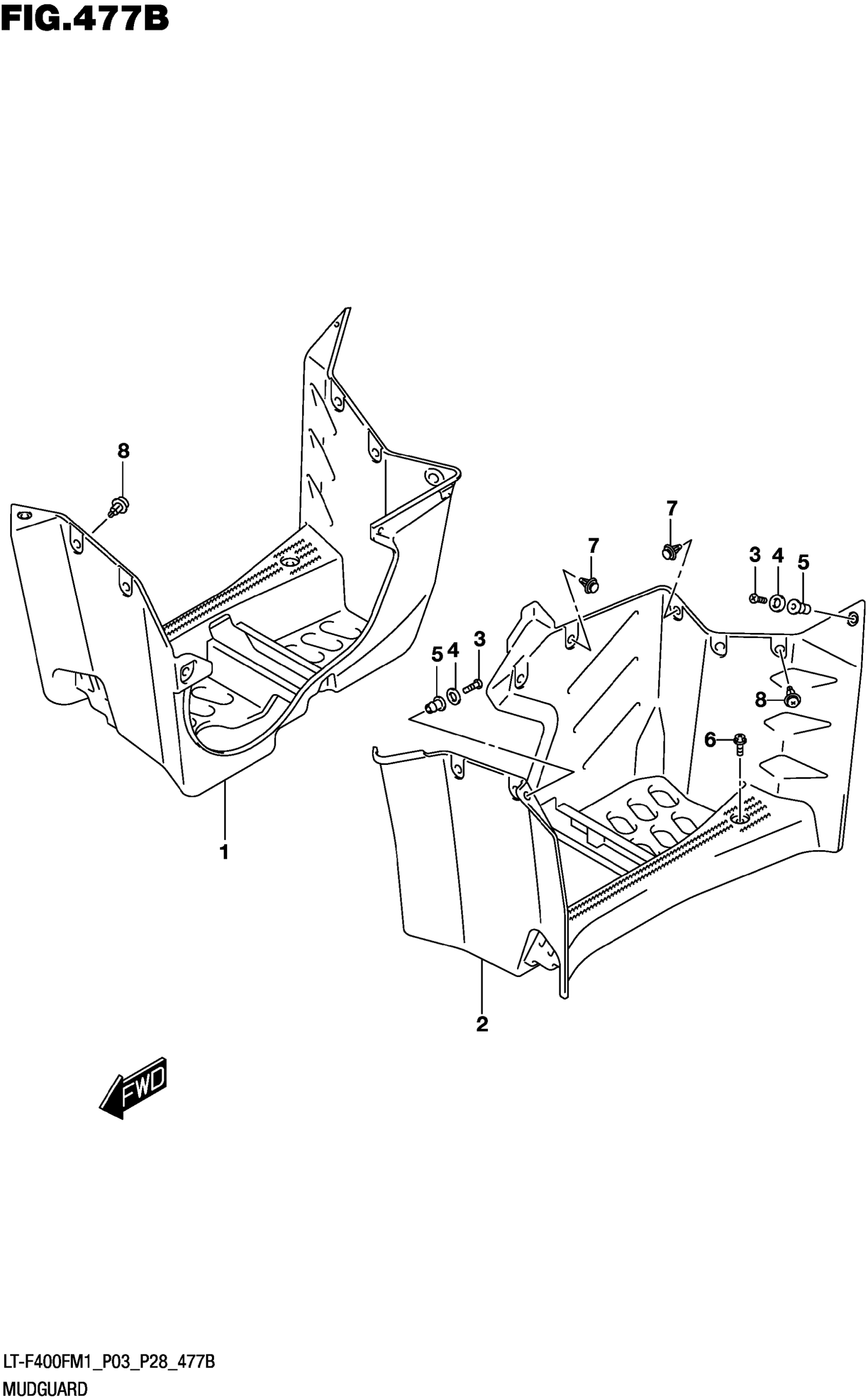

Suzuki LT-F400FM1 (2021) MUDGUARD Diagram

#

Description

Price

1

MUDGUARD,FOOTREST,R (BLACK) This part replaces 63331-27H11-291.

63331-27H12-291

$47.17

2

MUDGUARD,FOOTREST,L (BLACK) This part replaces 63341-27H01-291.

63341-27H02-291

$40.60

3

SCREW

02142-0520B

$1.78

4

WASHER (5.5X20X1.4)

09160-05046

$1.92

5

NUT (M5)

09159-05019

$7.14

6

BOLT (6X16.5)

09111-06094

$2.03

7

CLIP

09409-08335

$2.47

8

CLIP

09409-10306

$3.04
