Description

Price

1

HUB,REAR,L

64110-38F30

$104.72

2

RIM,RR WHEEL (12X7.5A,BLACK)

65310-38F40-291

$202.98

3

NUT

09140-10021

$2.09

4

WASHER,HUB

64723-38F00

$8.98

5

NUT

09141-20008

$17.59

6

PIN

04111-4035A

$1.41

7

CAP,WHEEL CENTER

54725-09F01

$9.53

8

AXLE,REAR,L

64712-38F20

$109.52

9

TIRE,REAR (AT25X10-12)

65110-31G30

$326.70

10

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.46

11

PLATE,TRAILER TOW

95210-38F10

$49.25

12

BOLT (10X30)

09103-10421

$4.75

13

PROTECTOR,FINAL CASE

61391-38F11

$74.60

14

BOLT

61393-09F10

$7.02

15

BOLT (6X16.5)

09111-06094

$2.13

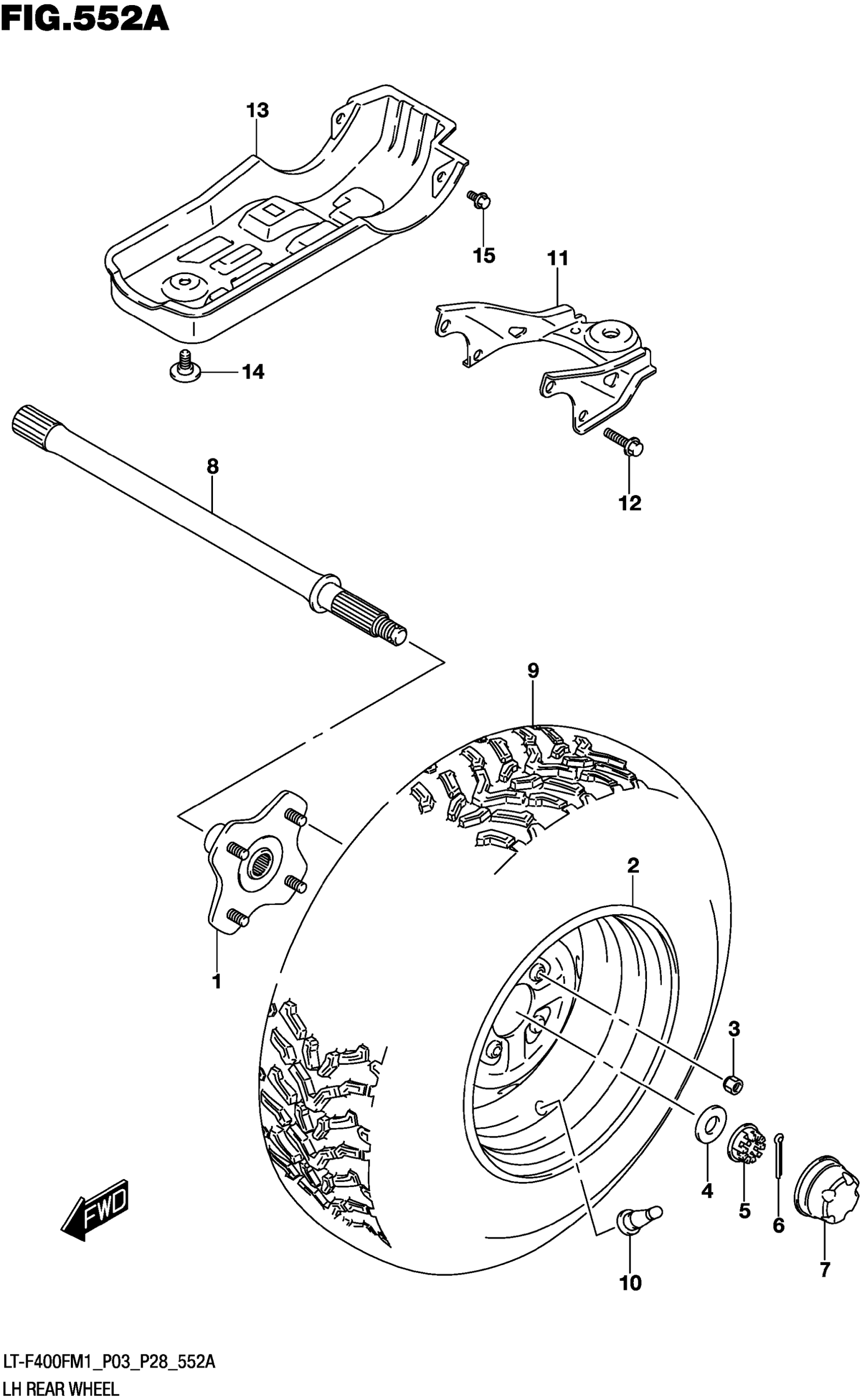

Suzuki LT-F400FM1 (2021) LH REAR WHEEL Diagram
