Description

Price

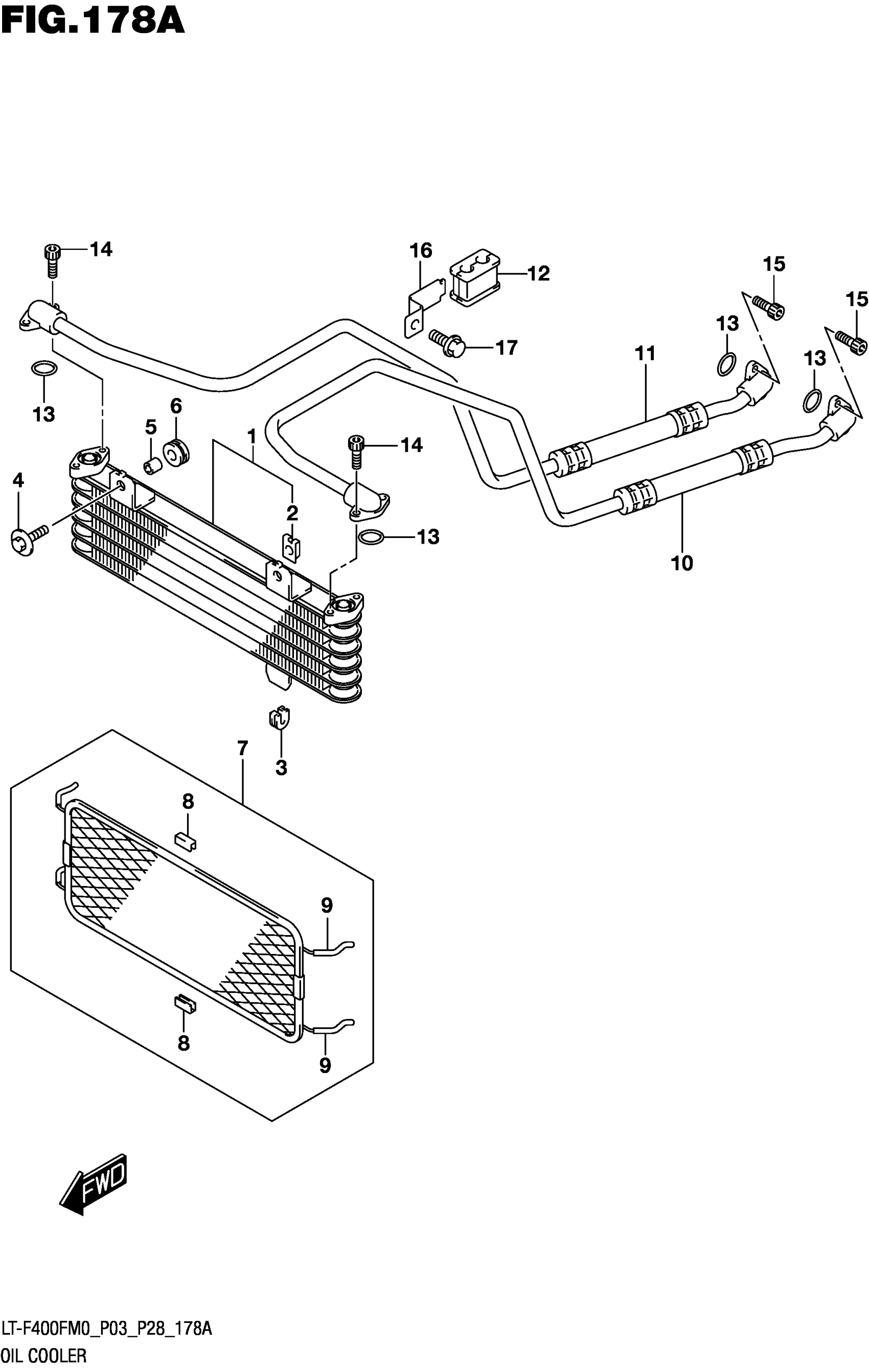

1

COOLER ASSY,OIL This part replaces 16600-38F21.

16600-38F22

$172.62

2

NUT,RADIATOR FAN

17802-14F00

$3.38

3

CUSHION,OIL COOLER,NO.2

16628-27A00

$2.92

4

BOLT (6X25)

09116-06093

$2.43

5

SPACER (6.5X10X10)

09180-06310

$1.91

6

CUSHION

09320-10015

$2.54

7

GURD,OIL COOLER This part replaces 16650-27H00.

16650-27H01

$83.55

8

.PROTECTOR, CENTER

16654-27H00

Unavailable

9

.HOSE (3X5X600) | L:600->40 This part replaces 09352-30503-600.

09352-30504-600

$4.91

10

HOSE,OIL COOLER INLET

16460-38F10

$59.93

11

HOSE,OIL COOLER OUTLET

16470-38F10

$60.37

12

GROMMET,OIL HOSE This part replaces 16468-38F00.

16468-38F01

$7.48

13

O-RING (D:2.4,ID:12.3)

09280-12008

$2.76

14

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39

15

BOLT (6X16)

09106-06073
