Partiron

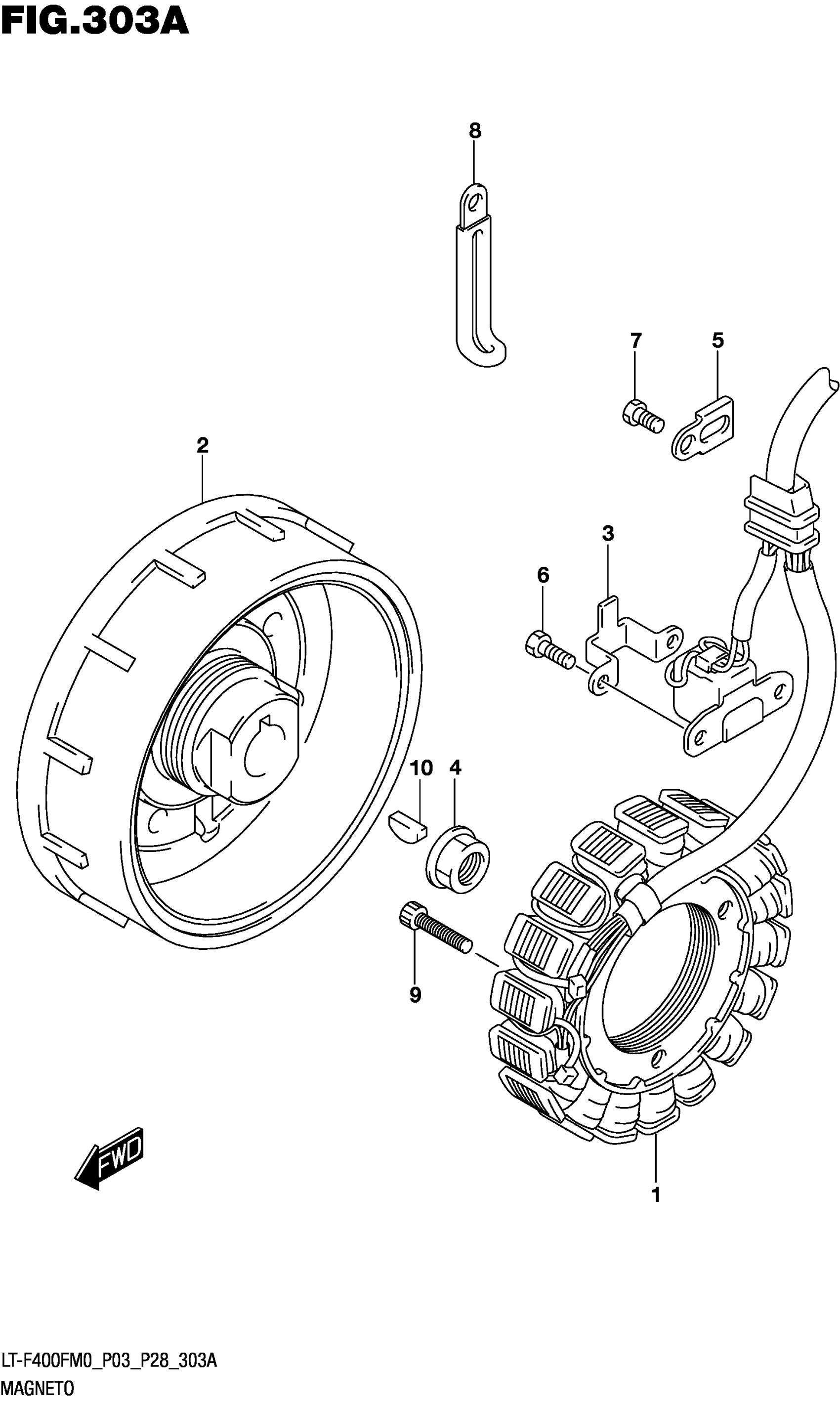

Suzuki LT-F400FM0 (2020) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY

32101-27H10

$812.17

2

ROTOR ASSY

32102-27H10

$829.28

3

CLAMP,MAGNETO LEAD

31497-45000

$1.92

4

NUT,MAGNETO ROTOR

31792-11H00

$11.78

5

CLAMP,MAGNETO LEAD

32371-32E00

$6.30

6

BOLT (5X10)

09100-05019

$1.93

7

BOLT (5X10)

09100-05019

$1.93

8

CLAMP (L:45)

09404-06429

$1.83

9

BOLT

07130-0630A

$3.72

10

KEY

09420-05007

$4.60
