Description

Price

1

SHAFT STEERING This part replaces 51650-27H00.

51650-27H10

$369.13

2

SEAL,STEERING SHAFT HLDR DUST

51678-24500

$6.64

3

HOLDER,STEERING SHAFT

51670-24500

$23.07

4

BOLT

01550-0875A

$3.55

5

O-RING (D:3.1,ID:16.8)

09280-17003

$1.65

6

BUSH STEERING,LOWER (17X26X36

51661-09F00

$30.05

7

SEAL,DUST This part replaces 51662-05G00.

51662-05G01

$6.42

8

SEAL,DUST This part replaces 51663-05G00.

51663-05G01

$7.13

9

WASHER (12.5X30X3)

09160-12103

$3.07

10

NUT

08319-3112B

$5.00

11

PIN

04111-2020A

$1.49

12

HOLDER,HANDLE LOWER (BLACK)

56211-21G00-291

$30.47

13

CLAMP,HANDLE HOLDER UPPER

56211-29900

$15.20

14

.BOLT

01550-0850A

$3.67

15

GUIDE,FR BRAKE HOSE NO.1

59243-38F00

Unavailable

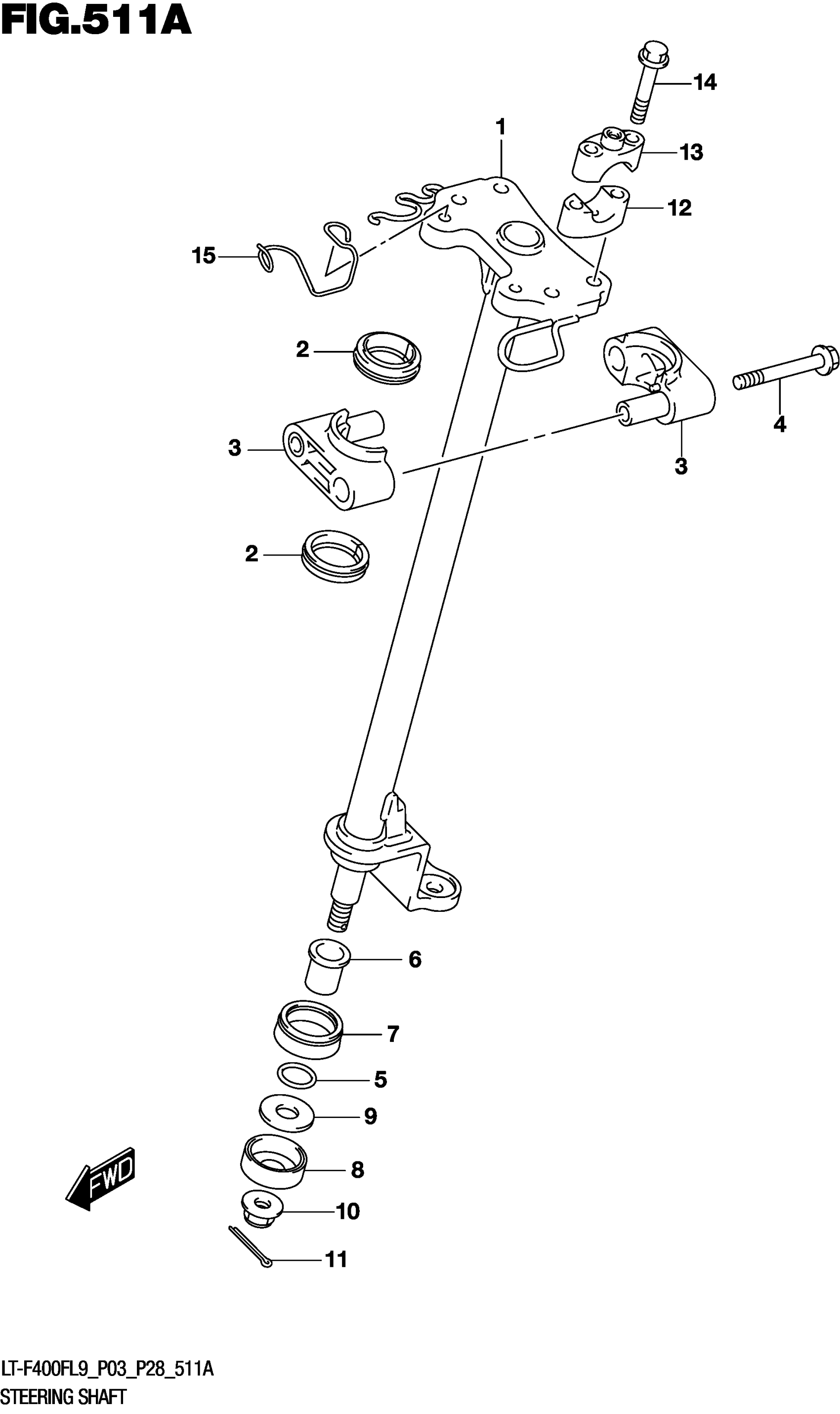

Suzuki LT-F400FL9 (2019) STEERING SHAFT Diagram
