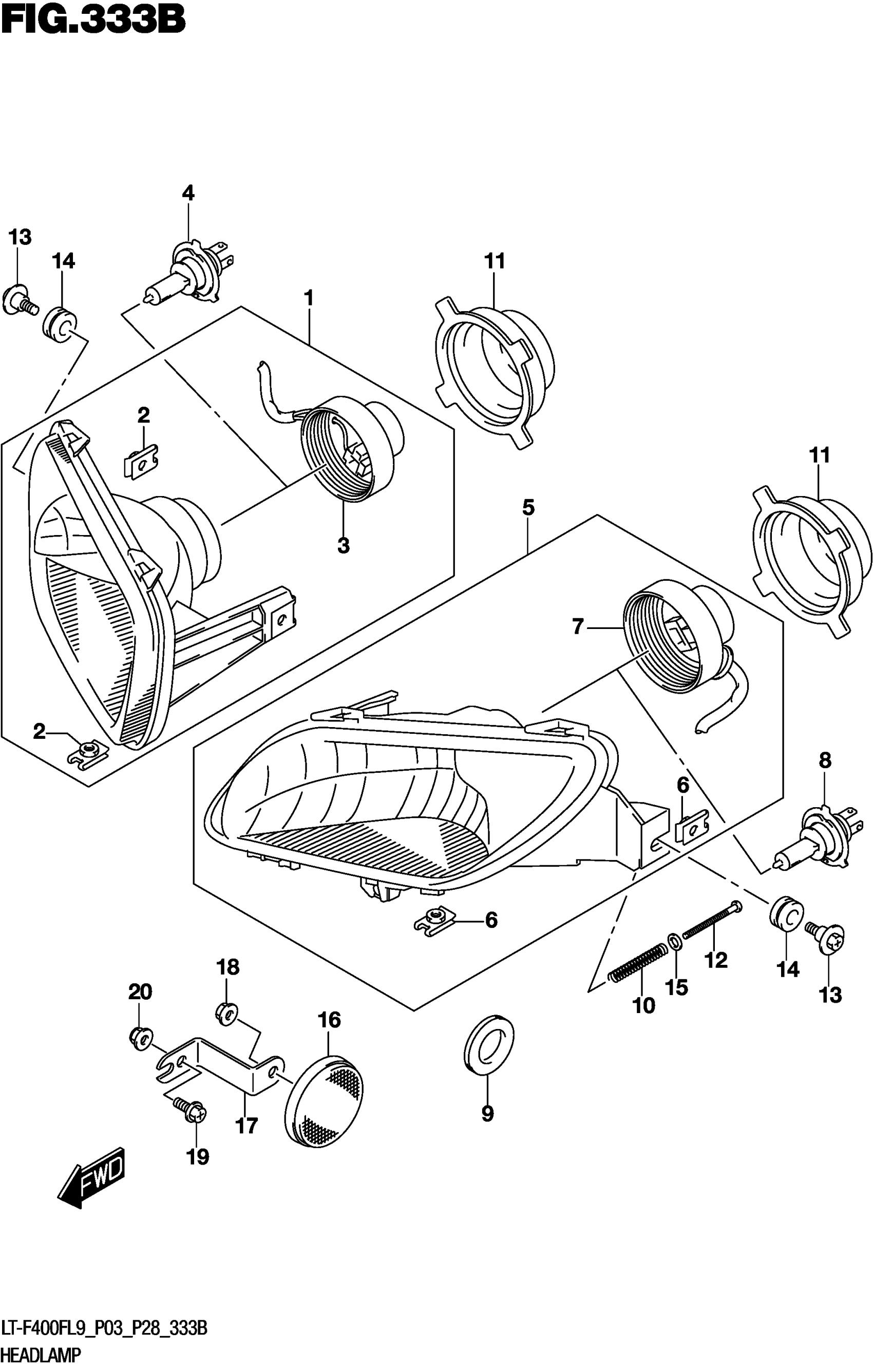

Suzuki LT-F400FL9 (2019) HEADLAMP (LT-F400FL9 P28) Diagram

#

Description
Price

1

HEADLAMP ASSY RH

35100-31G92-999

$102.70

2

.NUT (M6)

35157-31G90

$5.30

3

.CORD ASSY RH

35171-31GM1

$30.10

4

BULB (12V35/35W) This part replaces 09471-12225.

09471-12101

$64.80

5

HEADLAMP ASSY LH

35300-31G92-999

$102.70

6

.NUT (M6)

35157-31G90

$5.30

7

.CORD ASSY LH

35171-31GH1

$38.48

8

BULB (12V35/35W) This part replaces 09471-12225.

09471-12101

$64.80

9

GROMMET

09308-07011

$2.62

10

SPRING

35154-31300

$3.70

11

COVER,HEADLAMP HOUSING

35174-31G00

$10.62

12

SCREW (4X50)

09125-04031

$2.28

13

SCREW (6X22.5)

09139-06118

$3.25

14

CUSHION This part replaces 09320-10043.

09320-10501

$6.23

15

WASHER

08322-0104A

$1.91

16

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

17

BRACKET,FRONT SIDE RR

35956-27H00

$9.12

18

NUT

08316-1005B

$2.50

19

SCREW

02162-0516B

$2.53

20

NUT

08319-3105B

$3.55
