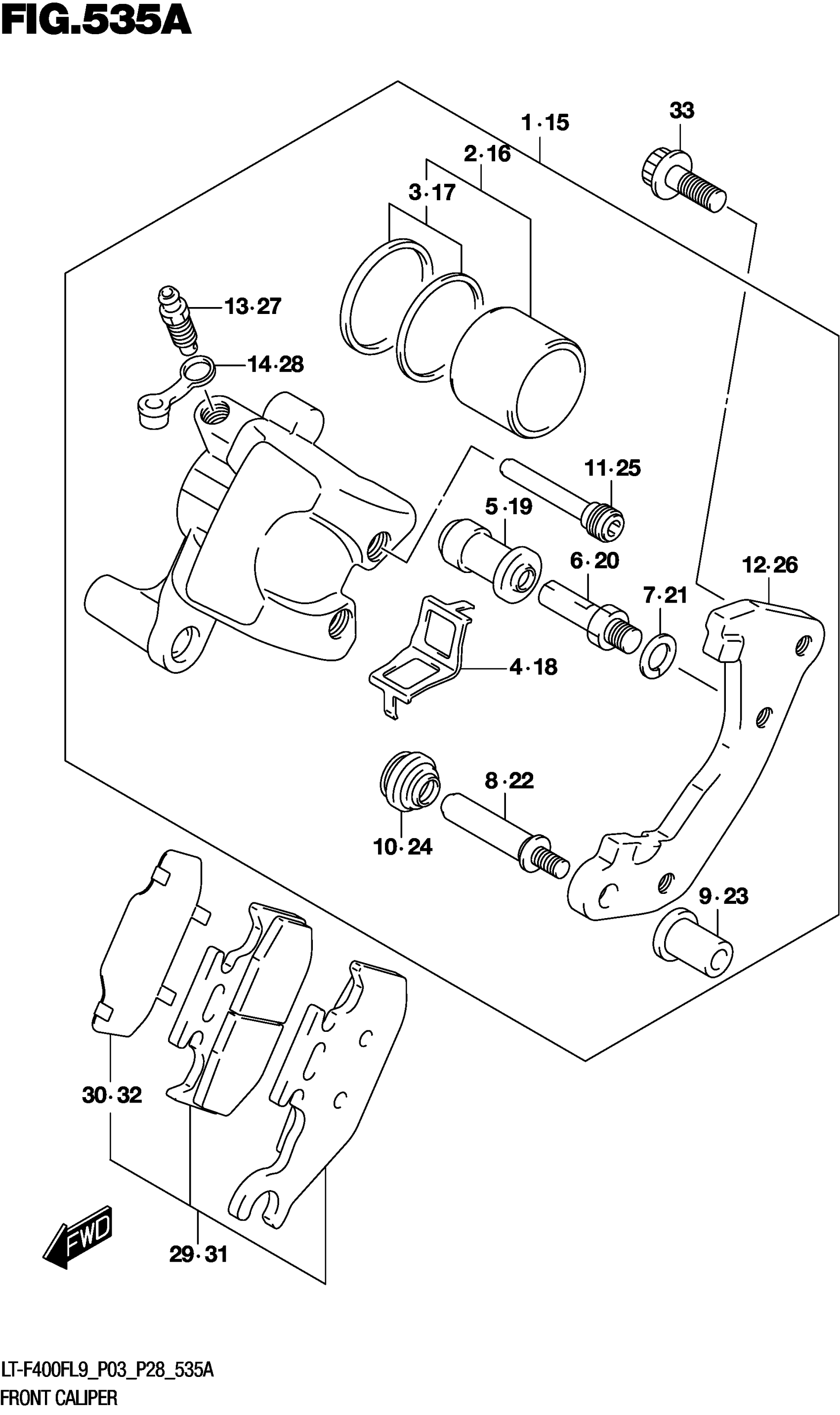

Suzuki LT-F400FL9 (2019) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,FRONT,R

59100-31G00-999

$326.55

2

.PISTON SET

59300-13810

$37.72

3

..SEAL SET,PISTON

69100-13820

$8.52

4

.SPRING

59315-27C00

$14.02

5

.BOOT

59386-13A00

$7.95

6

.BOLT

59382-13A00

$7.69

7

.WASHER

59314-13A00

$2.02

8

.PIN

59387-00B20

$18.55

9

.NUT

59388-00B20

$15.16

10

.BOOT

59303-14500

$5.52

11

.PIN,HANGER

59145-39D00

$21.57

12

.BRACKET,R

59151-31G00

$53.50

13

.BLEEDER

59121-01A00

$8.73

14

.CAP,BLEEDER

59122-46H00

$4.43

15

CALIPER ASSY,FRONT,L

59300-31G01-999

$326.55

16

.PISTON SET

59300-13810

$37.72

17

..SEAL SET,PISTON

69100-13820

$8.52

18

.SPRING

59315-27C00

$14.02

19

.BOOT

59386-13A00

$7.95

20

.BOLT

59382-13A00

$7.69

21

.WASHER

59314-13A00

$2.02

22

.PIN

59387-00B20

$18.55

23

.NUT

59388-00B20

$15.16

24

.BOOT

59303-14500

$5.52

25

.PIN,HANGER

59145-39D00

$21.57

26

.BRACKET,L

59351-31G00

$53.50

27

.BLEEDER

59121-01A00

$8.73

28

.CAP,BLEEDER

59122-46H00

$4.43

29

PAD & SHIM SET,R

59100-31870

$58.55

30

.SHIM

69132-28C00

$9.47

31

PAD & SHIM SET,L

59100-31880

$58.55

32

.SHIM

69132-28C00

$9.47

33

BOLT,8X16 (8X16)

09106-08174

$3.37
