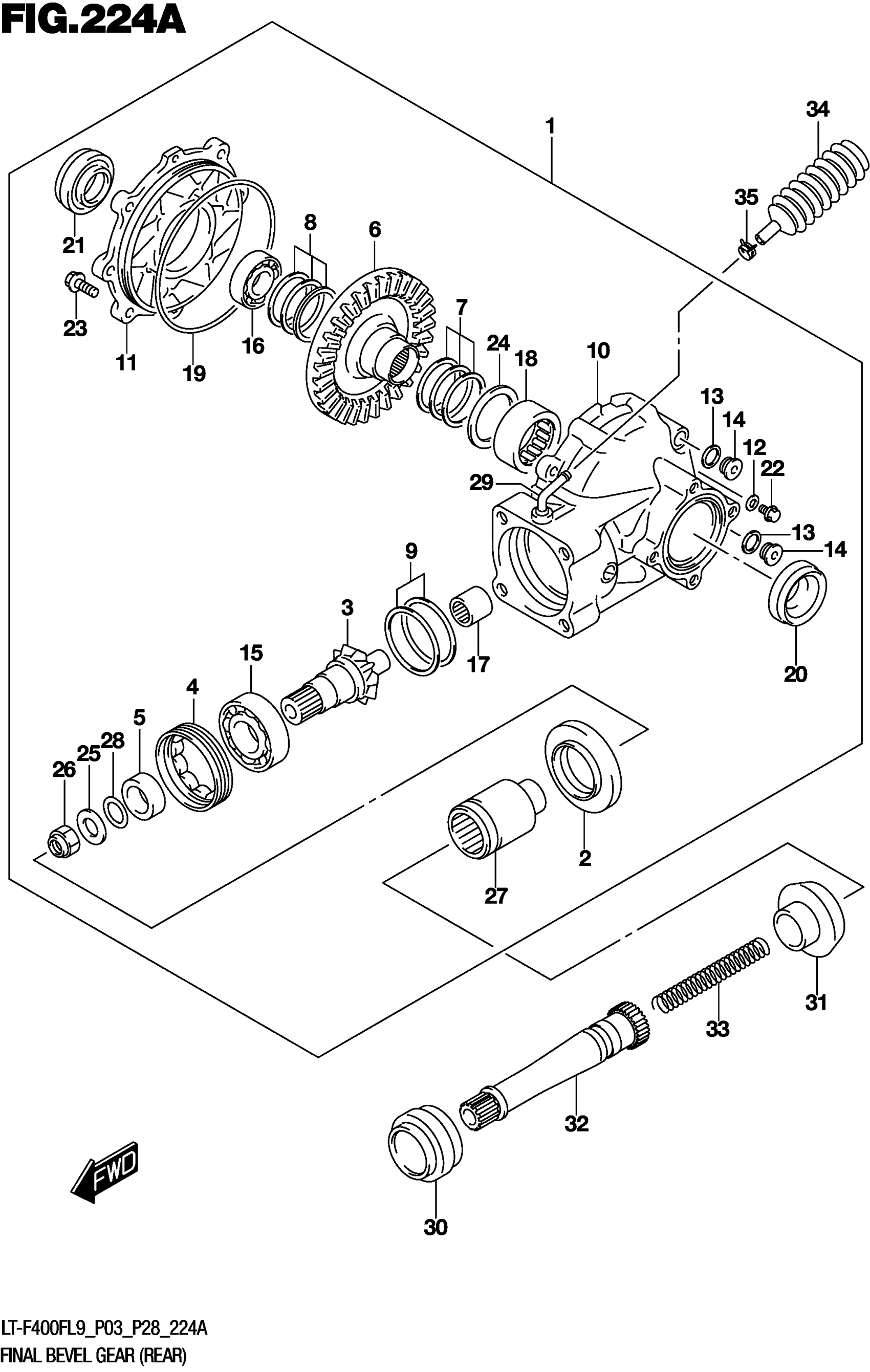

Suzuki LT-F400FL9 (2019) FINAL BEVEL GEAR (REAR) Diagram

#

Description
Price

1

CASE ASSY,REAR FINAL GEAR

27410-38F50

$1,706.95

2

.SEAL,FINAL DRIVE BRG OIL

27156-27H00

$33.73

3

.GEAR,FINAL DRIVE

27311-27HM0

$290.53

4

.STOPPER,FINAL DRIVE BEARING

27312-38F00

$52.73

5

.SPACER,REAR FINAL DRIVE

27316-38FM0

$27.40

6

.GEAR,FINAL DRIVEN

27321-27HM0

$348.92

7

.SHIM SET,FINAL DRIVEN GEAR ( | T:0.30/0.35/0.40/0.50/0.60

27326-09810

$15.27

8

.SHIM SET,FINAL DRIVEN GEAR ( | T:0.30/0.35/0.40/0.50/0.60

27326-18810

$15.00

9

.SHIM SET,FINAL DRIVE GEAR (T | T:0.30/0.35/0.40/0.50/0.60

27445-24810

$28.18

10

.CASE,REAR FINAL GEAR

27450-27HM0

$684.15

11

.CASE,REAR FINAL DRIVEN ,RH

27461-38FM0

Unavailable

12

GASKET (6.2X13X1.2)

09168-06018

$1.77

13

GASKET (16X22X2)

09168-16002

$1.91

14

PLUG (16X8)

09248-16012

$4.64

15

.BEARING,FINAL DRIVE GEAR

27405-38FN0

$86.82

16

.BEARING,FINAL DRIVEN,RH

27405-38FP0

$113.25

17

.BEARING,FINAL DRIVE PILOT

27405-38FR0

$62.48

18

.BEARING,FINAL DRIVEN,LH

27405-38FS0

$72.73

19

.O RING,BEARING CASE,RH

27405-38FT0

$16.65

20

.SEAL,OIL (38X54X6)

09283-38009

$17.33

21

.SEAL,OIL,42X62X7 (42X62X7)

09283-42011

$12.61

22

.BOLT,OIL CHECK

27401-38FM0

$3.70

23

.BOLT,REAR FINAL GEAR

27401-38FN0

Unavailable

24

.WASHER,FINAL DRIVEN,LH

27407-38FN0

$9.67

25

WASHER (16X30X3)

09160-16026

$5.00

26

NUT

09159-16003

$4.00

27

.COUPLING,RR FINAL DRIVE FINA

27171-27HM0

$227.05

28

.O RING,COUPLING

27405-27HM0

$41.63

29

.UNION

09364-08009

$9.50

30

BOOT,RR PROP SHAFT This part replaces 27153-27H00.

27153-27H01

$4.60

31

BOOT,JOINT SHAFT This part replaces 27153-27H20.

27153-27H21

$10.73

32

SHAFT,REAR PROPELLER

27155-27H10

$62.59

33

SPRING,REAR PROPELLER SHAFT

27192-31G10

$5.98

34

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$18.50

35

CLIP (ID:8.6)

09401-08411

$1.78
