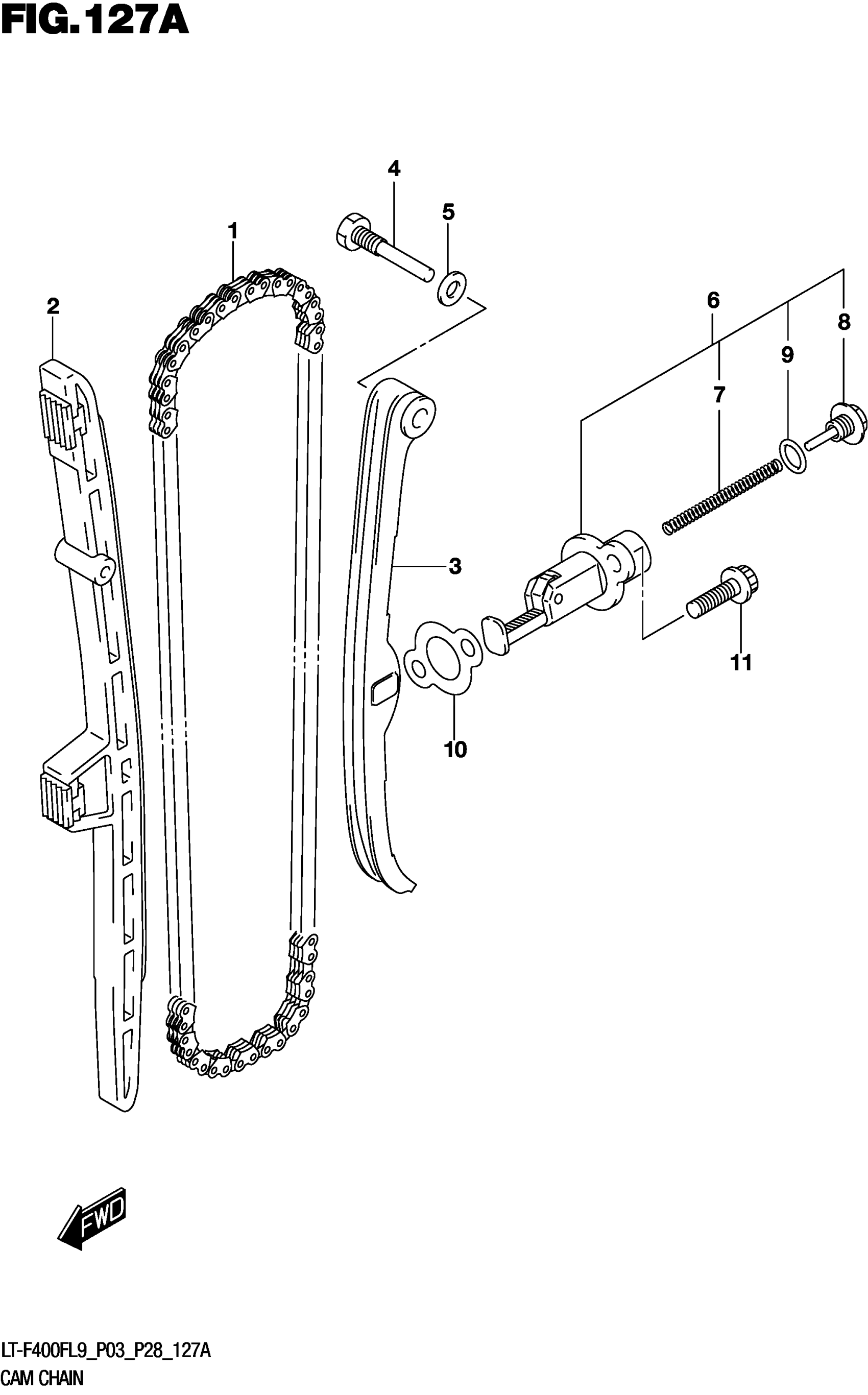

Suzuki LT-F400FL9 (2019) CAM CHAIN Diagram

#

Description

Price

1

CHAIN,CAM SHAFT DRIVE (108LE)

12760-19B71

$87.24

2

GUIDE,CAM CHAIN This part replaces 12771-27H00.

12771-27H01

$34.75

3

TENSIONER,CAM CHAIN This part replaces 12811-14D10.

12811-14D11

$53.04

4

BOLT, CAM CHAIN TENSIONER

12812-32400

$3.71

5

GASKET (8.2X14X1)

09168-08016

$1.65

6

ADJUSTER ASSY,TENSIONER

12830-29B11

$121.55

7

.SPRING

12833-29B00

$4.10

8

.PLUG,ADJUSTER

12834-26B00

$18.02

9

.O-RING

12832-02A00

$2.82

10

.GASKET,TENSIONER ADJUSTER This part replaces 12837-14D00.

12837-19B10

$2.73

11

BOLT

07130-0620A

$2.50
