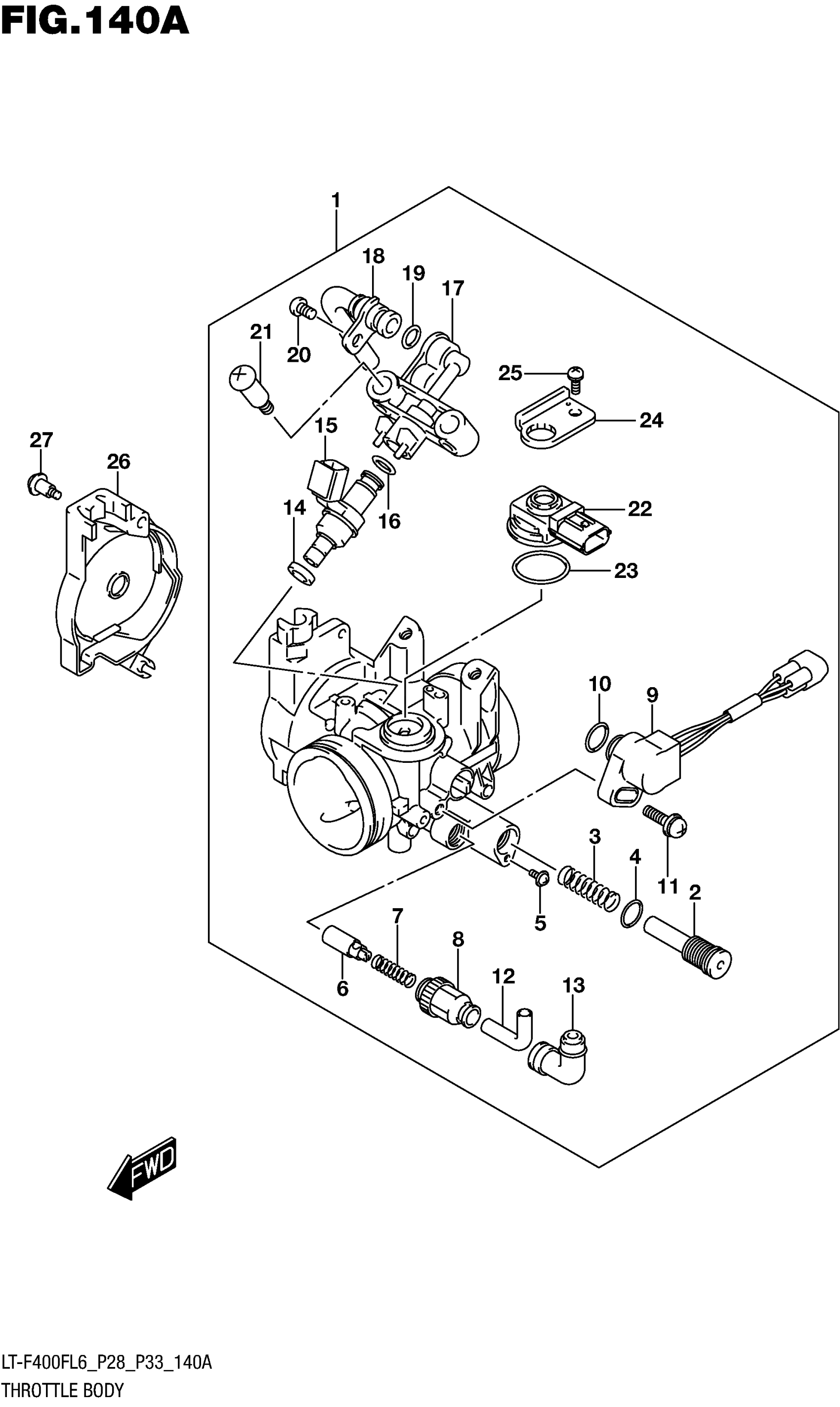

Suzuki LT-F400FL6 (2016) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY,THROT This part replaces 13400-27H11.

13400-27H13

$576.70

2

.SCREW

13279-27H00

$12.88

3

.SPRING

13271-14G00

Unavailable

4

.O RING

13295-14G00

$3.37

5

.SCREW

13601-14G00

$3.03

6

.STARTER VALVE

13411-28H00

$41.68

7

.SPRING

13271-45G00

$6.17

8

.HOLDER, CABLE

13581-45G00

$3.62

9

SENSOR,POSITION This part replaces 13580-27H11.

13580-27H12

$120.00

10

.O RING

13575-40F00

$4.09

11

.SCREW

13605-40F00

$3.71

12

.GUIDE, CABLE

13579-45G00

$12.72

13

.CAP

13681-45G00

$5.67

14

.RING,SEAL

15722-21H00

$11.25

15

.INJECTOR ASSY

15710-21H10

$229.60

16

.O-RING

15721-21H00

$9.09

17

.PIPE, FUEL

13471-27H00

$34.00

18

.JOINT

13685-27H00

$37.47

19

.O-RING

15721-24F00

$9.09

20

.SCREW

13452-45G00

$3.58

21

.SCREW

13601-45G00

$3.25

22

.SENSOR, MAP

15620-05H00

$273.45

23

.O RING This part replaces 15621-05H00.

15621-05H01

$9.05

24

.PLATE, MAP SENSOR

15622-33H00

Unavailable

25

.SCREW

02112-14087

$2.38

26

COVER

13484-45G00

$34.85

27

SCREW

13601-11F00

$2.93
