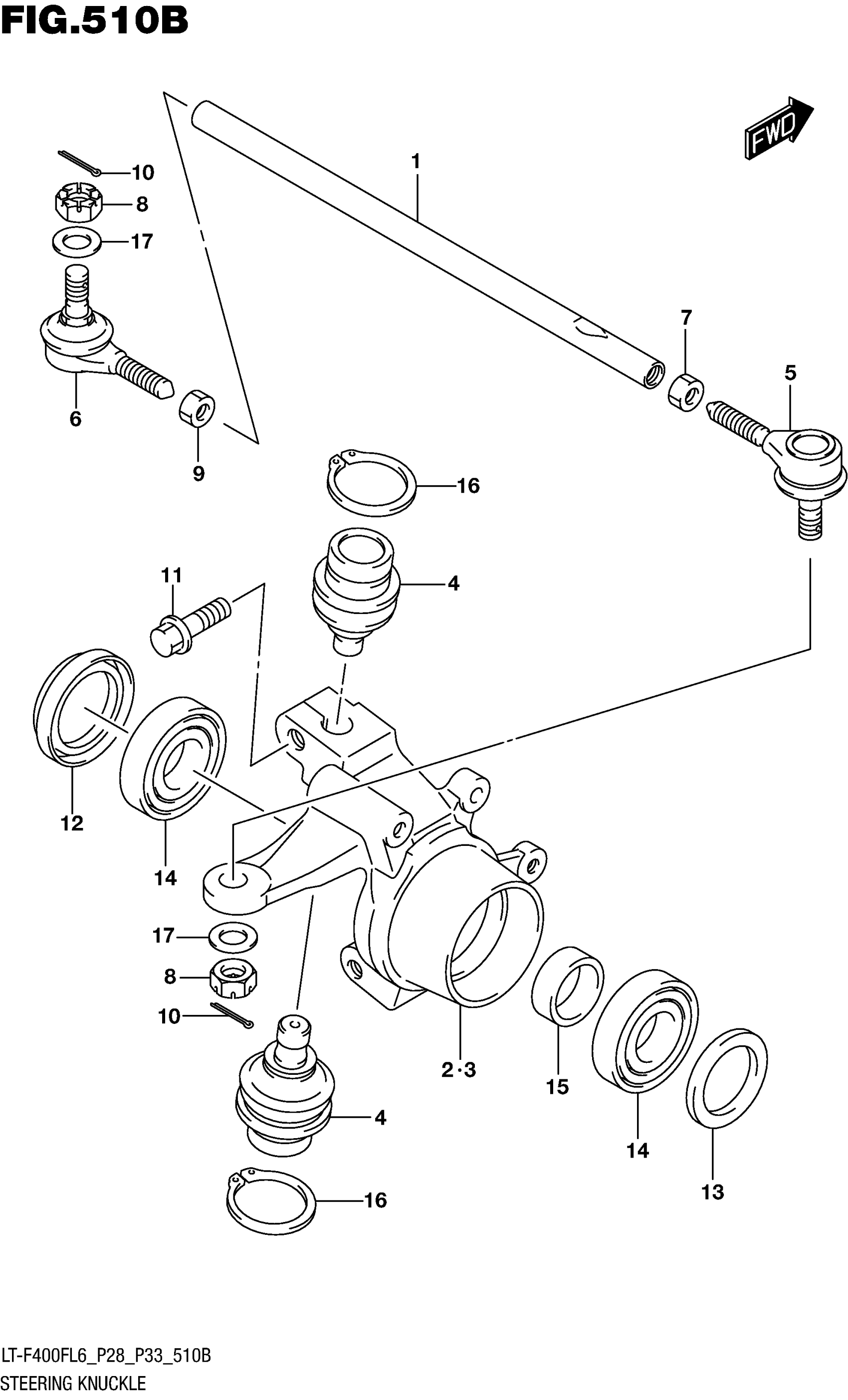

Suzuki LT-F400FL6 (2016) STEERING KNUCKLE (LT-F400FL6 P33) Diagram

Description

Price

TIE-ROD,STEERING

51281-27H00

$53.58

KNUCKLE,STEERING,R This part replaces 51231-27H00.

51231-27H10

$135.29

KNUCKLE,STEERING,L This part replaces 51241-27H00.

51241-27H10

$182.57

END,KNUCKLE STEERING

51210-38F00

$64.70

ROD, END RH

51260-21G00

$65.40

ROD, END LH

51270-21G00

$88.25

NUT, TIE-ROD RH

51283-21G00

$4.70

NUT

08314-4010B

$2.58

NUT

09140-10027

$1.54

COTTER PIN

04111-2020A

$1.25

BOLT, KNUCKLE (10X30)

51233-09F00

$5.38

OIL SEAL (38X55X8)

09283-38012

$13.70

OIL SEAL (38X55X9)

09283-38022

$12.10

BEARING

08123-60067

$27.08

SPACER,HUB BEARING

54731-03G00

$11.13

CIRCLIP

08331-31309

$2.68

WASHER (10.5X19X2)

09160-10082

$1.66
