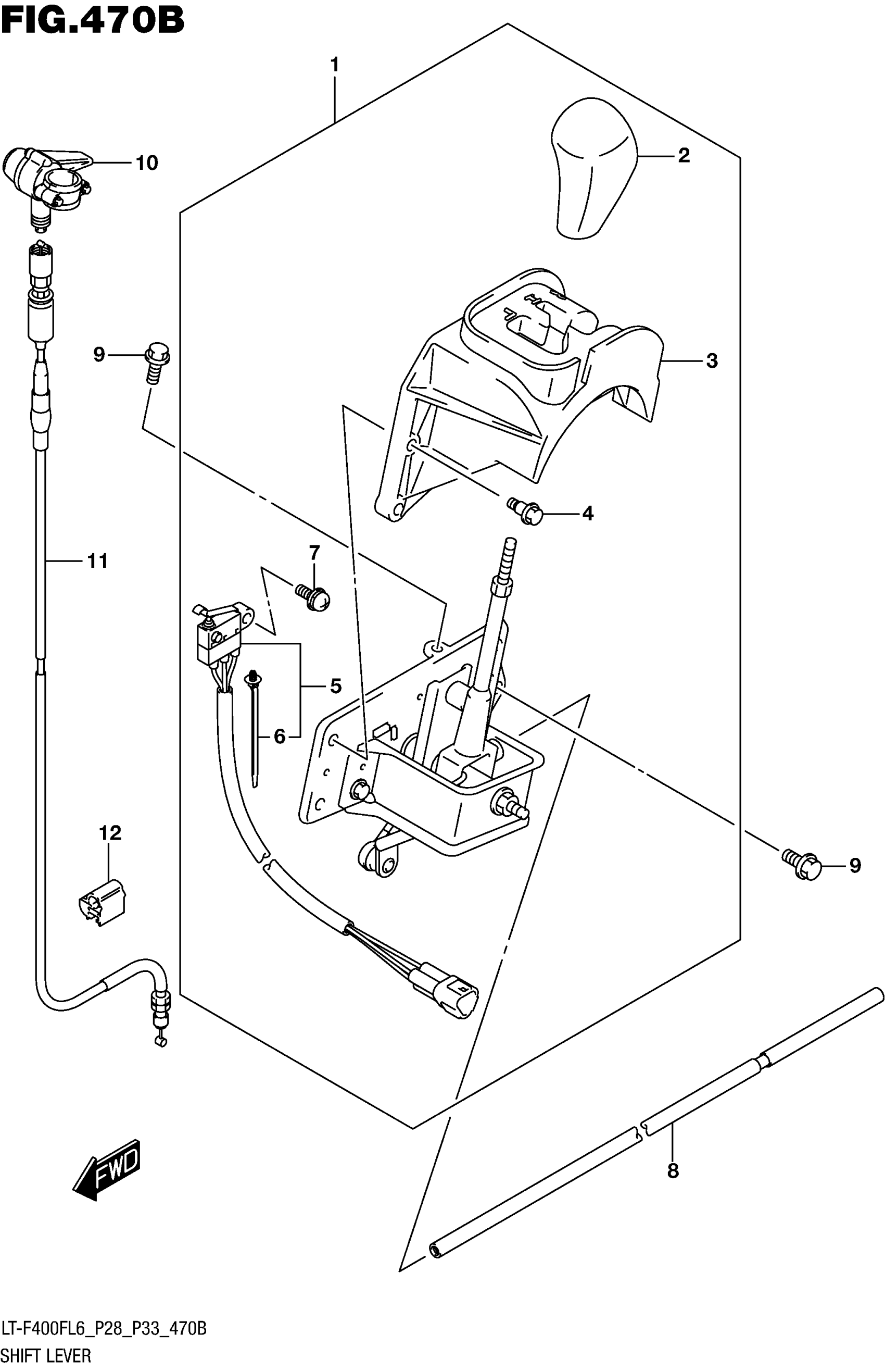

Suzuki LT-F400FL6 (2016) SHIFT LEVER (LT-F400FL6 P33) Diagram

#

Description
Price

1

LEVER ASSY, TRANSMISSION

57800-27H21

$290.62

2

.KNOB,T/M LEVER

57830-27H00

$30.62

3

.COVER, T/M LEVER GATE

57941-27H00

$42.70

4

.BOLT (6X20.6)

09111-06079

$5.11

5

.SWITCH ASSY,REVERSE This part replaces 57960-03G10.

57960-03G11

$62.12

6

..CLAMP (L:154)

09407-17403

$4.91

7

.SCREW

02112-7310A

Unavailable

8

ROD,T/M LEVER

57911-27H00

Unavailable

9

BOLT

01550-0830A

$3.04

10

LEVER, TRANSFER

57920-38F20

$220.10

11

CABLE,TRANSFER SHIFT

58690-27H00

$73.40

12

CLAMP

09403-10405

$3.15
