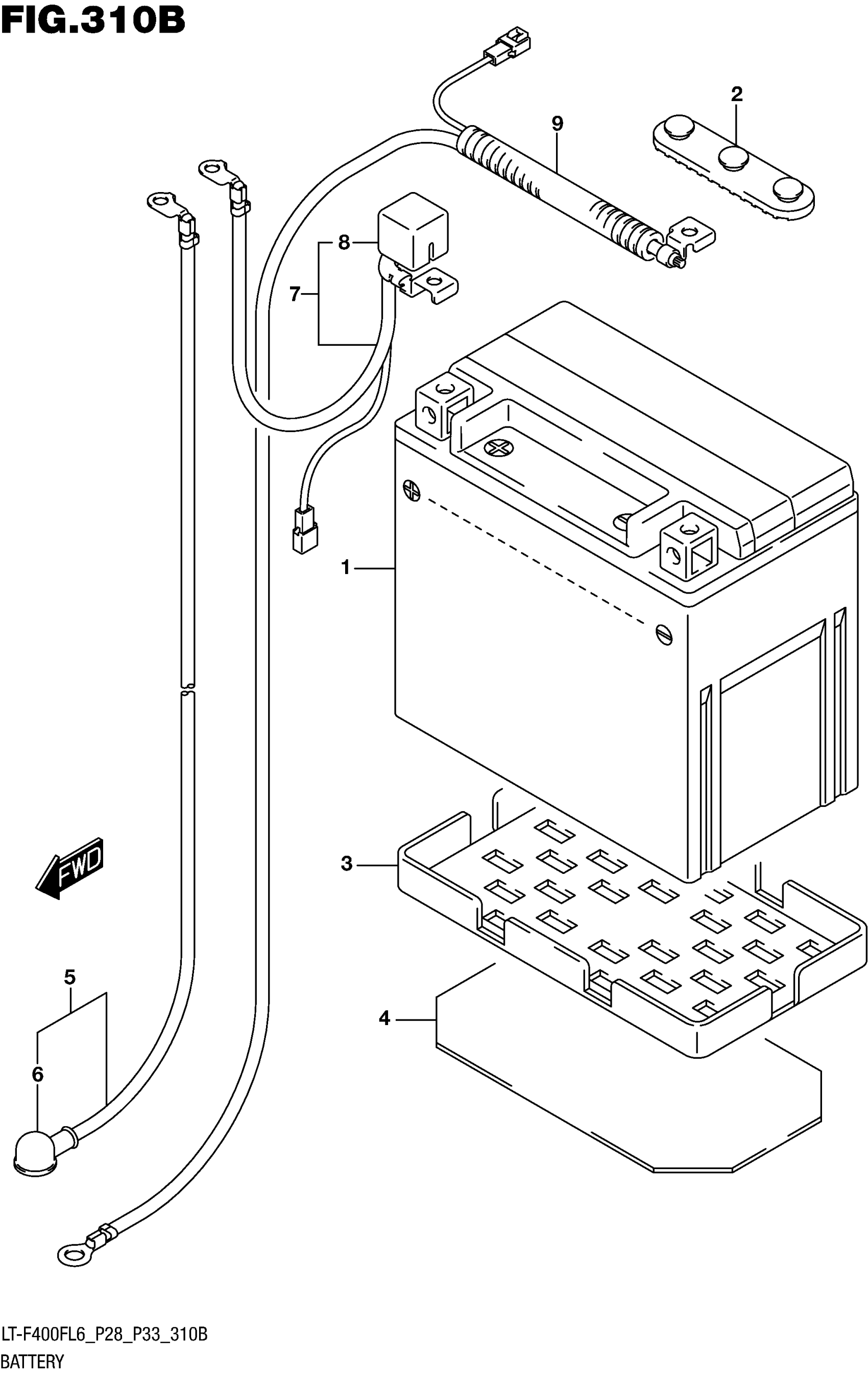

Suzuki LT-F400FL6 (2016) BATTERY (LT-F400FL6 P33) Diagram

#

Description

Price

1

BATTERY ASSY This part replaces 33610-38F01.

33610-38F02

$131.02

1

BATTERY ASSY This part replaces 33610-38F01.

33610-38F02

$131.02

2

PROTECTOR, BATTERY

33652-07G00

$3.81

3

PROTECTOR,BATTERY

33652-16G00

$13.50

4

PROTECTOR, BATTERY

33652-27H00

Unavailable

5

WIRE,STARTER MOTOR LEAD This part replaces 33810-27H20.

33810-27H21

$71.57

6

.CAP,STARTER MOTOR

33624-27H00

$7.53

7

WIRE,BATTERY PLUS LEAD This part replaces 33820-27H20.

33820-27H21

$39.57

8

.CAP, BATTERY PLUS

33624-16E00

$6.77

9

WIRE, BATTERY MINUS LEAD

33860-27H10

$77.50
