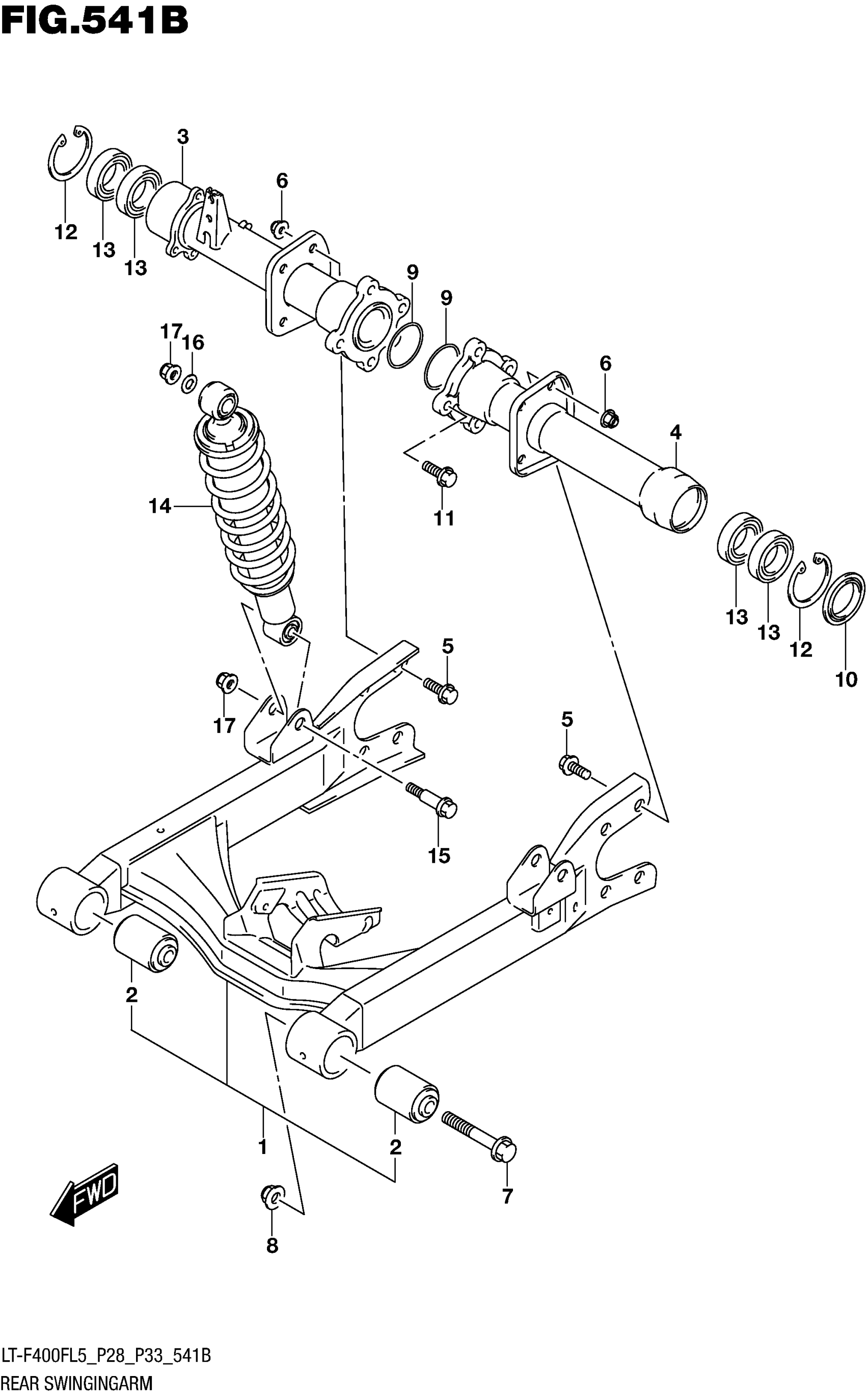

Suzuki LT-F400FL5 (2015) REAR SWINGINGARM (LT-F400FL5 P33) Diagram

Description

Price

SWINGINGARM SET,REAR

61101-27850

$285.82

BUSH, PIVOT

61230-27H00

$62.88

HOUSING,RR AXLE This part replaces 61300-27H00.

61300-27H10

$370.01

HOUSING,RR AXLE LH

61400-27H00

$233.67

BOLT (10X20)

09103-10216

$4.17

NUT

09159-10115

$3.55

BOLT (12X80)

09113-12002

$17.15

NUT

09159-12054

$7.44

O RING (D:3.1,ID:69.4)

09280-70005

$6.23

OIL SEAL (38X55X9)

09283-38022

$13.01

BOLT (10X30)

09103-10421

$4.25

CIRCLIP

08331-41559

$3.70

BEARING

08123-60067

$29.13

ABSORBER ASSY, REAR SHOCK (BLACK)

62100-27H10-019

$199.17

BOLT (10X48)

09103-10126

$4.50

WASHER (10.5X30X2.3)

09160-10501

$2.33

NUT

08319-3110B

$3.87
