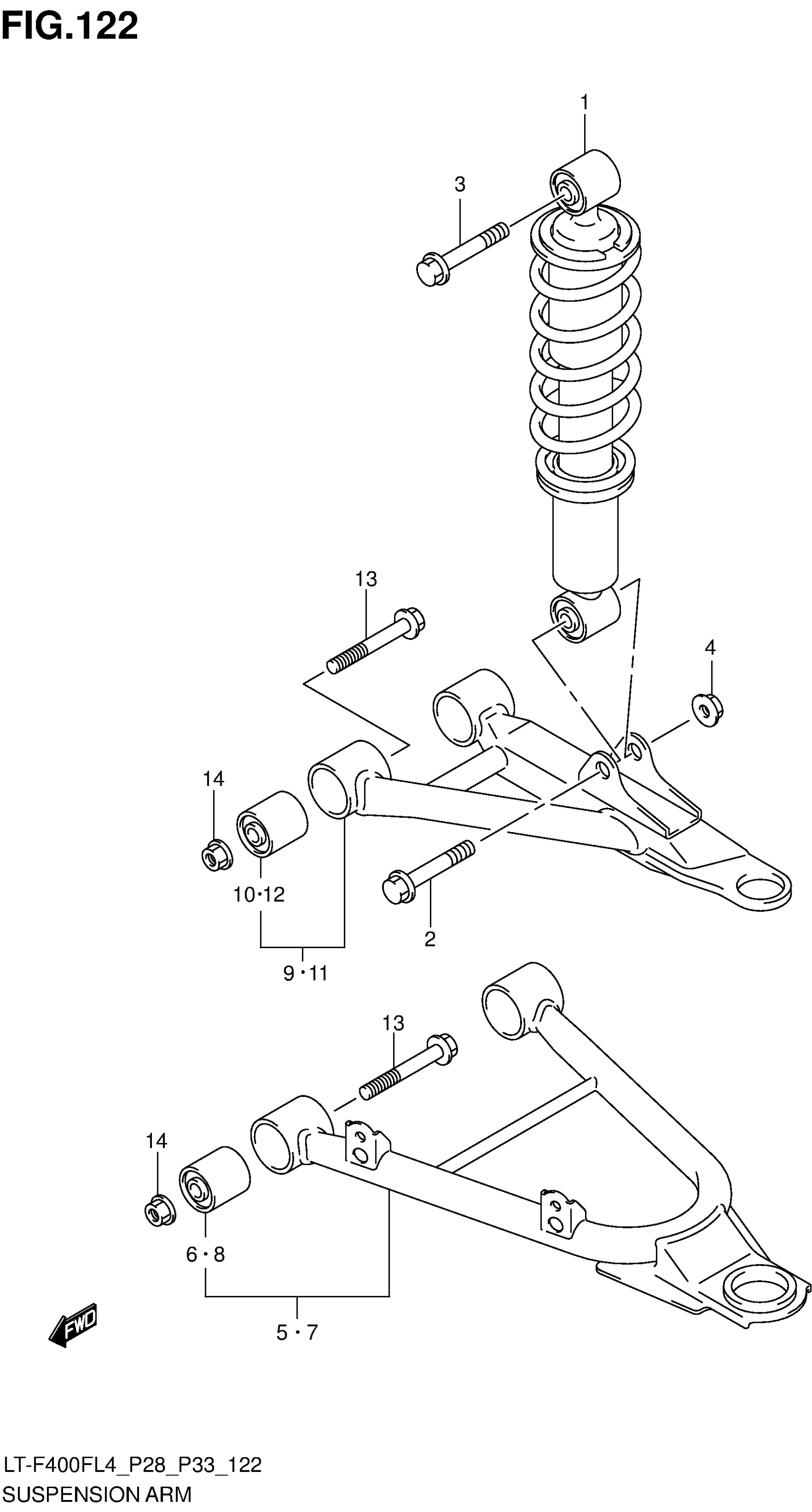

Suzuki LT-F400FL4 (2014) SUSPENSION ARM (LT-F400FZL4 P33) Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK (BLACK)

52100-27H10-019

$160.48

2

BOLT (10X48) | LOWER

09103-10126

$4.50

3

BOLT (10X48) | UPPER

09103-10352

$5.88

4

NUT

08319-3110A

$2.73

5

ARM SET,SUSPENSION LOWER RH

52410-27820

$316.10

6

BUSH

09319-10055

$21.02

7

ARM SET,SUSPENSION LOWER LH

52420-27820

$310.27

8

BUSH

09319-10055

$21.02

9

ARM SET,SUSPENSION UPPER RH

52430-27810

$298.63

10

BUSH

09319-10055

$21.02

11

ARM SET,SUSPENSION UPPER LH

52440-27810

$298.63

12

BUSH

09319-10055

$21.02

13

BOLT (10X60)

09103-10301

$5.98

14

NUT

09159-10115

$3.55
