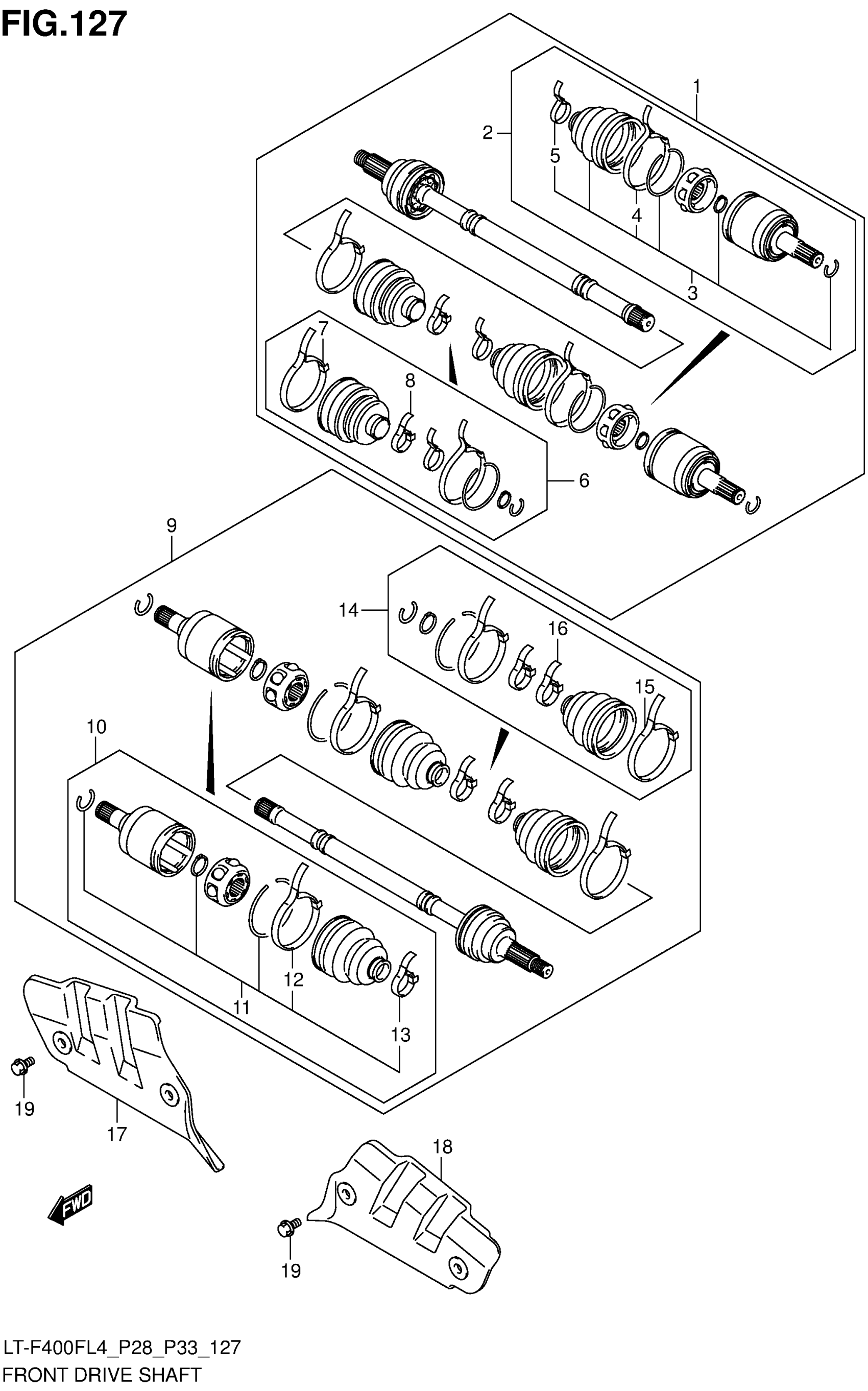

Suzuki LT-F400FL4 (2014) FRONT DRIVE SHAFT Diagram

#

Description
Price

1

SHAFT ASSY, FRONT DRIVE RH This part replaces 54901-27H00.

54901-27H01

$427.70

2

.JOINT SET This part replaces 54933-38F13.

54933-38F14

$203.32

3

..BOOT SET, INNER This part replaces 54931-38F13.

54931-38F14

$104.35

4

BAND, BOOT

44121-38F20

Unavailable

5

BAND, BOOT

44124-38F00

Unavailable

6

.BOOT SET, OUTER This part replaces 54930-27H00.

54930-27H01

$142.67

7

BAND, BOOT

44121-38F30

Unavailable

8

BAND, BOOT

44124-38F00

Unavailable

9

SHAFT ASSY, FRONT DRIVE LH This part replaces 54902-27H00.

54902-27H01

$405.78

10

.JOINT SET This part replaces 54933-38F13.

54933-38F14

$203.32

11

..BOOT SET, INNER This part replaces 54931-38F13.

54931-38F14

$104.35

12

BAND, BOOT

44121-38F20

Unavailable

13

BAND, BOOT

44124-38F00

Unavailable

14

.BOOT SET, OUTER This part replaces 54930-27H00.

54930-27H01

$142.67

15

BAND, BOOT

44121-38F30

Unavailable

16

BAND, BOOT

44124-38F00

Unavailable

17

PROTECTOR,FRONT DRIVE SHAFT,R This part replaces 54903-27H00.

54903-27H01

$14.05

18

PROTECTOR,FR D/ This part replaces 54904-27H00.

54904-27H00-291

$16.05

19

BOLT (6X12)

09111-06085

$4.54
