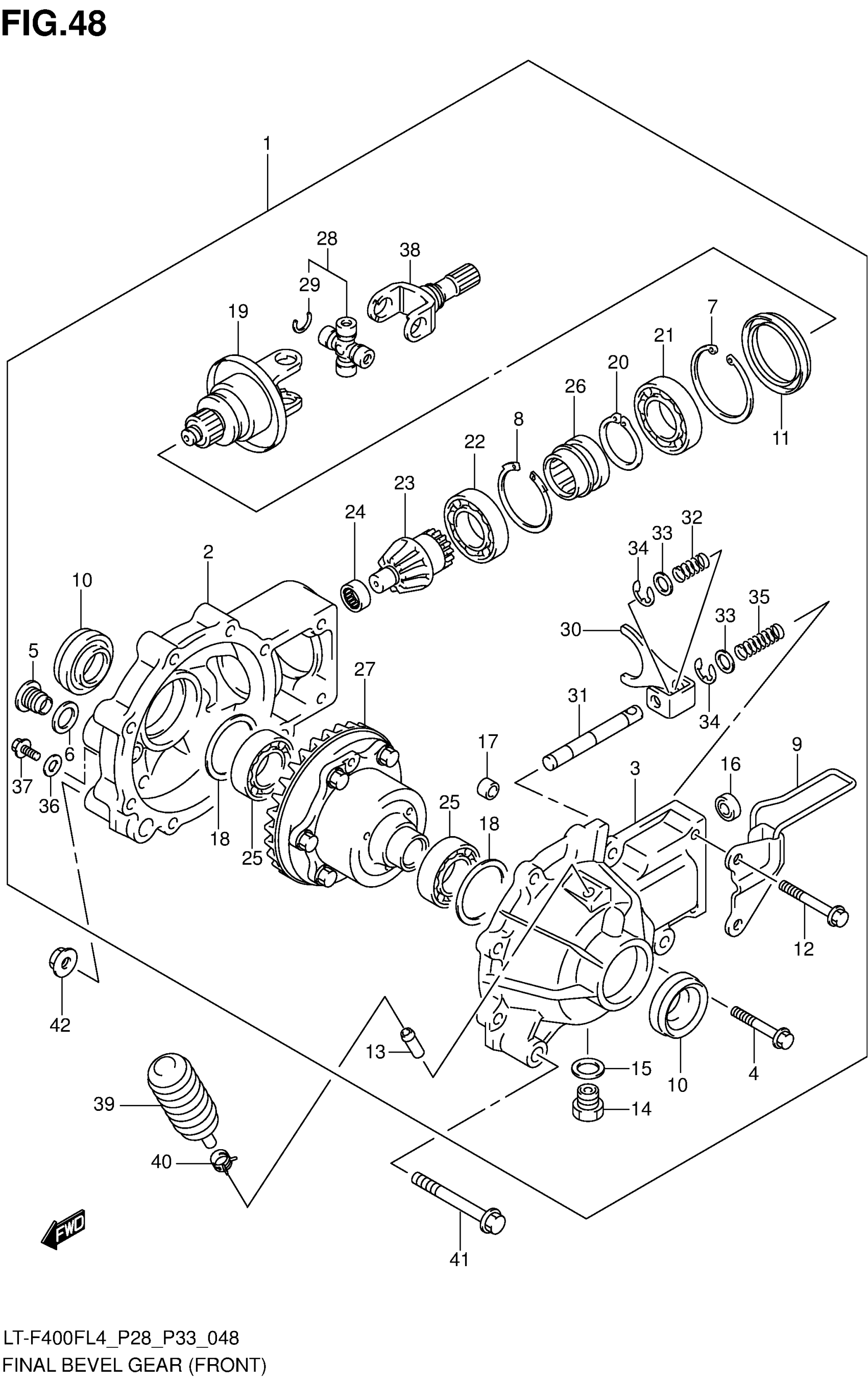

Suzuki LT-F400FL4 (2014) FINAL BEVEL GEAR (FRONT) (LT-F400FL4 P28) Diagram

#

Description
Price

1

CASE ASSY,FR DIFFERENTIAL This part replaces 27400-38F50.

27400-38F51

$1,463.97

2

HOUSING, FINAL DRIVE FR

27451-38FB1

Unavailable

3

COVER, FINAL DRIVE FR

27461-38FA1

Unavailable

4

BOLT (8X25)

27401-38FA1

Unavailable

5

PLUG

27409-38FA0

$3.85

6

WASHER

27407-31GA0

$8.37

7

RING SNAP

27403-38FA0

$5.43

8

RING SNAP

27403-38FB0

$5.43

9

BRACKET ASSY, SHIFT

27951-38FA0

$19.13

10

OIL SEAL

27406-38FD0

$7.01

11

OIL SEAL

27406-38FB0

$8.98

12

BOLT (8X50)

27401-38FB0

$3.58

13

UNION

09364-08003

$3.42

14

PLUG

27409-38FB0

Unavailable

15

WASHER

27407-38FB0

$2.56

16

OIL SEAL

27406-38FC0

Unavailable

17

PIN

27404-31GA0

Unavailable

18

SHIM SET | T:0.70/0.75/0.80/0.85/0.90/0.95/ 1.00/1.05/1.10/1.15/1.20/1.25/ 1.30/1.35/1.40/1.45

27445-38FA0

$127.22

19

YOKE ASSY

27130-03GA0

$126.03

20

SNAP RING

27403-38FC0

$3.68

21

BEARING

27405-38FA0

$27.27

22

BEARING

27405-38FB0

$28.69

23

PINION,DRIVE This part replaces 27311-11HA0.

27311-11HA1

$274.80

24

BEARING

27405-38FC0

$11.32

25

BEARING

27405-38FD0

$14.94

26

SLEEVE

27371-31GA0

$86.17

27

GEAR ASSY

27320-27HA0

$511.03

28

JOINT SET,UNIVERSAL This part replaces 27200-19810.

27200-19811

$54.50

29

CIRCLIP

09380-20016

$2.34

30

FORK, SHIFT

27941-38FA0

$17.05

31

ROD, SHIFT

27921-38FA0

Unavailable

32

SPRING, SHIFT

27402-38FA0

$3.17

33

WASHER

27407-38FC0

Unavailable

34

E RING

27403-38FD0

$2.90

35

SPRING, RETURN

27402-38FB0

Unavailable

36

WASHER

27407-38FD0

$2.80

37

PLUG

27409-38FC0

$6.03

38

YOKE, SHAFT JOINT

27151-27HA0

$157.03

39

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$16.94

40

CLIP

09401-08411

$1.77

41

BOLT (10X110)

09103-10148

$6.26

42

NUT

08319-3110A

$2.73
