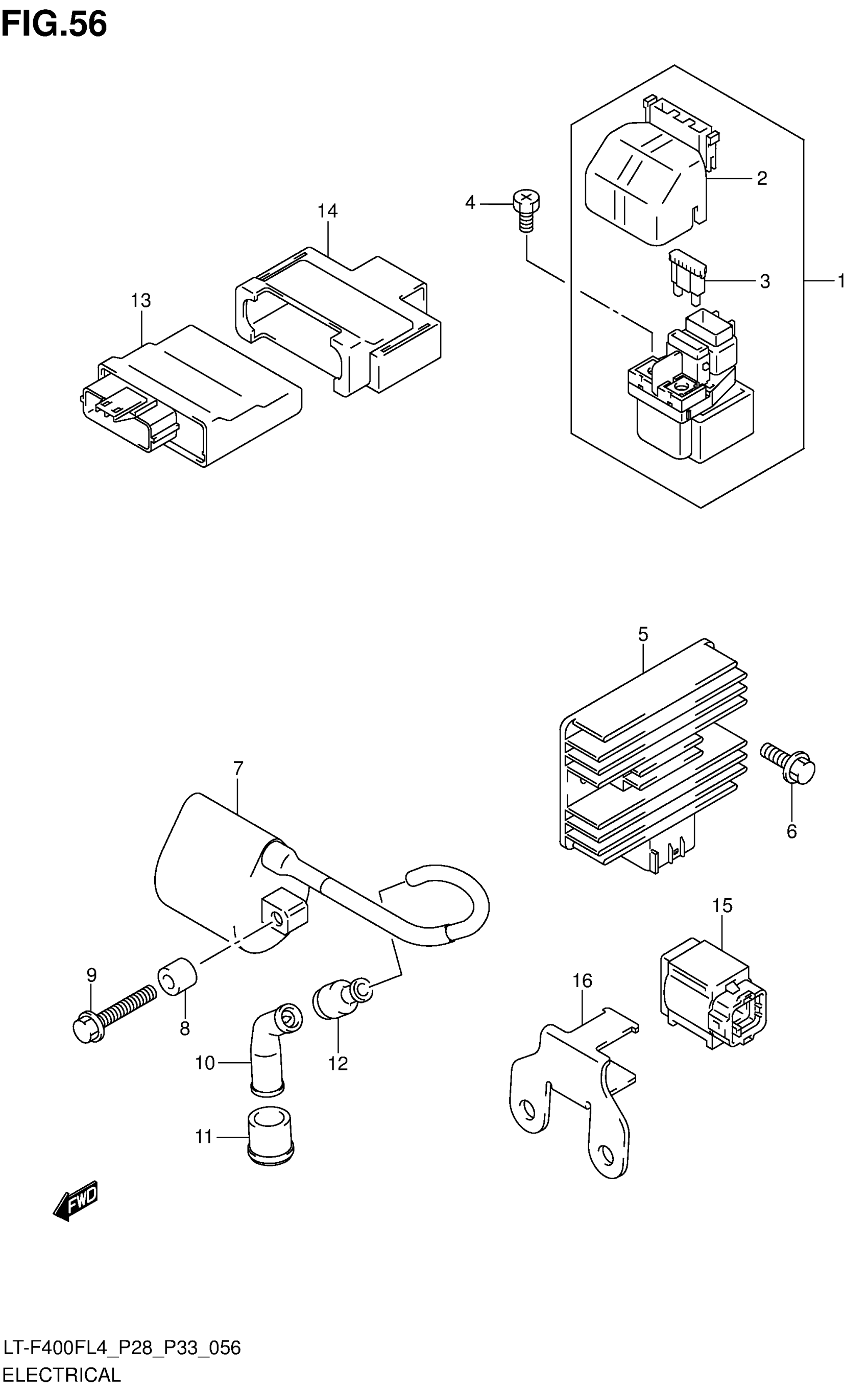

Suzuki LT-F400FL4 (2014) ELECTRICAL (LT-F400FL4 P33) Diagram

Description

Price

RELAY ASSY,STARTING MOTOR

31800-38G10

$93.08

COVER

31861-38G00

$5.52

FUSE (30A)

09481-30501

$2.42

SCREW (6X8)

09128-06013

$1.28

RECTIFIER ASSY

32800-42F10

$227.26

BOLT

01550-0620A

$2.01

COIL ASSY,IGNITION This part replaces 33410-26G00.

33410-26G01

$134.47

SPACER (6X12X10)

09180-06095

$4.28

BOLT

01547-0630B

$2.80

CAP, SPARK PLUG

33510-43010

$23.90

SEAL, SPARK PLUG

33541-44D00

$5.07

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.15

CONTROL UNIT, FI

32920-27HA0

Unavailable

HOLDER, FI CONTROL UNIT

32981-27H00

Unavailable

SENSOR ASSY,FUEL CUT

33960-06G10

$86.01

BRACKET,FUEL CUT SENSOR

33961-27H00

Unavailable
