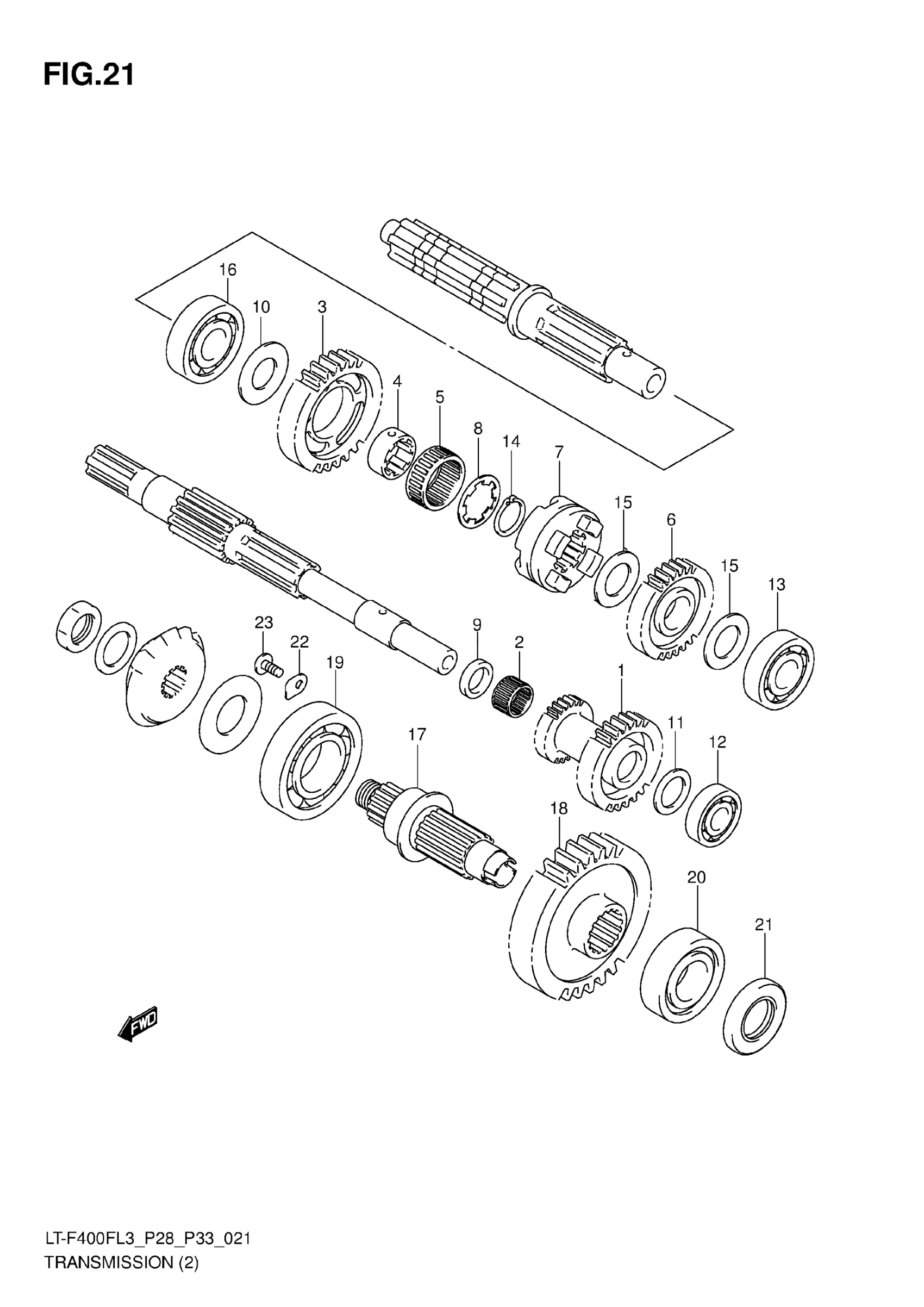

Suzuki LT-F400FL3 (2013) TRANSMISSION (2) Diagram

#

Description
Price

1

GEAR, SUB T/M IDLE (NT:13/19)

29150-38F80

$189.27

2

BEARING (17X21X12.8)

09263-17001

$21.82

3

GEAR, SUB T/M DRIVE NO.1 (NT:27)

29211-38F80

$145.36

4

BUSH,SUB T/M DRIVE NO.1 GEAR

29215-38F80

$32.77

5

BEARING (30X35X16)

09263-30056

$34.17

6

GEAR, SUB T/M DRIVE NO.2 (NT:21)

29220-38F50

$128.72

7

DOG,SUB T/M SELECT SLIDING

29231-38F80

Unavailable

8

LOCK WASHER

09167-25017

$3.87

9

SPACER (17X24X4.5)

09180-17076

$9.58

10

SHIM (25X40X1)

09181-25251

$3.87

11

SHIM (15X26X1)

09181-15195

$2.57

12

BEARING This part replaces 09262-15022.

09262-15062

$18.30

13

BEARING (20X47X14)

09262-20139

$44.97

14

SNAP RING

09380-25003

$3.04

15

WASHER

08211-20301

$2.35

16

BEARING (25X52X14)

09262-25124

$37.54

17

SHAFT,SUB T/M OUTPUT

29121-38F60

Unavailable

18

GEAR, SUB T/M DRIVEN (NT:35)

29311-38F60

Unavailable

19

BEARING (35X72X17)

09262-35038

$46.10

20

BEARING (25X52X13)

09262-25136

$45.80

21

SEAL,OIL (25X45X5)

09283-25076

$10.19

22

RETAINER, SEC DRIVE SFT

24741-21A00

$2.81

23

SCREW (6X12)

09125-06122

$2.44
