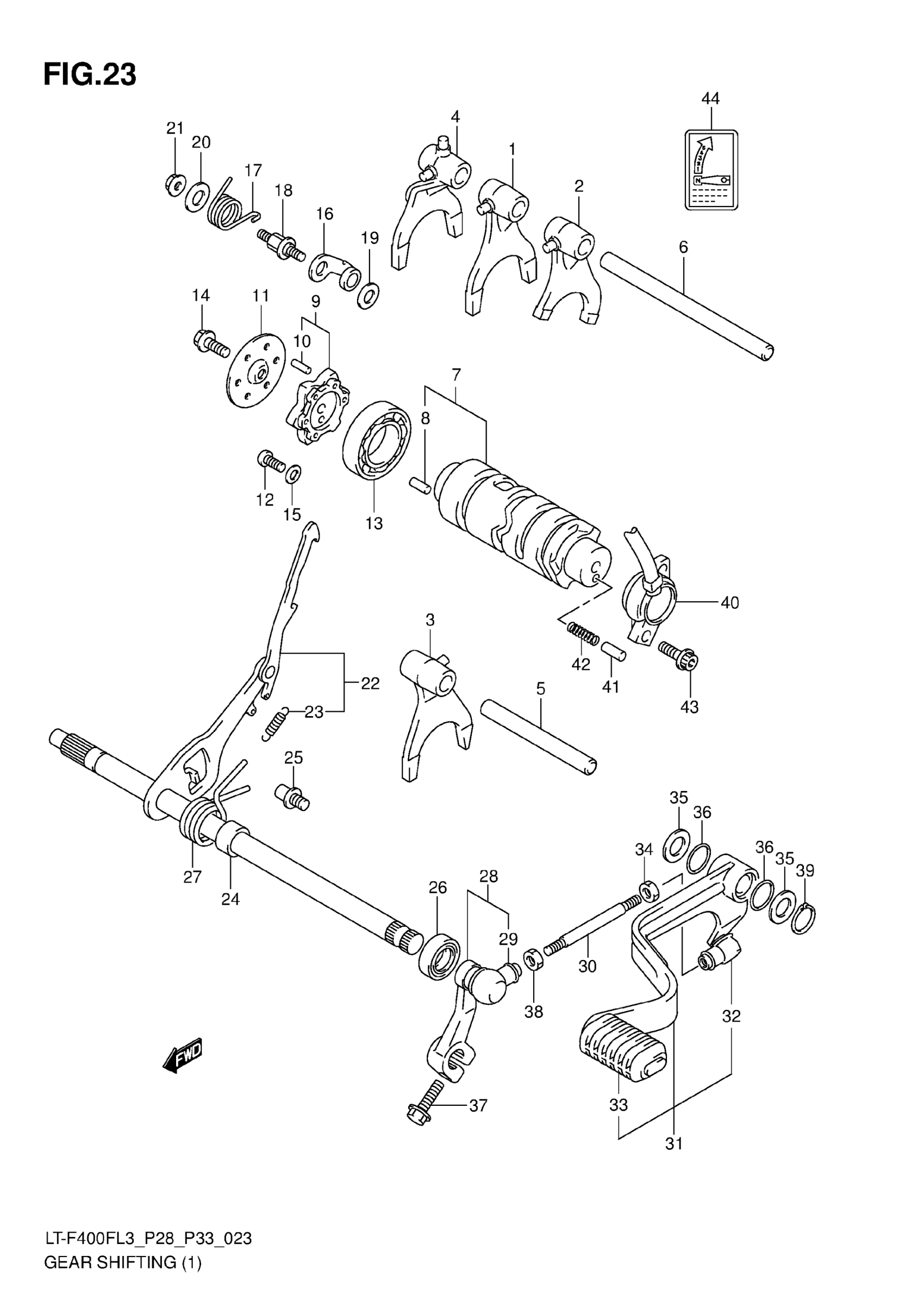

Suzuki LT-F400FL3 (2013) GEAR SHIFTING (1) (LT-F400FL3 P28) Diagram

#

Description
Price

1

FORK, GEAR SHIFT, NO.1

25211-19B00

$87.70

2

FORK, GEAR SHIFT, NO.2

25221-19B00

$74.56

3

FORK, GEAR SHIFT, NO.3

25231-19B00

$87.70

4

FORK, GEAR SHIFT, REVERSE

25240-38F60

$106.45

5

SHAFT, GEAR SHIFT FORK NO.2

25411-14311

$23.07

6

SHAFT, GEAR SHIFT FORK NO.1

25411-18900

$23.07

7

CAM,GEAR SHIFT

25310-38F50

Unavailable

8

PIN (4X13.8)

04221-04089

$1.49

9

PLATE,GEAR SHIFT CAM

25380-44D00

$34.20

10

ROLLER (4X13.8)

09261-04002

$1.72

11

GUIDE, GEAR SHIFT

25382-44D00

$7.20

12

SCREW (6X12)

09125-06122

$2.44

13

BEARING (25X47X8)

09262-25006

$25.54

14

BOLT

01500-0620B

$2.15

15

WASHER

08211-06165

Unavailable

16

STOPPER, GEAR SHIFT CAM

25350-24B00

$14.85

17

SPRING. GEAR SHIFT CAM STOPPER

25355-38F60

Unavailable

18

SUPPORT, GEAR SHIFT

25356-12C00

$17.37

19

WASHER

08211-06141

$1.59

20

WASHER

08211-06181

$1.80

21

NUT

08316-1006B

$2.50

22

SHAFT,GEAR SHIFT

25510-38F60

$123.73

23

SPRING

25518-38F50

$5.17

24

SPACER, GEAR SHIFT

25516-44D00

Unavailable

25

STOPPER, GEAR SHIFT

25671-36A00

$5.40

26

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.70

27

SPRING

09444-26025

$5.33

28

ARM,GEAR SHIFT LINK This part replaces 25520-38F60.

25520-38F61

$74.28

29

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

30

ROD,GEAR SHIFT LINK

25525-26B10

$8.98

31

LEVER ASSY,GEAR SHIFT This part replaces 25600-27H50.

25600-27H51

$92.80

32

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

33

RUBBER

25652-24401

$5.05

34

NUT

09140-06025

$2.05

35

SHIM (13X20X0.8)

09181-13003

$2.28

36

O RING (D:1.9,ID:9.8)

09280-10016

$3.37

37

BOLT

01550-0620B

$2.39

38

NUT

08310-0006B

$2.34

39

CIRCLIP

08331-3113A

$2.23

40

BASE ASSY, NEUT SW TERMINAL

37720-38F10

$123.98

41

PIN (5X15.5)

09209-05011

$2.20

42

SPRING

09440-04010

$1.54

43

BOLT

07120-0516A

$2.28

44

LABEL, GEAR SHIFT PATTERN

68392-24220

$3.25
