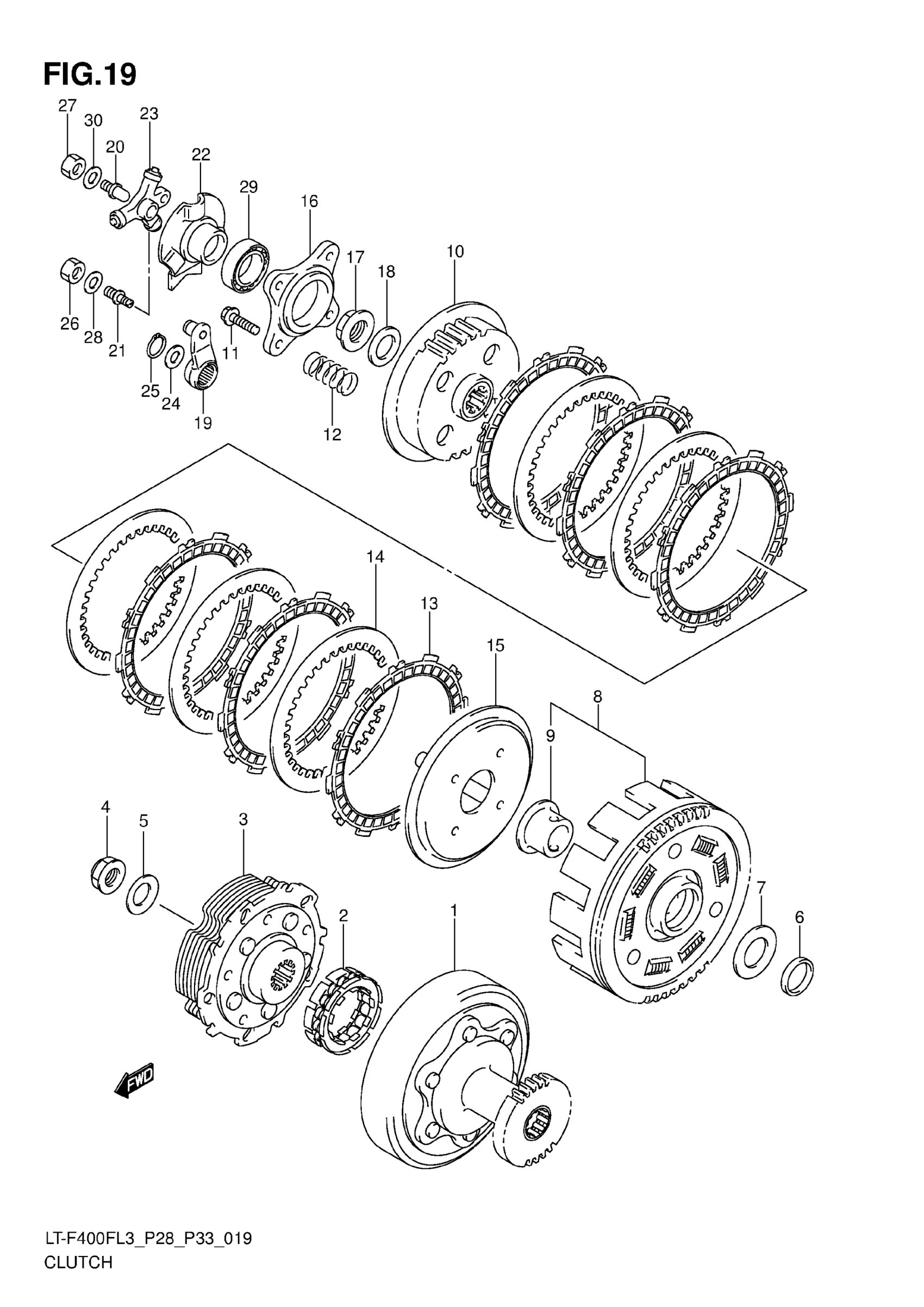

Suzuki LT-F400FL3 (2013) CLUTCH Diagram

#

Description
Price

1

HOUSING, STARTER CLUTCH (NT:28)

21120-27H50

$319.20

2

CLUTCH,PRI DRIVE ONE WAY

21273-44D00

$138.71

3

SHOE,STARTER CLUTCH

21500-27H50

$409.02

4

NUT,STARTER CLUTCH SHOE

21518-44D00

$13.74

5

WASHER

09164-20007

$4.60

6

SPACER (22X28X3.5)

09180-22045

Unavailable

7

WASHER

08211-22423

$4.00

8

GEAR ASSY, PRIMARY DRIVEN (NT:67)

21200-38850

$312.80

9

SPACER, PRIMARY DRIVEN

21251-44D00

Unavailable

10

HUB, CLUTCH SLEEVE (NT:37)

21411-44D00

$141.12

11

BOLT (6X25)

09103-06099

$2.23

12

SPRING,CLUTCH

21413-38F50

$8.12

13

PLATE, CLUTCH DRIVE (T:3.0)

21441-44D00

$27.87

14

PLATE,CLUTCH DRIVEN (T:1.6)

21451-44D00

$11.28

15

DISK,CLUTCH PRESSURE

21462-44D00

$61.93

16

PLATE, CLUTCH RELEASE (T:12.0)

21465-44D00

$20.09

17

NUT,CLUTCH SLEEVE HUB

21414-44D00

$15.08

18

WASHER

09164-20007

$4.60

19

ARM,CLUTCH RELEASE

23220-03G50

Unavailable

20

BOLT, CLUTCH RLSE ADJ NO.1

23223-44D11

$8.28

21

BOLT, CLUTCH RLSE ADJ NO.2

23224-44D00

$6.70

22

GUIDE,CL RELEASE ROLLER

23230-03G50

$59.87

23

ROLLER ASSY,CLUTCH RELEASE

23250-03G50

Unavailable

24

WASHER

08211-10242

$3.70

25

CIRCLIP

08331-3114A

$1.91

26

NUT

09140-06023

$2.06

27

NUT

09140-08017

$2.27

28

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06079.

09160-06052

$1.49

29

BEARING

08113-69050

$35.66

30

WASHER (8X20X1)

09160-08103

$3.48
