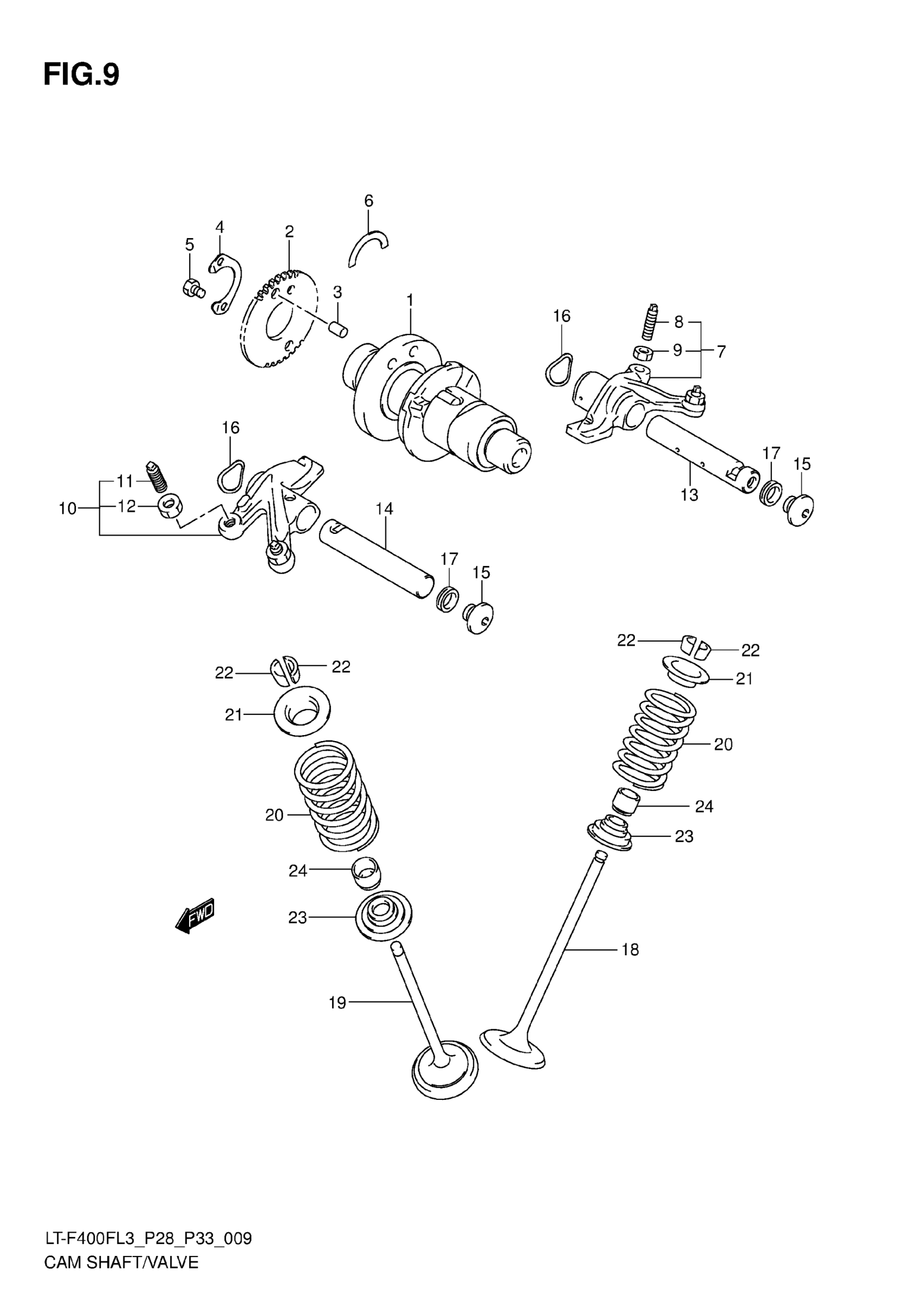

Suzuki LT-F400FL3 (2013) CAM SHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT

12710-27H10

$398.82

2

SPROCKET, CAM DRIVE (NT:34)

12741-38F00

$47.40

3

PIN (5X8)

09261-05005

$1.49

4

WASHER,SPROCKET

12747-44B00

$2.72

5

BOLT (6X10.5)

09100-06166

$3.03

6

C-RING

09390-22002

$2.27

7

ARM, VALVE ROCKER INTAKE

12840-27H00

Unavailable

8

.SCREW,TAPPET ADJUSTING

12842-17C50

$17.94

9

.NUT,TAPPET ADJUSTING

12843-27A00

$2.94

10

ARM, VALVE ROCKER EXHAUST

12850-27H00

$127.37

11

.SCREW,TAPPET ADJUSTING

12842-17C50

$17.94

12

.NUT,TAPPET ADJUSTING

12843-27A00

$2.94

13

SHAFT,VALVE ROCKER ARM,IN

12861-14D50

$30.93

14

SHAFT, ROCKER ARM EXHAUST

12871-14D50

$28.27

15

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

$2.98

16

WASHER

09164-12018

$1.49

17

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

18

VALVE,INTAKE

12911-14D10

$38.13

19

VALVE,EXHAUST

12912-14D01

$60.40

20

SPRING VALVE

12921-27H00

$15.55

21

RETAINER,VALVE SPRING

12931-27A20

$8.12

22

COTTER, VALVE SPRING

12932-27A00

$2.26

23

SEAT,VALVE SPRING

12933-81400

$5.17

24

OIL SEAL (5X10X9.7)

09289-05011

$6.32
