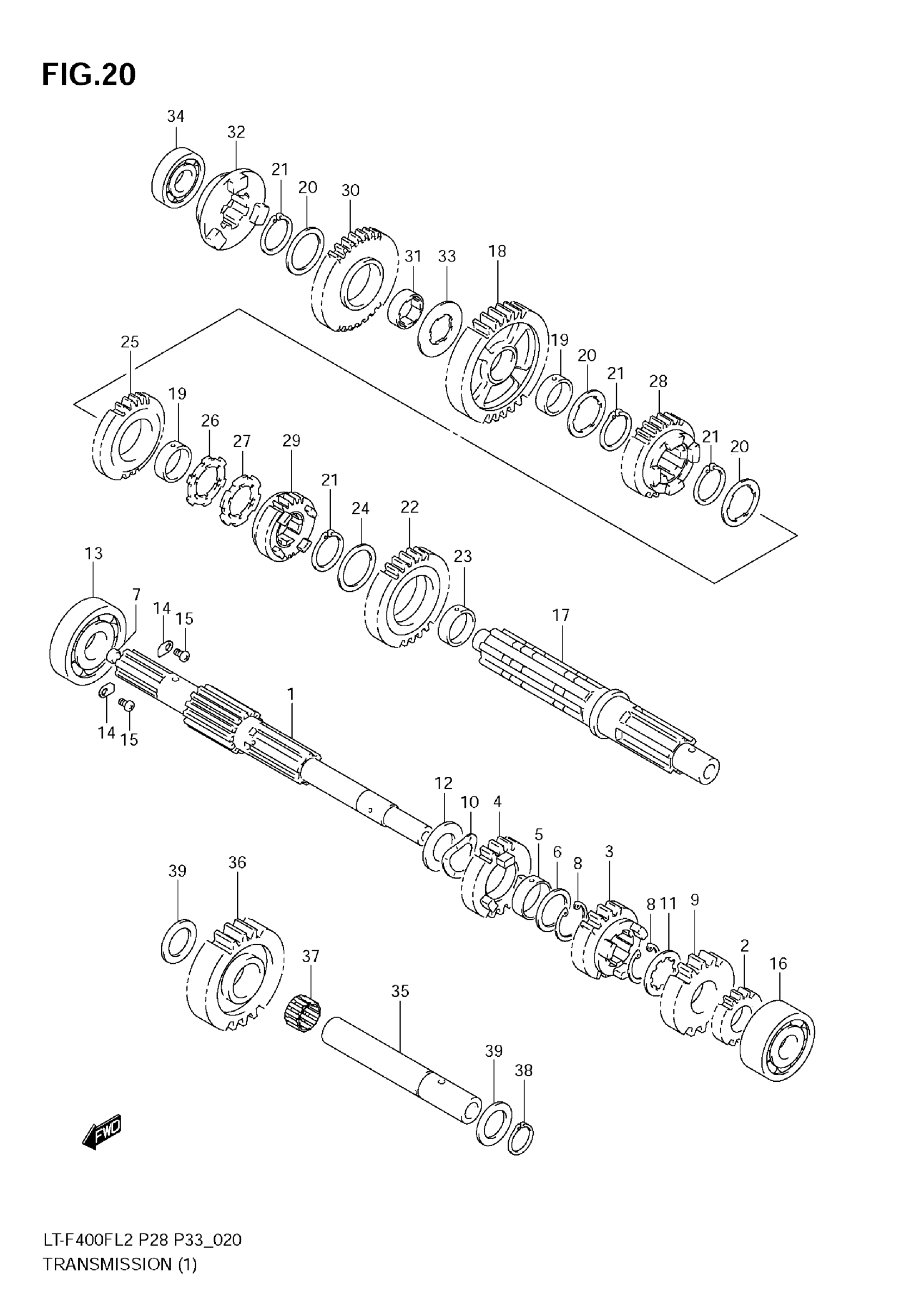

Suzuki LT-F400FL2 (2012) TRANSMISSION (1) Diagram

#

Description
Price

1

COUNTERSHAFT | NT:12

24121-38F51

$283.10

2

GEAR, 2ND DRIVE | NT:15

24221-18A00

$115.77

3

GEAR,3RD DRIVE | NT:18 This part replaces 24231-18A02.

24231-18A03

$119.97

4

GEAR,4TH DRIVE | NT:21 This part replaces 24241-18A10.

24241-18A11

$96.22

5

BUSH (22X26X9)

09300-22008

$14.82

6

SHIM (22X30X1)

09181-22167

$2.96

7

PLUG

09241-10003

$2.47

8

CIRCLIP

09380-22006

$3.10

9

GEAR, 5TH DRIVE | NT:23

24251-18A03

$108.15

10

WASHER

09164-26002

$2.72

11

WASHER (22.1X27X0.5)

09167-22011

$3.23

12

WASHER (22X38X1)

09181-22015

$4.77

13

BEARING (22X50X14)

09262-22018

$25.60

14

RETAINER, CNTR SHAFT BRG

24741-21A00

$2.81

15

SCREW (6X12)

09125-06122

$2.44

16

BEARING (17X40X17.5)

09267-17002

$90.35

17

DRIVE SHAFT

24131-38F50

Unavailable

18

GEAR, 1ST DRIVEN | NT:37

24311-18A02

Unavailable

19

BUSH

24332-24510

$18.67

20

LOCK WASHER

09167-25016

$3.72

21

SNAP RING

09380-25003

$3.04

22

GEAR, 2ND DRIVEN | NT:29

24321-18A01

$113.25

23

BUSH (25X29X8)

09300-25020

$16.87

24

WASHER

08211-25351

$3.72

25

GEAR, 3RD DRIVEN | NT:25

24331-19B01

$108.65

26

WASHER

09169-25001

$2.70

27

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

28

GEAR, 4TH DRIVEN | NT:23

24341-18A02

$110.67

29

GEAR, 5TH DRIVEN | NT:21

24351-18A02

$110.67

30

GEAR, REVERSE DRIVEN | NT:34

24571-38F60

Unavailable

31

BUSH,REVERSE DRIVEN GEAR

24333-18A00

Unavailable

32

DOG,REVERSE

24581-38F60

Unavailable

33

WASHER

09167-25017

$3.87

34

BEARING (17X35X10)

09262-17026

$36.97

35

SHAFT,REVERSE IDLE

24551-38F70

Unavailable

36

GEAR, REVERSE IDLE | NT:29

24561-05G02

Unavailable

37

BEARING (17X21X12.8)

09263-17001

$21.82

38

CIRCLIP This part replaces 08331-3117A.

08331-31179

$1.90

39

SHIM (17X28X1)

09181-17195

$3.07
