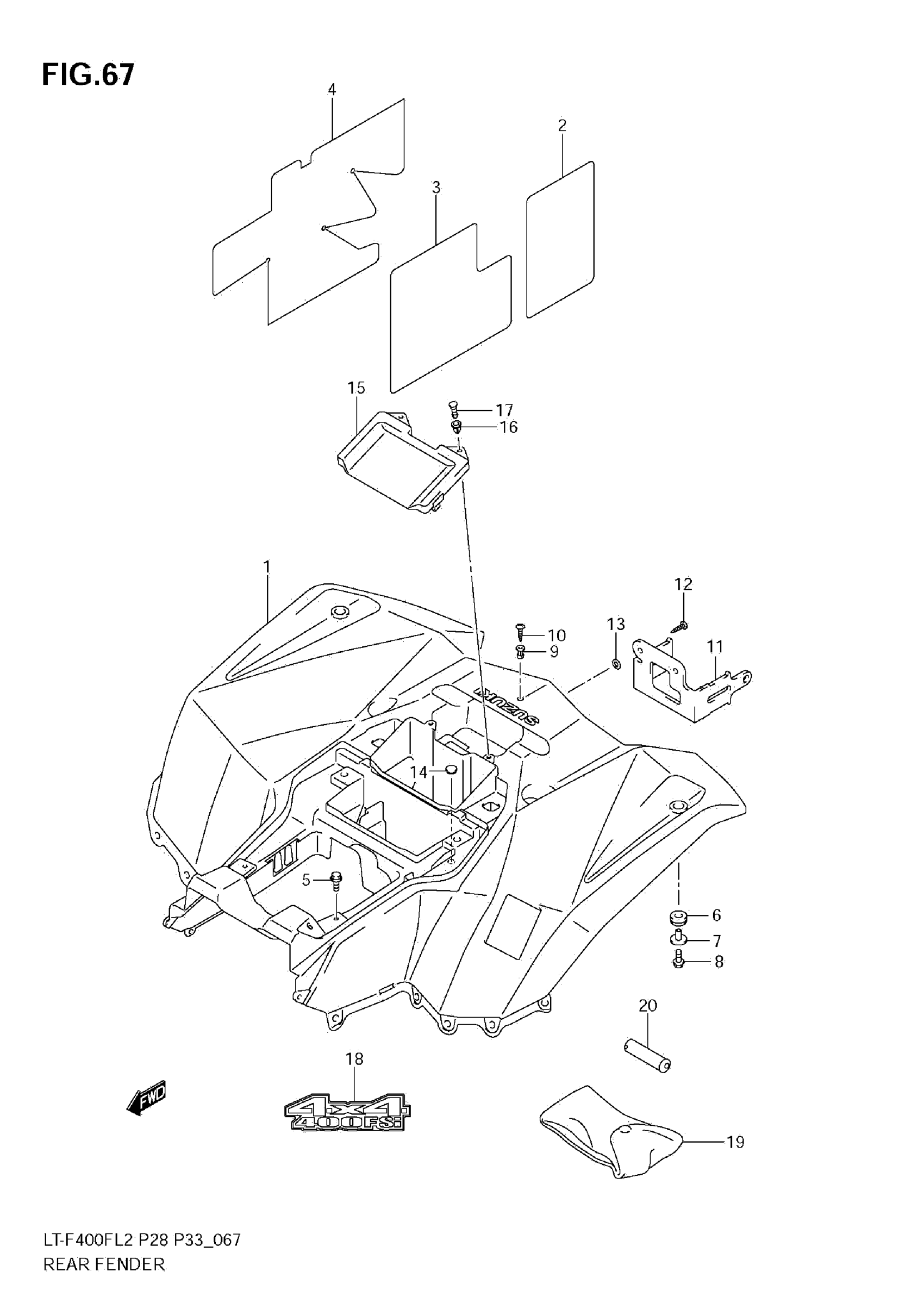

Suzuki LT-F400FL2 (2012) REAR FENDER (LT-F400F E33) Diagram

#

Description
Price

1

FENDER,REAR (RED) This part replaces 63111-27H02-YT9.

63111-27H03-YT9

$340.22

1

FENDER,REAR (GREEN) This part replaces 63111-27H02-YLG.

63111-27H03-YLG

$328.27

1

FENDER, REAR (BLUE)

63111-27H02-YPW

Unavailable

2

SHIELD, REAR FENDER

63122-27H10

$14.47

3

SHIELD, REAR FENDER This part replaces 63123-27H10.

63123-27H20

$15.82

4

SHIELD, REAR FENDER

63124-27H10

$14.22

5

BOLT (6X16)

09116-06006

$1.86

6

CUSHION (11.5X32X12.2)

09320-11021

$4.17

7

WASHER

09169-06074

$7.95

8

BOLT

01550-0625A

$1.97

9

NUT

09159-05019

$7.14

10

SCREW

02142-0520B

$1.78

11

PLATE,CDI UNIT

47413-27H00

$10.96

12

RIVET

09229-04020

$2.66

13

WASHER

08322-0104A

$1.91

14

CAP

09250-08018

$3.34

15

COVER,REAR FENDER

63112-27H00

$35.80

16

CLIP

09409-08329

$2.40

17

GROMMET

09409-08330

$2.38

18

EMBLEM

68171-27HG0-JLJ

$19.73

19

TOOL ASSY This part replaces 09800-21055.

09800-21102

$20.21

20

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92
