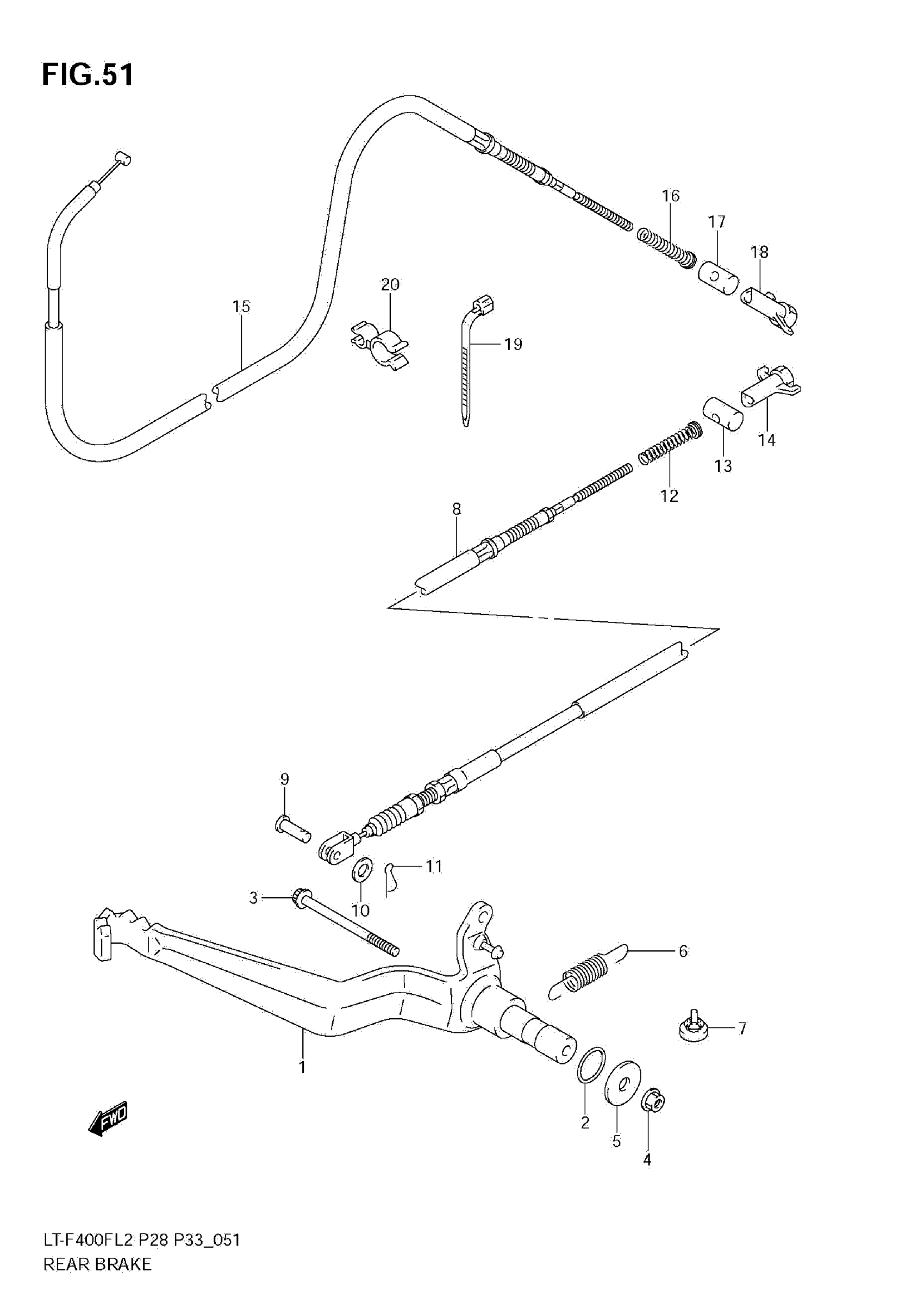

Suzuki LT-F400FL2 (2012) REAR BRAKE Diagram

#

Description
Price

1

PEDAL,BRAKE

43110-27H00

$58.30

2

O RING (D:2.4,ID:16.8)

09280-17002

$5.11

3

BOLT

01550-0685A

Unavailable

4

NUT

08319-3106A

$2.03

5

WASHER (6.5X28X1.6)

09160-06136

$1.84

6

SPRING

09443-12019

$4.50

7

CUSHION This part replaces 09321-08022.

09321-08026

$1.94

8

CABLE,REAR BRAKE

58510-27H10

$56.02

9

PIN

09200-05001

$1.65

10

WASHER

08322-0106B

$2.26

11

CLIP

09385-06012

$1.89

12

SPRING

09440-08042

$2.92

13

PIN

09209-13006

$5.24

14

NUT

09150-06015

$3.56

15

CABLE,PARKING BRAKE This part replaces 58810-27H10.

58810-27H11

$57.80

16

SPRING

09440-08042

$2.92

17

PIN

09209-13006

$5.24

18

NUT

09150-06015

$3.56

19

CLAMP (L:125)

09407-14403

$2.26

20

CLIP

09408-00056

$3.08
