Description

Price

1

HUB,REAR,L

64110-38F30

$110.00

2

RIM, REAR WHEEL (12X7.5AT) (BLACK)

65310-38F40-291

$182.40

3

NUT

09140-10021

$2.03

4

WASHER,HUB

64723-38F00

$9.13

5

NUT

09141-20008

$18.05

6

COTTER PIN

04111-4035A

$1.49

7

CAP,WHEEL CENTER

54725-09F01

$9.95

8

AXLE,REAR,L

64712-38F20

$112.88

9

TIRE,REAR (AT25X10-12) | AT25X10-12 This part replaces 65110-38FC0.

65110-31G30

$296.43

10

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

11

PLATE,TRAILER TOW

95210-38F10

$43.63

12

BOLT (10X35)

09103-10422

$3.60

13

PROTECTOR,FINAL CASE This part replaces 61391-38F10.

61391-38F11

$66.10

14

BOLT, FRONT

61393-09F10

$7.13

15

BOLT (6X16.5)

09111-06095

$2.12

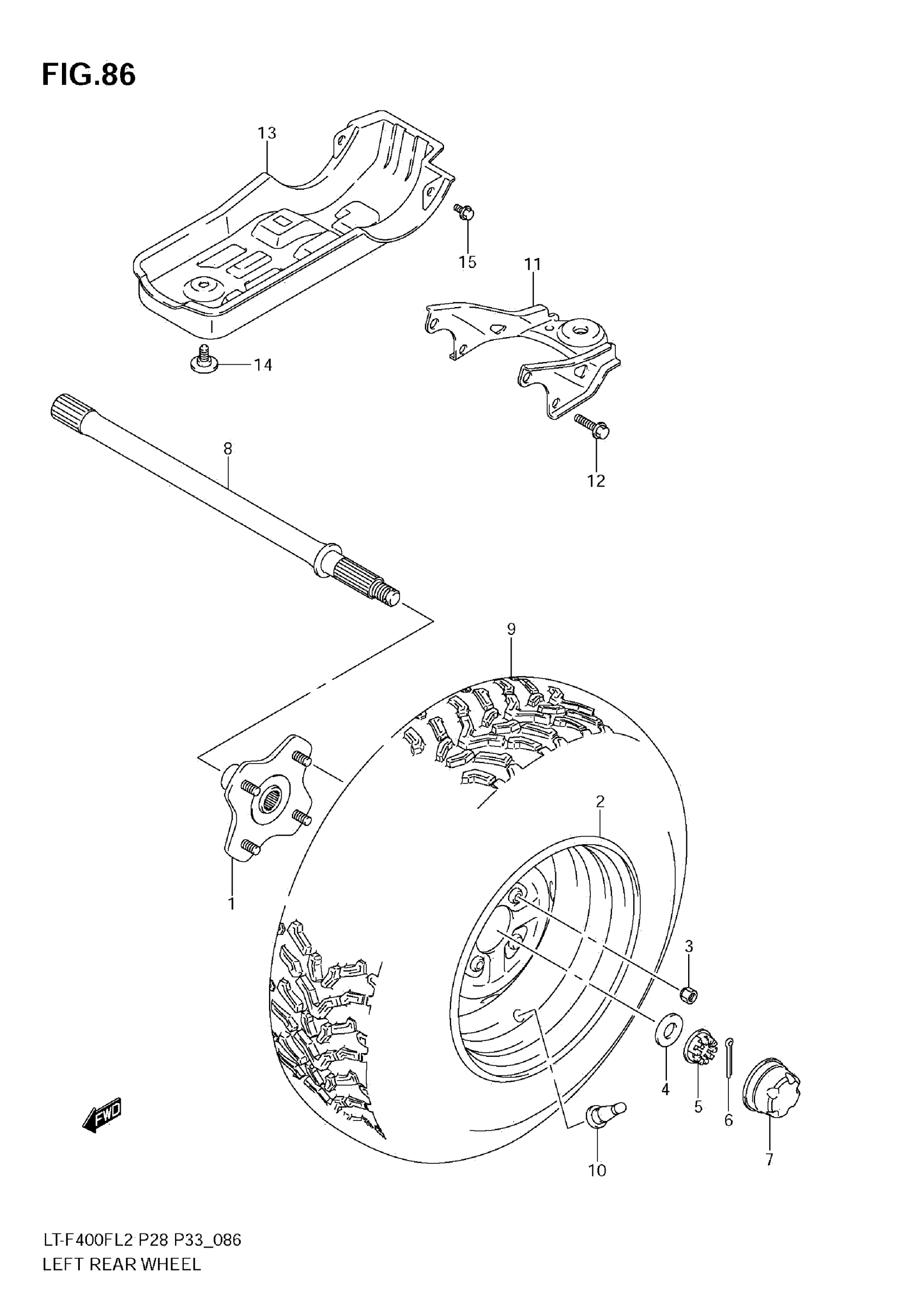

Suzuki LT-F400FL2 (2012) LEFT REAR WHEEL Diagram
