Description

Price

1

RELAY ASSY,STARTING MOTOR

31800-38G10

$97.31

2

COVER

31861-38G00

$4.88

3

FUSE (30A)

09481-30501

$2.32

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-20H00

$318.90

6

BOLT

02162-0625B

$2.10

7

COIL ASSY,IGNITION This part replaces 33410-26G00.

33410-26G01

$119.72

8

SPACER (6X12X10)

09180-06095

$3.93

9

BOLT

01547-0630B

$2.73

10

CAP, SPARK PLUG

33510-43010

$24.99

11

SEAL, SPARK PLUG

33541-44D00

$5.30

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

13

CONTROL UNIT,FI This part replaces 32920-27H11.

32920-27H12

$458.68

14

HOLDER, FI CONTROL UNIT

32980-27H10

$12.88

15

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

16

BRACKET,FUEL CUT SENSOR

33961-27H00

Unavailable

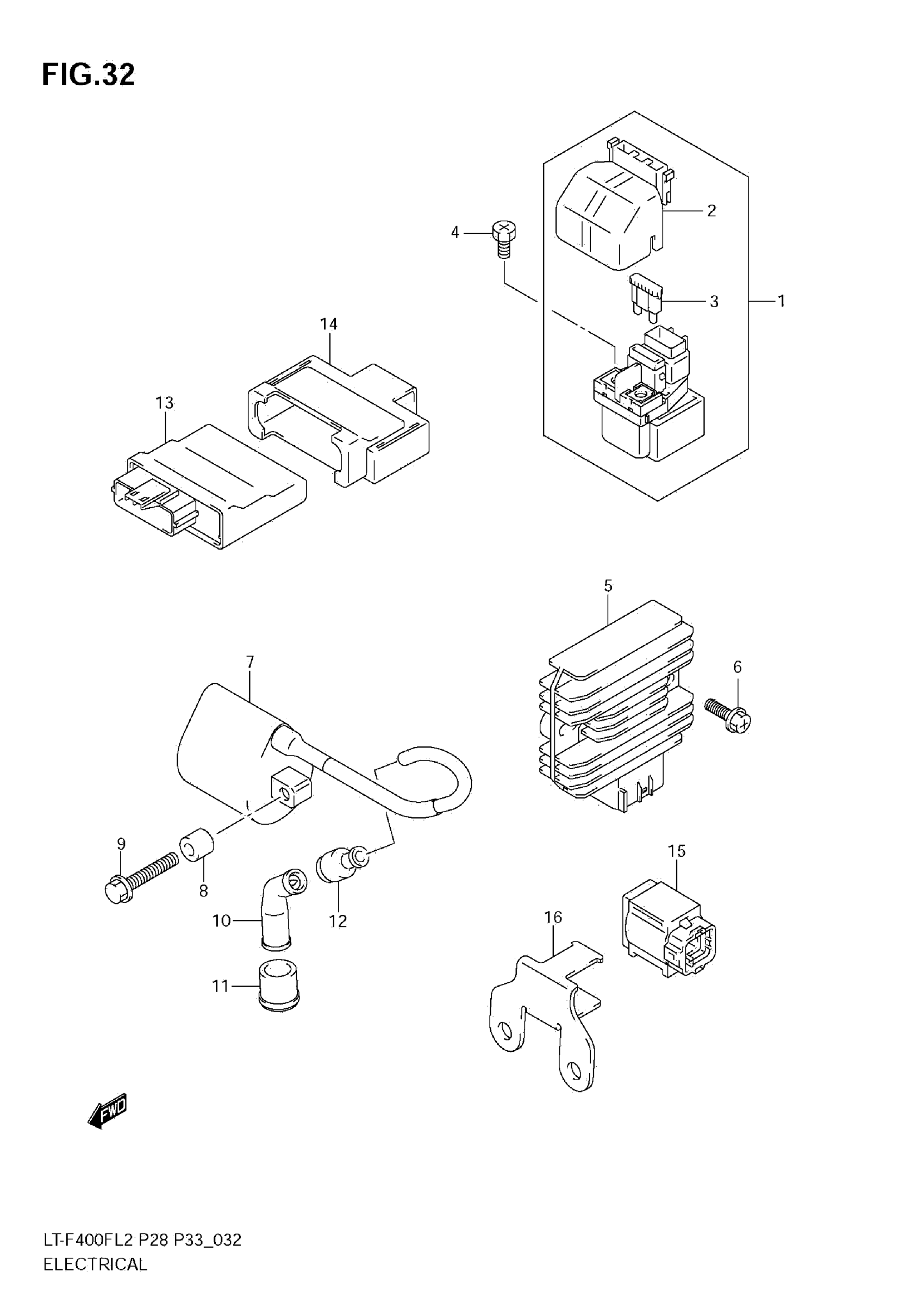

Suzuki LT-F400FL2 (2012) ELECTRICAL Diagram

RELAY ASSY,STARTING MOTOR

COVER

FUSE (30A)

SCREW (6X8)

RECTIFIER ASSY

BOLT

COIL ASSY,IGNITION This part replaces 33410-26G00.

SPACER (6X12X10)

BOLT

CAP, SPARK PLUG

SEAL, SPARK PLUG

SEAL,HIGH TENSION CORD (SIDE)

CONTROL UNIT,FI This part replaces 32920-27H11.

HOLDER, FI CONTROL UNIT

SENSOR ASSY,FUEL CUT

BRACKET,FUEL CUT SENSOR
