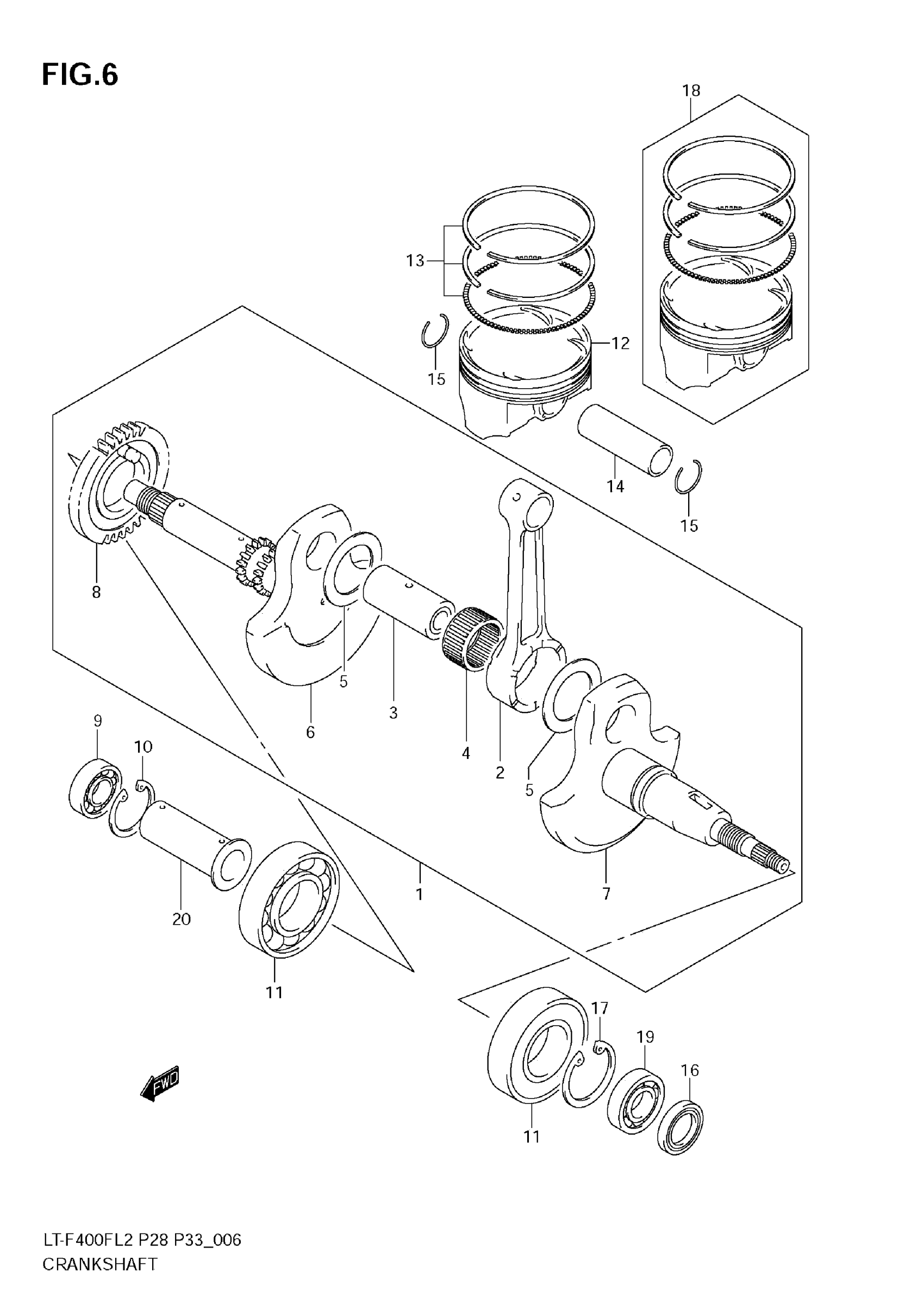

Find the part on the Crankshaft diagram for your 2012 Suzuki LT-F400FL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-F400FL2 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT SET

12200-38861

1
Out of stock

2

ROD, CONNECTING

12161-14D00

1
Out of stock

3

PIN, CRANK

12210-14D03

1
Out of stock

4

BEARING (34X43X22)

09263-34005

1
Out of stock

5

WASHER (34X52X1)

09160-34003

2
Out of stock

6

CRANKSHAFT, RH

12220-38F61

1
Out of stock

7

CRANKSHAFT, LH

12261-38F60

1
Out of stock

8

GEAR, CRANK BALANCER DRIVE

12661-38F01

1
Out of stock

9

BEARING (15X35X11)

09262-15014

1
Out of stock

10

CIRCLIP

08331-41359

1
Out of stock

11

BEARING (35X72X17)

09262-35038

2
Out of stock

12

PISTON

12111-38F21-0F0

1
Out of stock

13

RING SET, PISTON

12140-38F10

1
Out of stock

14

PIN,PISTON

12151-24A00

1
Out of stock

15

CIRCLIP

09381-20004

2
Out of stock

16

OIL SEAL (25X42X6)

09283-25095

1
Out of stock

17

CIRCLIP

08331-41479

1
Out of stock

18

PISTON SET,OS0.5 (OS:0.5) | OPT

12100-38F21-050

1
Out of stock

19

BEARING (25X47X8)

09262-25006

1
Out of stock

20

SPACER,CRANKSHAFT,R

12222-38F50

1
Out of stock
