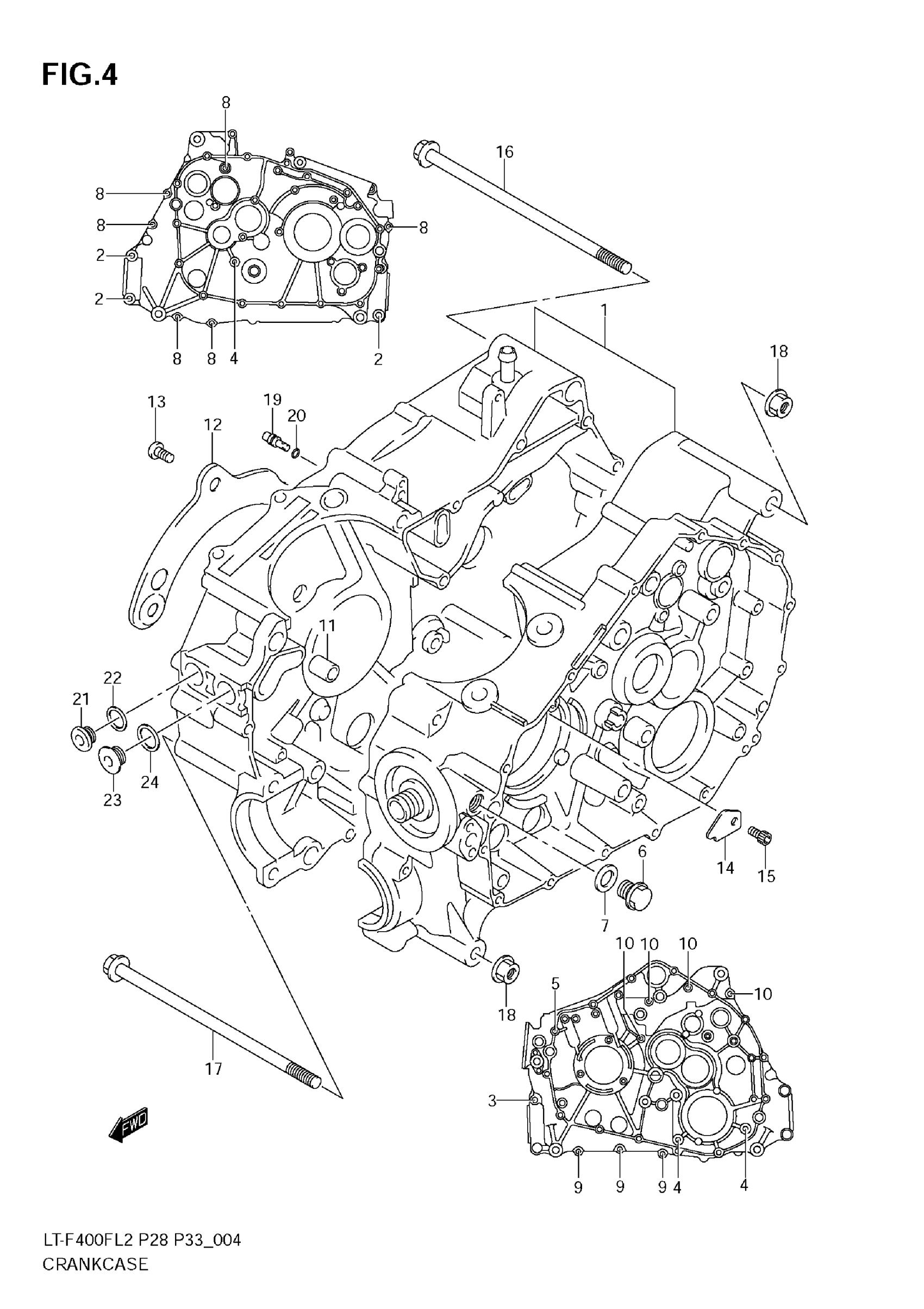

Suzuki LT-F400FL2 (2012) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11302-38852

Unavailable

2

BOLT (8X50)

09103-08081

$4.03

3

BOLT (8X50)

09103-08081

$4.03

4

BOLT (8X85)

09103-08300

Unavailable

5

BOLT (8X60)

09103-08217

$4.03

6

PLUG

09247-14015

$4.83

7

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

8

BOLT

01547-0645A

$2.43

9

BOLT

01547-0645A

$2.43

10

BOLT

01547-0670A

$2.80

11

PIN

04211-13189

$2.19

12

PLATE,OIL GUIDE

11317-38F10

Unavailable

13

SCREW

02112-0612A

$1.43

14

PLATE,OIL GUIDE,L

11323-38F00

Unavailable

15

BOLT

02112-0612A

$1.43

16

BOLT (10X195)

09103-10118

$11.91

17

BOLT (10X180)

11611-03G00

$24.82

18

NUT

09159-10115

$3.21

19

JET, OIL GALLERY

09493-32006

$18.33

20

O RING (D:1.2,ID:4)

09280-04004

$1.76

21

PLUG

09248-16012

$4.19

22

GASKET (16X22X2)

09168-16002

$1.89

23

PLUG

09248-18011

$7.98

24

GASKET (18X24X2)

09168-18009

$4.20
