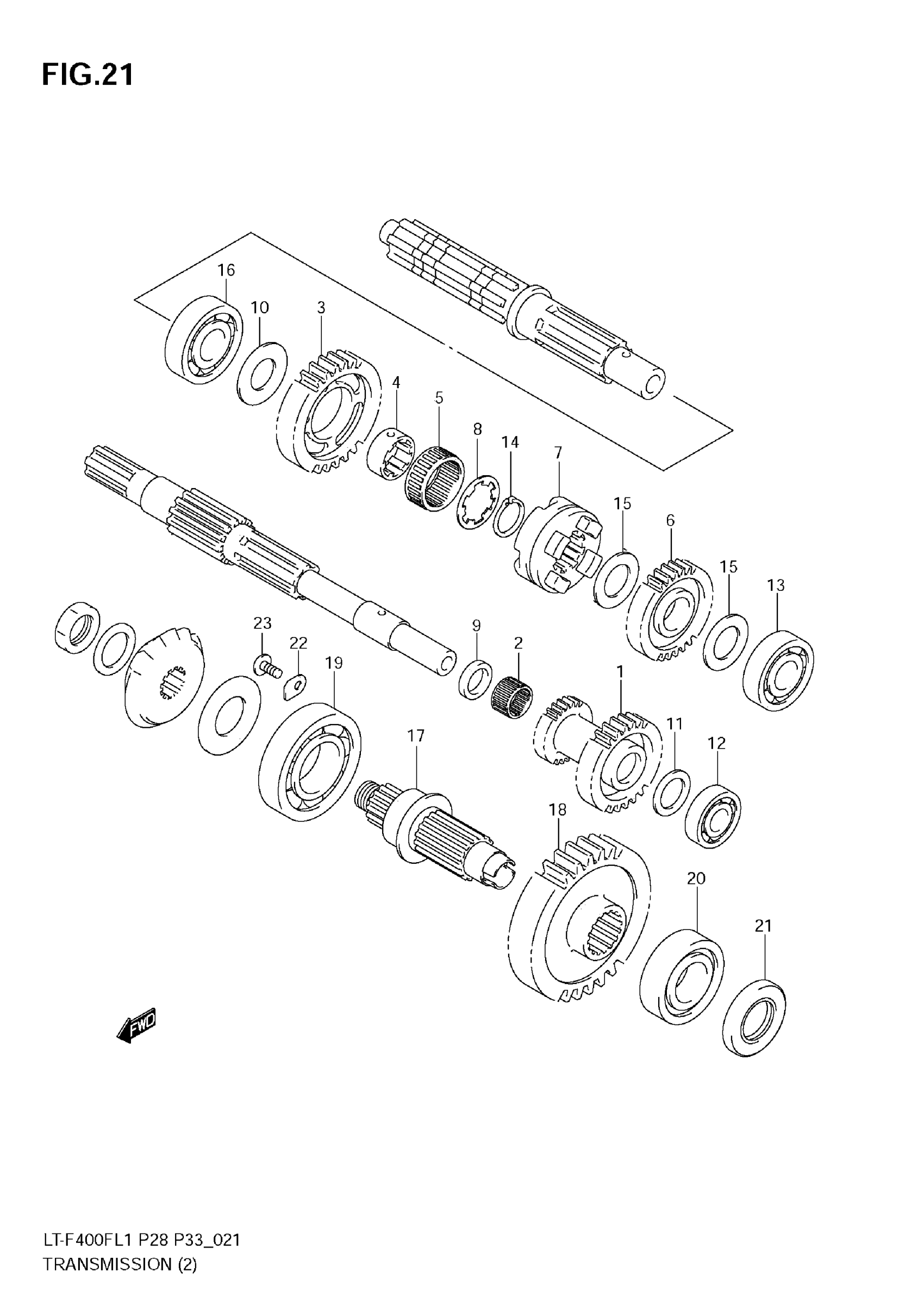

Suzuki LT-F400FL1 (2011) TRANSMISSION (2) Diagram

#

Description
Price

1

GEAR, SUB T/M IDLE | NT:19/13

29150-38F80

$210.63

2

BEARING (17X21X12.8)

09263-17001

$23.70

3

GEAR, SUB T/M DRIVE NO.1 | NT:27

29211-38F80

Unavailable

4

BUSH,SUB T/M DRIVE NO.1 GEAR

29215-38F80

$36.98

5

BEARING (30X35X16)

09263-30056

$37.13

6

GEAR, SUB T/M DRIVE NO.2 | NT:21

29220-38F50

$145.27

7

DOG,SUB T/M SELECT SLIDING

29231-38F80

Unavailable

8

WASHER

09167-25017

$4.20

9

WASHER (17X24X4.5)

09180-17076

$10.42

10

WASHER (25X40X1)

09181-25251

$1.26

11

WASHER (15X26X1.0)

09181-15195

$2.59

12

BEARING This part replaces 09262-15022.

09262-15062

$19.90

13

BEARING (20X47X14.0)

09262-20139

$48.87

14

SNAP RING

09380-25003

$2.80

15

WASHER

08211-20301

$2.97

16

BEARING (25X52X14)

09262-25124

$35.35

17

SHAFT,SUB T/M OUTPUT

29121-38F60

Unavailable

18

GEAR, SUB T/M DRIVEN | NT:35

29311-38F60

Unavailable

19

BEARING (35X72X17.0)

09262-35038

$42.19

20

BEARING (20X52X15.0)

09262-25136

$35.65

21

SEAL,OIL (25X45X5)

09283-25076

$9.33

22

RETAINER, SEC DRIVE SFT

24741-21A00

$2.80

23

SCREW (6X12)

09125-06110

$2.13
