2011 Suzuki LT-F400FL1 Clutch Diagram

← All diagrams

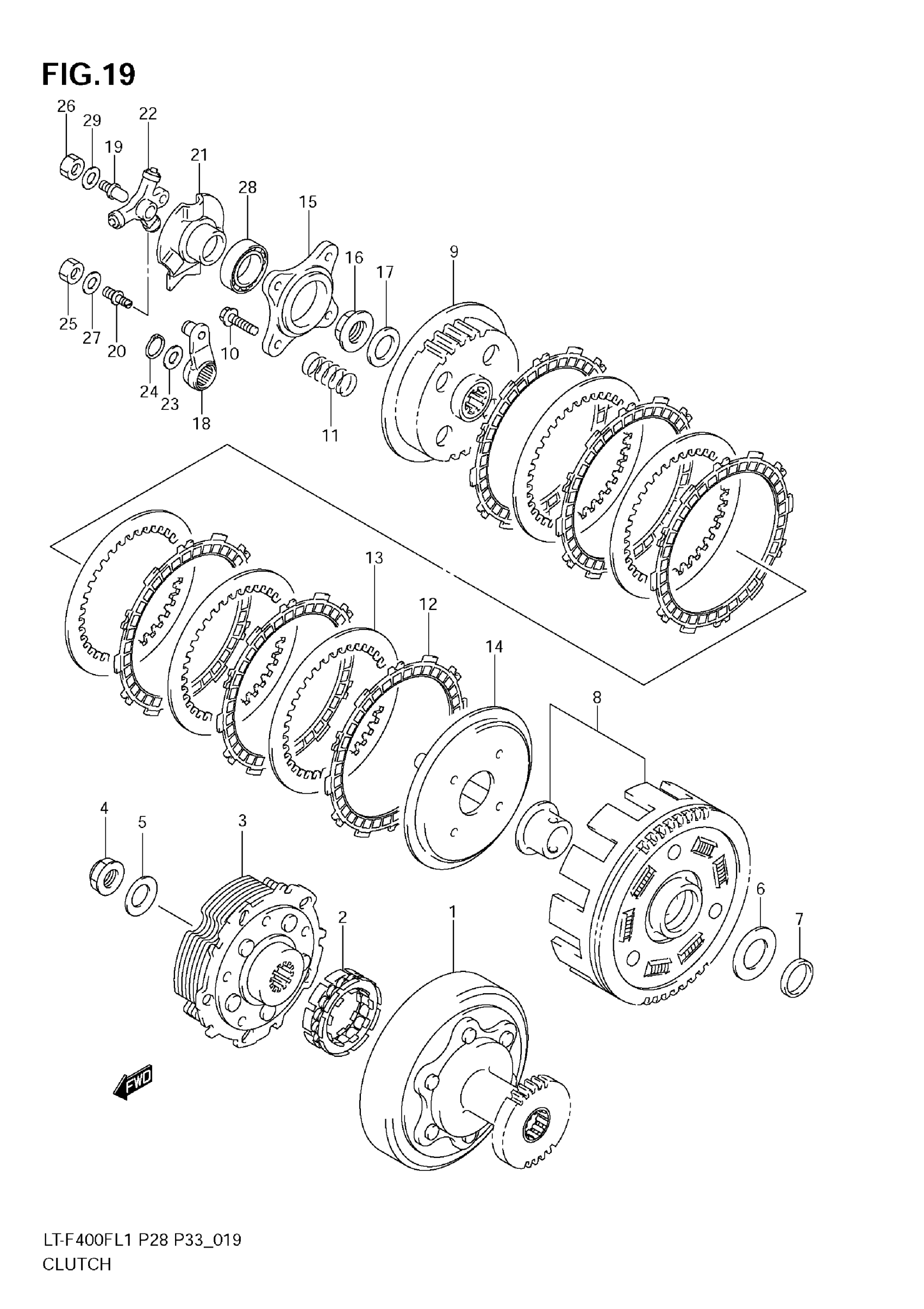

Find the part on the Clutch diagram for your 2011 Suzuki LT-F400FL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki LT-F400FL1 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, STARTER CLUTCH

21120-27H50

1
Out of stock

2

CLUTCH,PRI DRIVE ONE WAY

21273-44D00

1
Out of stock

3

SHOE,STARTER CLUTCH

21500-27H50

1
Out of stock

4

NUT,STARTER CLUTCH SHOE

21518-44D00

1
Out of stock

5

WASHER

09164-20007

1
Out of stock

6

WASHER (22X28X3.5)

09180-22045

1
Out of stock

7

WASHER

08211-22423

1
Out of stock

8

GEAR ASSY, PRIMARY DRIVEN

21200-38850

1
Out of stock

9

HUB, CLUTCH SLEEVE

21411-44D00

1
Out of stock

10

BOLT (6X25)

09103-06099

4
Out of stock

11

SPRING,CLUTCH

21413-38F50

4
Out of stock

12

PLATE, CLUTCH DRIVE

21441-44D00

6
Out of stock

13

PLATE,CLUTCH DRIVEN (T:1.6)

21451-44D00

5
Out of stock

14

DISK,CLUTCH PRESSURE

21462-44D00

1
Out of stock

15

PLATE, CLUTCH RELEASE

21465-44D00

1
Out of stock

16

NUT,CLUTCH SLEEVE HUB

21414-44D00

1
Out of stock

17

WASHER

09164-20007

1
Out of stock

18

ARM,CLUTCH RELEASE

23220-03G50

1
Out of stock

19

BOLT, CLUTCH RLSE NO.1

23223-44D11

1
Out of stock

20

BOLT, CLUTCH RLSE NO.2

23224-44D00

1
Out of stock

21

GUIDE,CL RELEASE ROLLER

23230-03G50

1
Out of stock

22

ROLLER ASSY,CLUTCH RELEASE

23250-03G50

1
Out of stock

23

WASHER

08211-10242

1
Out of stock

24

CIRCLIP

08331-3114A

1
Out of stock

25

NUT

09140-06023

1
Out of stock

26

NUT

09140-08017

1
Out of stock

27

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06079.

09160-06052

1
Out of stock

28

BEARING

08113-69050

1
Out of stock

29

WASHER (8X20X1)

09160-08103

1
Out of stock
